From prototyping to mass production, we offer high quality, low prices, and short delivery times. We will respond to various requests for precision glass processing. |
SUGITOH OPTICAL (THAILAND) CO., LTD. is located in Mahachai City, Samut
Sakhon Province, Thailand.
We started operations under Sugitoh Co., Ltd. in Japan, and have been producing many products by making use of our many years of technology and experience.
We provide high-precision products at low prices with short delivery times
not only in Thailand, but also in various countries such as Japan and Germany.
We are pleased offer you our quotation. |
|
 |

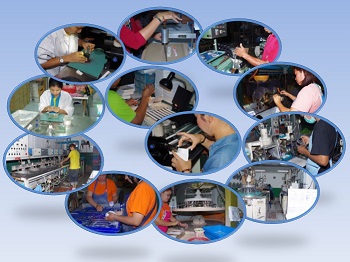

Processing Technology
•Lapping(Flat Surface Polishing)
Dia.5 to 200mm
Surface quality:N2 AS0.5
•Spherical Polishing
Dia.3 to 200mm
We can produce based on the specifications (R, surface quality, eccentric
grinding/polishing)
•Production of PL Filters
Circular polarization, linear polarization, and other films
Dia.10 to 200(mm) / Dimension: upto 200x200(mm)
•Glass Cutting
Cutting glasses in various shapes
•Glass Fiber processing
Please ask us for the details.
•Holes
Making various sizes of holes on the glass
•AR Coating
Single layer coating
•Balsam
Cementing lenses and glasses after coating.
|
The list of Owned Machines(Revised：2020/03/19)
The list of Owned Machines' images(Revised：2020/03/19) |
|
|
 |
Manufacturing Item
•Glass Window
A glass window used to protect the camera lens. (Soda plate, B-270, quartz glass, Tempax, Pyrex and other glass materials are available.)
•Monitor Glass for Coating Machine
Monitor glass for vacuum deposition machine
Monitor glass used as a consumable for vacuum deposition machines.
•Large Lens
Supports processing and polishing up to Dia.200
Chamfering, cutting, etc.
•Drilling
Glass that has been perforated
•Donut shaped glass plate
Glass that has been performated in center
Max. Dia. 200
Min. Dia. 150
•Polarizing Filter
Polarizing filter, Circular polarizing filter
We manufacture various types of polarizing filters for cameras.
Processing outer diameter: 10 to 200
Processing dimensions: 10x10 to 200x200
•PCX Lens
It has a positive focal length and is mainly used for image magnification
and light-gathering applications.
Processing outer diameter: 3 to 200
Focal length: f=10-1000mm
•PCV Lenx
It has a negative focal length and is used for image
reduction and divergence.
Processing outer diameter: 5 to 200
Focal length: f=-10 to -400mm
•BCX Lens
It has a positive focal point and is mainly used for image magnification
and light-gathering applications.
Processing outer diameter: Dia.3 to Dia.200
Focal length: f=3-300mm
•BCV Lens
It has a negative focal length, shrinking the image or diverging
the rays.
Processing outer diameter: 5 to 200
Focal length: f=-5 to -100mm
•Achromatic Lens
A lens that corrects chromatic and spherical aberrations by combining two concave and convex lenses with different refractive indices.
Processing outer diameter: 15 to 20/ 5 to 120
Focal length: f=5-100mm/10-1000mm |
|
