List of Cameras

BFS-U3-50S5C-C・STC-MC133USB・STC-MC152USB・STC-MC202USB・TS-CA-500M・WAT-01U2・STC-MCE132U3V・STC-MCS163U3V set・SS500-MC・TS-YCU-500T・WAT-250D2・WAT-902B

■	We selected suitable Cameras for Sugitoh Macro Zoom Lenses
	In Addition to Original Cameras, we selected Cameras which bring out the abilities of Lenses.
■	Zoom Microscope
	If you mount Macro Zoom Lens on Camera, it becomes full-fledged Microscope.
■	You can select Camera according to usage
	Please feel free to ask us if you are not sure which camera you should select.
■	List of Camera
	USB2.0 CCD camera
	USB2.0 CMOS camera
	USB3.0 CMOS camera
	HDMI/Wifi CMOS camera
	Monitor Camera
	Composite analog camera

Output USB2.0 CCD CAMERA

■STC-MC133USB set

1/3" Color CCD/USB2.0 Output/CS Mount/1280 x 960pixel

●1/3" 1.2M Pixel(Quad-VGA)Progressive CCD ●Outer size of 28mm x 28mm Ultra Small Case Type ●Original Viewing Software / Simple Measuring Software / SDK bundled ●2m USB2.0 Cable with Lock screw bundled ●Supported OS:WindowsXP,Vista,7,8,10 32bit/64bit

Image Sensor Elements	1/3" Quad-VGA Progressive CCD
Max. Output size	1280(H) x 960(V) Pixel
Minimum Illumination	11Lux F1.2
Max. Frame Rate	22.4 fps
Electronic Shutter	1/36.818.182 to 1/22.40 seconds
White Balance	Auto/Manual/One-shot
I/O	USB2.0 High Speed USB miniB Type Connector
Outer size	28(W) x 28(H) x 37(D)mm

OS：WindowsXP,Vista,7,8,10　32bit/64bit

* Lens, C-Mount Adapter are optional.

Obsolete

■STC-MC152USB set

1/2" Color CCD/USB2.0 Output/C Mount/1360 x 1024pixel

●1/2" SXGA Progressive Color CCD ●Outer size of 28mm x 28mm Ultra Small Case Type ●Original Viewing Software / Simple Measuring Software / SDK bundled ●2m USB 2.0 Cable with Lock screw bundled ●Supported OS:WindowsXP,Vista,7,8,10 32bit/64bit

Image Sensor Elements	1/2" SXGA Progressive Color CCD
Max. Output size	1360(H) x 1024(V) Pixel
Minimum Illumination	18Lux F1.2
Max. Frame Rate	19.26 fps
Electronic Shutter	1/36.818.182 to 1/22.40 seconds
White Balance	Auto/Manual/One-shot
I/O	USB2.0 High Speed USB miniB Type Connector
Outer size	28(W) x 28(H) x 42(D)mm

OS:WindowsXP,Vista,7,8,10 32bit/64bit

* Lens is optional.

Price: JPY100,000(w/o tax)
JPY110,000( w / tax)
Obsolete once our stock will be over

■STC-MC202USB set

1/1.8" Color CCD/USB2.0 Output/C Mount/1600 x 1200pixel

●1/1.8" SXGA Progressive Color CCD ●Outer size of 28mm x 28mm Ultra Small Case Type ●Original Viewing Software / Simple Measuring Software / SDK bundled ●2m USB 2.0 Cable with Lock screw bundled ●Supported OS:WindowsXP,Vista,7,8,10 32bit/64bit

Image Sensor Elements	1/1.8" SXGA Progressive Color CCD
Max. Output size	1600(H) x 1200(V) Pixel
Minimum Illumination	7.7Lux F1.2
Max. Frame Rate	15.32 fps
Electronic Shutter	1/36.818.182 to 1/15.32 seconds
White Balance	Auto/Manual/One-shot
I/O	USB2.0 High Speed USB miniB Type Connector
Outer size	28(W) x 28(H) x 42(D)mm

OS:WindowsXP,Vista,7,8,10 32bit/64bit

* Lens is optional.

Obsolete

Output USB2.0 CMOS Camera

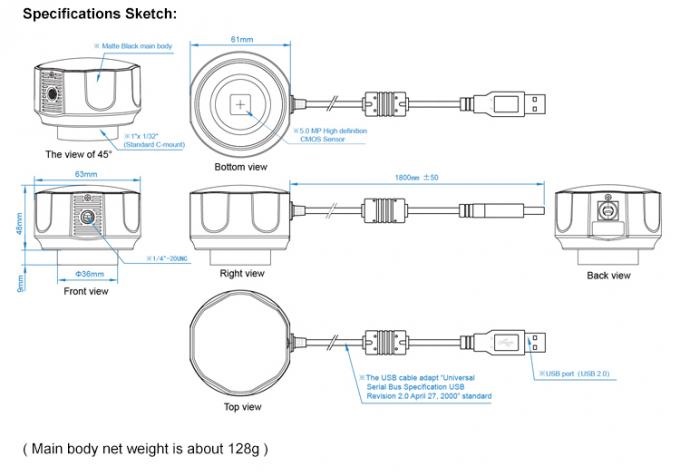

■TS-CA-500M

1/2.5" Color CMOS／USB2.0 Output／C Mount / 2592×1944pixel

●1/2.5" Color CMOS ●Outer Size 61mm x 63mm x 54mm with Round shape ●Viewer Software with simple measuring function●USB2.0 cable1800mm bundled●Supported OS：WindowsXp,7,8,8.1,10, 11　32bit/64bit

Image Sensor Elements	1/2.5" Color CMOS
Max. Output size	2592(H)×1944(V)Pixel
Pixel size	2.2μm x 2.2μm
Max. Frame Rate	10 fps @ 2592x1944 15 fps @ 1920x1080, 1600x1200 40 fps @ 1280x960, 1280x720, 1024,768, 800x600, 640x480
White Balance	Auto / Manual
Capture mode	Photo・Video（MJPG＆AVI)
I/O	USB2.0 High Speed USB
Outer Size	61(W) X 54(H) X 63(D)mm

※Lens is optional

Operating environment:

OS：WindowsXp,7,8,8.1,10,11　32bit/64bit
CPU:2nd Generation Intel Core 2.8GHz or higher
Memory： Recommended ２G or more
USB port：　USB2.0 high speed port or more
Monitor：17" or more

Once current stock will be over, the price will be changed as below
Price: JPY85,000->JPY95,000(w/o tax)
JPY93,500->JPY104,500( w / tax)

■WAT-01U2

1/2.8 inch Color CMOS／USB2.0 Output／CS mount／Horizontal resolution 680 TV lines

●USB Video Class correspondes ●USB bass power correspond ●Viewing software allows you to setting and shooting the image.

Sensor size	1/2.8 inch CMOS imaging sensor
Max. Output size	1920(H)×1080(V)Pixel
Min. subject illuminance	0.25lx (F1.4, 1/30s)
Max. frame rate	30 fps
Fixed shutter	1/15、1/30、1/60、1/120、1/250、1/500、 1/1000、1/2000、1/4000、1/8000 秒
Shutter speed	EI（1/60～1/100,000）、OFF、FL
Electrical Iris	1/30 ～1/8000 秒 (when using slow shutter: 1/15 ～1/8000 second)
AGC	AUTO:0 ～ 42dB、Manual:0 ～ 24dB (25 levels)

Recommended system:Intel® CoreTM i series or more
System memory: Over 2GB
OS：WindowsXp,Vista,7,8

* Lens, C-Mount Adapter are optional.

Price：RFQ

Output USB3.0 CMOS Camera

■BFS-U3-50S5C-C

2/3" Color CMOS/ USB3.1 Output / C-mount / 2448×2048pixel

●2/3 inch Color CMOS installed ●Dimension: 29mm x 29mm x 30mm ●Comes with Viewer Software●USB3.0 cable is optional

Image Sensor Elements	2/3" Color CMOS
Max. Output Size	2448(H)×2048(V)Pixel
Pixel Size	3.45μm x 3.45μm
Max. Frame Rate	35 fps
Image Output	USB3.1 Gen 1
Image Sensor	Sony IMX264
Mount Size I/O	C mount
Outer Size	29(W) X 29(H) X 30(D)mm

動作環境：

OS：WindowsXp,7,8,8.1,10　32bit/64bit
CPU:第二世代Intel Core 2.8GHz又はそれ以上
メモリー容量：２G以上
USBポート：　USB2.0高速ポート又はそれ以上
ディスプレイ：17インチ以上推奨

※ Lenses are optional

Price：RFQ

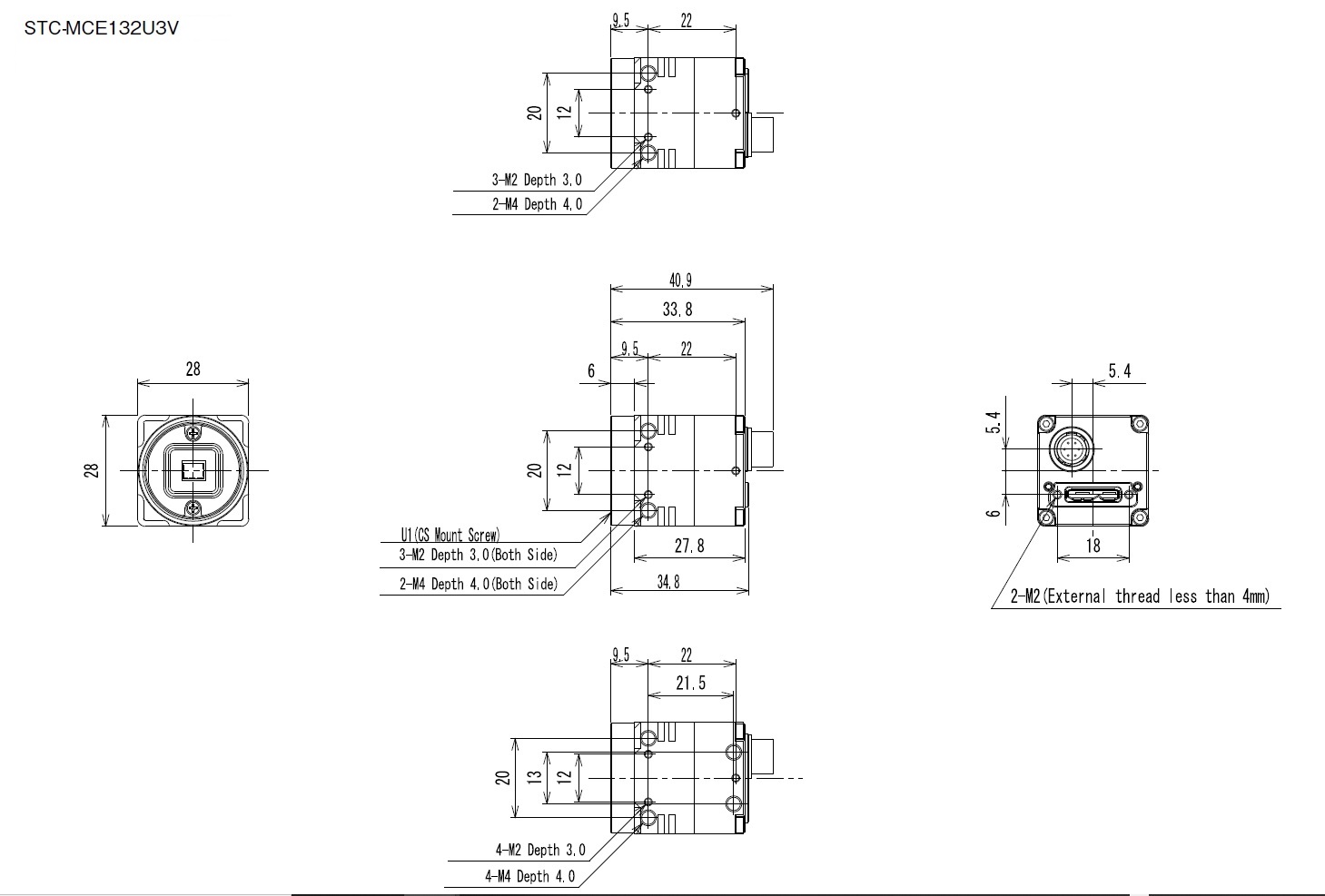

■STC-MCE132U3V set

1/1.8inch　1.3M pixels Progressive Color CMOS /USB3.0Output / CS mount/

●1/1.8 inch 1.3M pixels progressive color CMOS ●Super small case type with size of 28mm x 28mm ●Viewer software with simple measurement function/ SDK attached ●Supported OS:Windows 7 SP1 or later, Windows 8.1, Windows 10 (32bit / 64bit) SET includes USB cable.

Image Sensor	1/1.8" 1.3 M pixels progressive color CMOS (e2V: EV76C560)
Max. Output size	1,280 (H) x 1,024 (V) Pixel
Min. subject illuminance	28.14 Lux at F1.2
Max. frame rate	60 fps　(8 bit/10bit出力時） 55 fps　(RGB 8bits 出力時)
Shutter type	Global / Rolling shutter (Initial value: Global)
White balance	Auto
I/O	USB3.0 Super speed (USB3.0 micro B)
Dimension	28 (W) x 28 (H) x 33.8 (D) mm (without connector)

OS：WindowsWindows 7 SP1 or later, 8.1, 10
32bit/64bit supported

* Lens, C-Mount Adapter are optional.

Price：RFQ

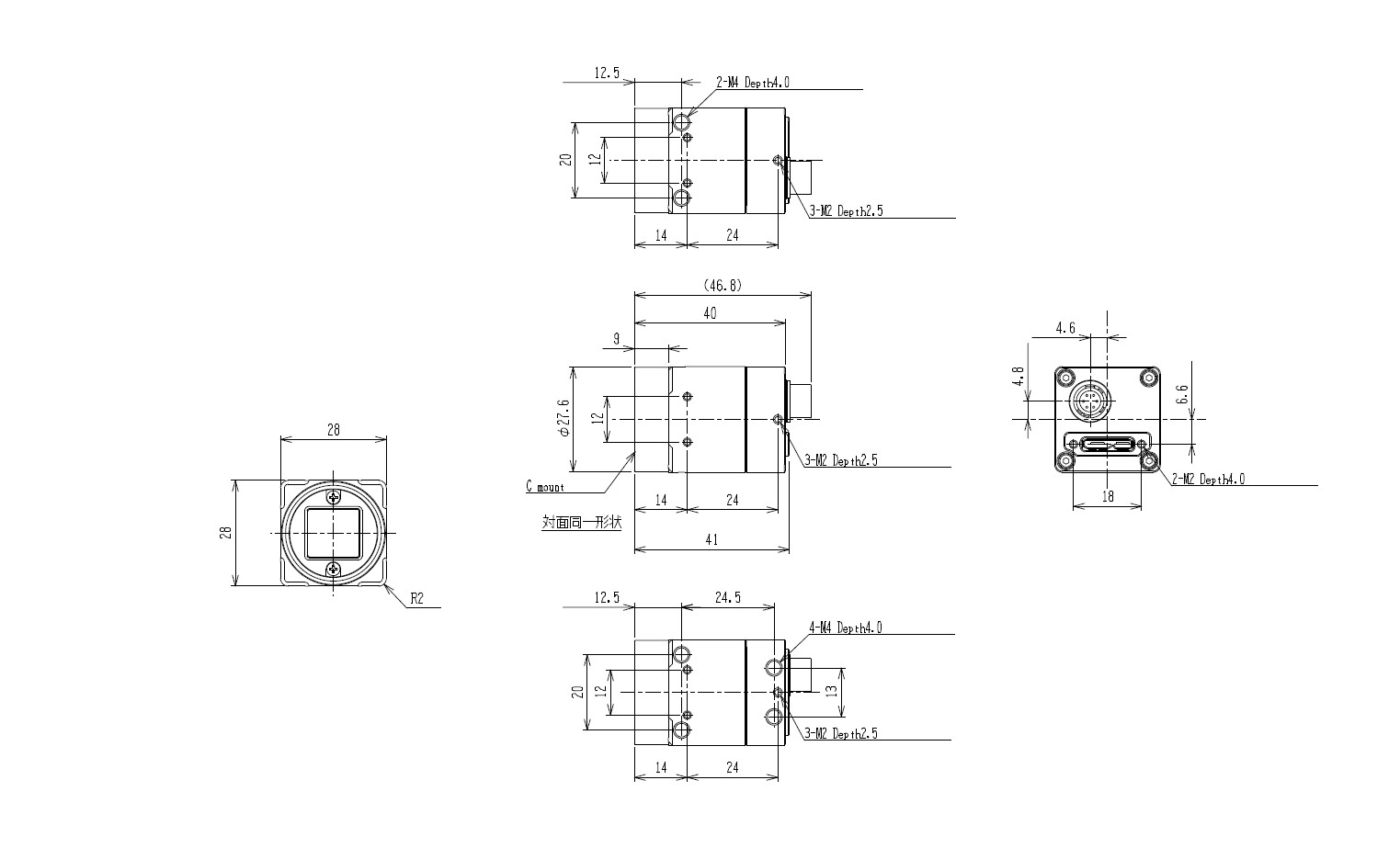

■STC-MCS163U3V set

1/2.9 inch 1.6M pixels color CMOS (SONY: IMX273) /USB3.0 output /CS- mount/

●1/2.9 inch 1.6M pixels color CMOS ●Compact case with outer dimension: 28mm x 28mm●Viewer software with simple measurement function/ SDK attached ●3.5m USB3.0 cable with rock screw attached●Supported OS:Windows 7 SP1 or later, Windows 8.1, Windows 10 (32bit / 64bit)

Image Sensor	1/2.9 inch 1.6M pixels Color CMOS (SONY: IMX273)
Effective pixels	1,440 (H) x 1,080 (V)Pixel
Cell size/ Imaging area	3.45 (H) x 3.45 (V) μm /4.97 (H)mm x 3.72 (V)mm
Max. Frame rate(full scan)	238.0 fps (when frame rate is prioritized)/200.5 fps (when image quality is prioritized)
shutter type	Global
Auto white balance	Compatible
I/O	USB3.0 Super speed (USB3.0 micro B)
External dimensions	28 (W) x 28 (H) x 40 (D) mm (exclude connector)

OS：Windows 7 SP1 or later, 8.1, 10 32bit/64bit compatible

* Lens is optional.

Price：RFQ

HDMI/WiFi CMOS Camera

■SS500-MC

1/2.3" Color CMOS/HDMI/Wi-Fi Output/C Mount/Effective Pixel 2912 x 1640

●1/2.3" 5M CMOS Sensor ●High resolution ●AE ●Exposure Collection ●WDR ●AWB ●Exposure Collection ●Wi-Fi●SD Slot

Image Sensor Elements	1/2.3" 5M CMOS Sensor
Exposure Collection	2912 x 1640 Pixcel
Exposure Collection	･Automatic Setting : 5 stages ･Manual Setting 　Shatter speed : 1/8000 to 1/30s 　Gain : 2 to 36dB
Minimum Illumination	5lx
Gain adjustment	ON(0 to 38dB), OFF(0dB)
AWB	･Automatic Setting ･Manual Setting (3000K-8000K)
Lens Mount	C-Mount
Moving/Static Image System	･Moving Image : MP4(H.264+AAC) ･Static Image : jpg
Outer interface	･Image Output : HDMI(MicroD) ･Data Transfer : USB(MicroB)
SD Slot (microSD)	SD/SDHC/SDXC Max 64GB
Power Supply	Charging-Type Recharge by USB Rechargeable by AC Adapter(option)
Outer size （WxHxD）	54.4mm x 36.7mm x 61.2mm
Weight(Body)	105g

Bundle item : USB Cable, Cap, Warranty Note
* Power Supply, HDMI Cable are option.

obsoleted

Monitor Camera Composite Output

■TS-YCU-500T

1/2.5 inch color／Tablet camera／C mount／Effective pixels 2592×1640 pixel

●1/2.5 inch color ●No PC required since the monitor(Tablet） is included ●Viewer software・Measurable function●AC adapter、microSD card is included●Corresponsive OS：Android 5.1

Effective pixels	5.0 M pixels（2592×1944）
Resolution and frame rate when preview	1024×768　30fps 1600×1200　15fps 2048×1536　15fps
Pixel size	2.2×2.2μm
OS	Android 5.1
CPU	RK3288 Quad-core 1.8GHz
Display	9.7 inch　2048×1536 color LCD　High definition display 5 point multi touch screen
RAM/ROM	2GB DDR3 / 8GB
External terminal:	USB (2 ports), microHDMI, TF memory (micro SD), 3.5 audio
Power	DC-12V/2A
Others	Microphone & speaker are installed
Function	Measurement, still image shooting (Max 16 million), video shooting, image processing
Dimension （W×H×D）	238×51×206mmimage
Weight（Main body）	0.6kg
Accessories	AC adapter、microSD card（4GB）

※Lens is optional

Price：175,000
Price w/tax：192,500

Analog Camera Composite Output

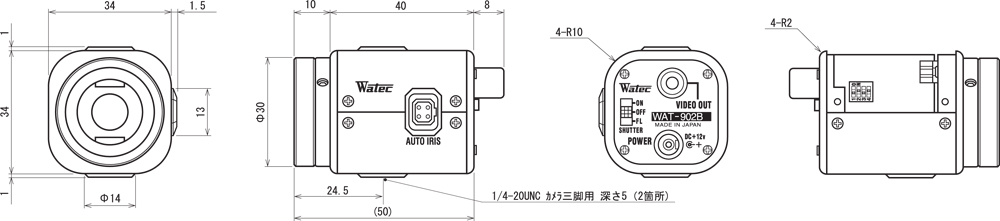

■WAT-902B

1/2" Black and white CCD/Composite Output(EIA/CCIR)/CS Mount/Horizontal resolution570TVL

●Small/Light ●High Sensitivity ●Electric Iris Function ●Flicker-less Function ●AGC Function ●Backlight Correction Function ●Auto Iris Function ●Gamma Correction Function

Effective Pixel	0.38M Pixel
Resolution	570TVL
Minimum Illumination	0.003 lx F1.4
Gain adjustment	ON(HI: 5 to 32dB, LO: 5 to 20dB), OFF : 10dB
S/N ratio	50dB
Shutter Speed	EI(1/60 to 1/100,000), FL, OFF
Backlight Correction Function	On /OFF
Gamma Characteristics	on(γ≒0.45)/OFF(γ=1.0)

* Power Supply, Video Image Cable, Lens, C-Mount Adapter are option.

Price : Please ask

■BNC Cable for Camera

Image Cable With BNC-BNC Plug

●TS-CA-BNC1.5M  Length 1.5m  Yen2,500(w/o tax) / Yen2,750 (w/tax)
●TS-CA-BNC3M  Length 3m  Yen3,000(w/o tax) / Yen3,300(w/tax)
●TS-CA-BNC4M  Length 4m  Yen3,000(w/o tax) / Yen3,300(w/tax)

■Conversion Plug

BNC-RCA(PIN Plug) BNC-BNC RCA(PIN Plug)→BNC

●TS-CA-BNCP1  BNC→PIN Conversion Plug  Yen 1,500(w/o tax) / Yen 1,650 (w/tax)
●TS-CA-BNCP2  BNC Connection Plug  Yen 2,000(w/o tax) / Yen2,200 (w/tax)
●TS-CA-BNCP3  PIN→BNC Plug  Yen 2,500(w/o tax) / Yen2,750 (w/tax)

■AC Power Supply for Camera

Adaptive Model : WAT-250D2 WAT-535EX2 WAT-902B

●TS-AV-9012 AC Adapter 12V With 1.6m Code Price:Please ask

●TS-AV-3M Extension Cable 3m Yen1,500(w/o tax) / Yen1,650 (w/tax)
●TS-AV-4M Extension Cable 4m Yen2,000(w/o tax) / Yen2,200 (w/tax)
