LED lighting

TS-LAX-DOME/TS-LAX-HIA42/TS-LAX-390/TS-LAX-590/TS-KV-100/TS-LAX-02S/TS-LAX-2HFLX /TS-LAX-2HFLXH

	TS-LAX-DOME Dome Type LED Illumination
	■ Q'tys of LED Light : 120pcs ■ Inner Diameter : 30mm/Outer Diameter : 118mm/Weight : 850g ■ WD : 80 to 100 ■ Adapter : 2P ■ AC Power Supply : TS-KV-100(option)
	Price : JPY115,000(w/o tax) 　　　　JPY126,500(w/tax)
*Needed a special Dome Type non-direct Illumination Stand. Not installable to Zoom Lens.

	TS-LAX-HIA42 High-Angle Indirect Type LED Illumination
	■ Q'tys of LED Light : Surface mount 42pcs ■ Inner Diameter : 42mm/Outer Diameter : 102mm/Weight : 800g ■ WD : 70 to 200 ■ Adapter : 2P ■ AC Power Supply : TS-KV-100(option)
	Price : JPY110,000(w/o tax) 　　　　JPY121,000(w/tax)
*Needed a special High-Angle Indirect Type LED Illumination. Mountable on Zoom Lens by Special Adapter if Barrel Diameter is 40mm.

	TS-LAX-390 LED Ring Illumination Dia.3 x 90pcs
	■ Q'tys of LED Light : 90pcs(Dia.3) ■ Inner Diameter : 40mm/Outer Diameter : 74mm/Weight : 100g ■ WD : 75 to 160 ■ Adapter : 2P ■ AC Power Supply : TS-KV-100(option)
	Price : JPY77,500(w/o tax) 　　　　JPY85,250(w/tax)
*Attachable to objective side of TS-95005/006. Applicable up to W.D. of 165mm with standard type LED.

	TS-LAX-590 LED Ring Illumination Dia.5 x 90pcs
	■ Q'tys of LED Light : 90pcs(Dia.5) ■ Inner Diameter : 40(55)mm/Outer Diameter : 89mm/Weight : 120g ■ WD : 130 to 240 ■ Adapter : 2P ■ AC Power Supply : TS-KV-100(option) ■ Bundle TS-LA-AD70 for Inner Dia. of 40mm
	Price : JPY75,000(w/o tax) 　　　　JPY82,500(w/tax)
*Attachable to objective side of TS-95022 by using TS-LA-AD70. Applicable up to W.D. of 240mm with standard type LED.

	TS-KV-100 Power Supply Box for LED Illumination
	■ Applicable Type : TS-LAXDOME/TS-LAXHIA42/TS-LAX-390/TS-LAX590 ■ Outer Size : 59 x 52 x 125mm ■ Weight : 420g
	Price : JPY73,000(w/o tax) 　　　　JPY80,300(w/tax)

	TS-LAX-02S-SET LED light set for the in-line illumination
	■ Q'tys of LED Light : (option)(extra-large) 1pcs ■ Inner Diameter : T=38mm/Outer Diameter : 25mm / Weight : 20g ■ SET contains TS-LAX-02S (LED Illumination for In-Line Illumination) TS-2H02-LC (Dimmer Box) TS-2H02-AC (Original AC Power Supply)
	Price: JPY39,800 (w/o tax) 　　　　JPY43,780(w/tax)
*With LED Illumination for In-Line Illumination, dimmer Box, Original AC Power Supply

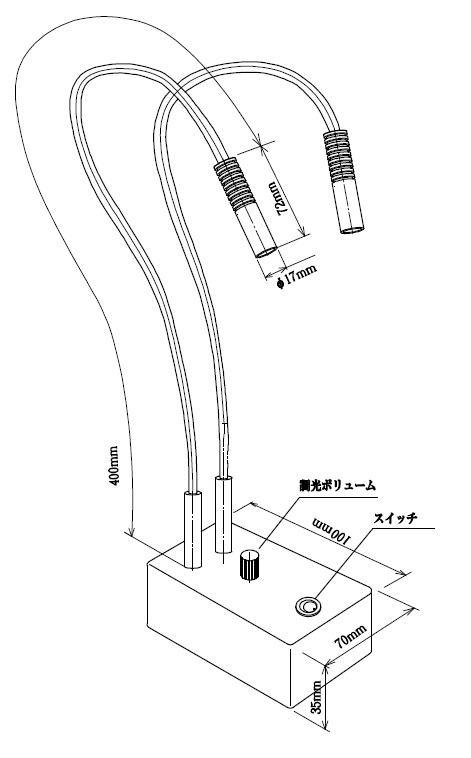

	TS-LAX-2HFLX Double Head Flexible Neck LED light
	■ One Head: Approx 65,000lx (when approx. 5cm away from the object)Typ value ■ With dimming function ■ AC adapter: DC9V / Input AC100V ■ Dimension　External drawing ■ Weight: 970g （exclude AC adapter）
	Price: JPY38,000(w/o tax) 　　　　JPY41,800(w/tax)
※include AC adapter

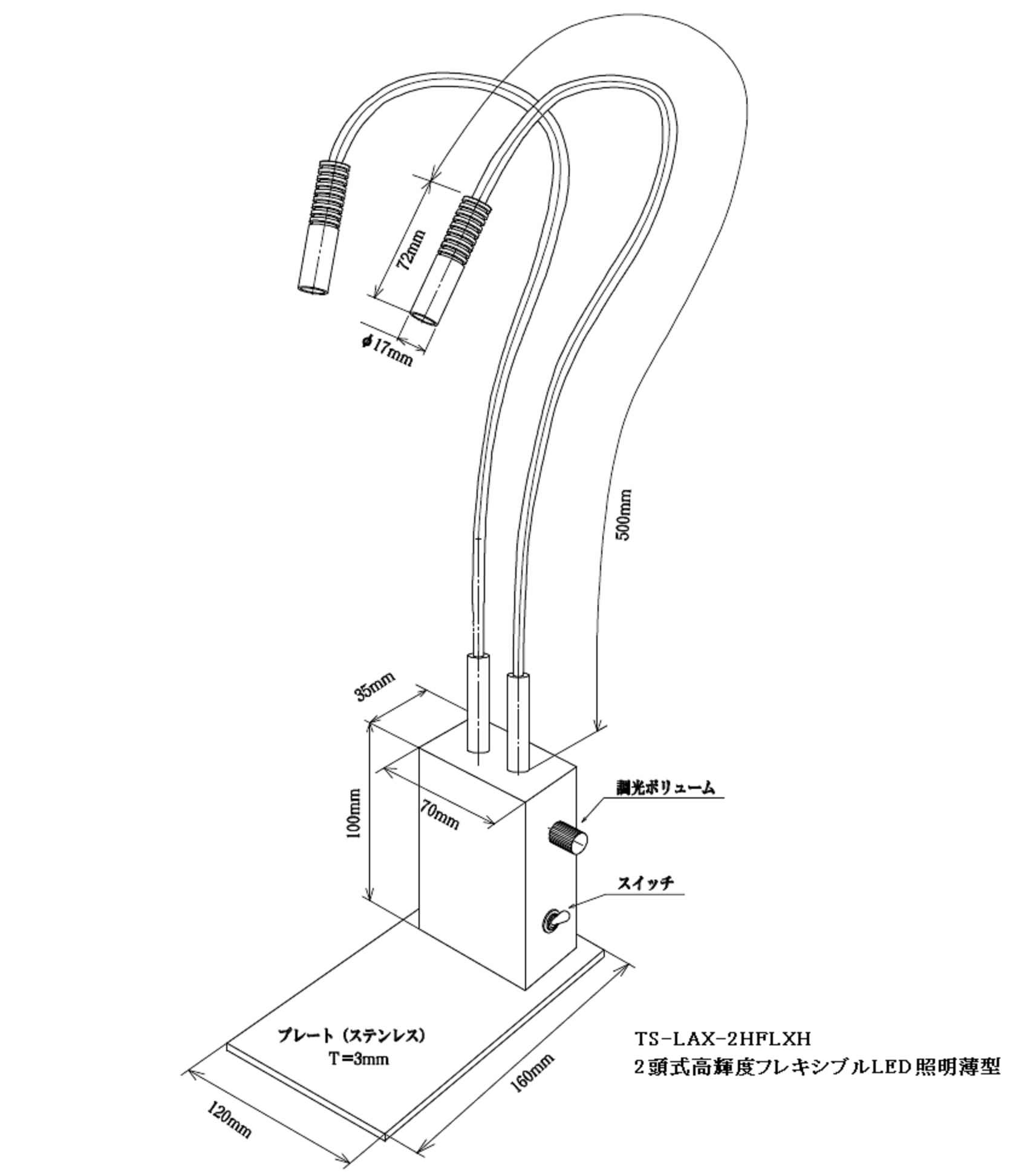

	TS-LAX-2HFLXH Double Head Flexible High power LED lightwith thinner base
	Due to it's think base, you can place the base under the camera stand or microscope to illuminate the object. It is very useful for those users having limited space. Since it got long flexible arm with length of 675㎜, you can illuminate the object with high power light without any frustration.
	■ One head: Approximately 75,000lx (when approx. 5㎝ away from the object)Typ value ■ With dimming function ■ AC adapter: DC9V / Input AC100V ■ Dimension:　External drawing ■ Body weight：1200g
	Price: JPY46,000(w/o tax) 　　　　JPY50,600(w/tax)
※include AC adapter
