5 Mega Pixel Lenses

Lenses supporting 5 Million Pixels Cameras

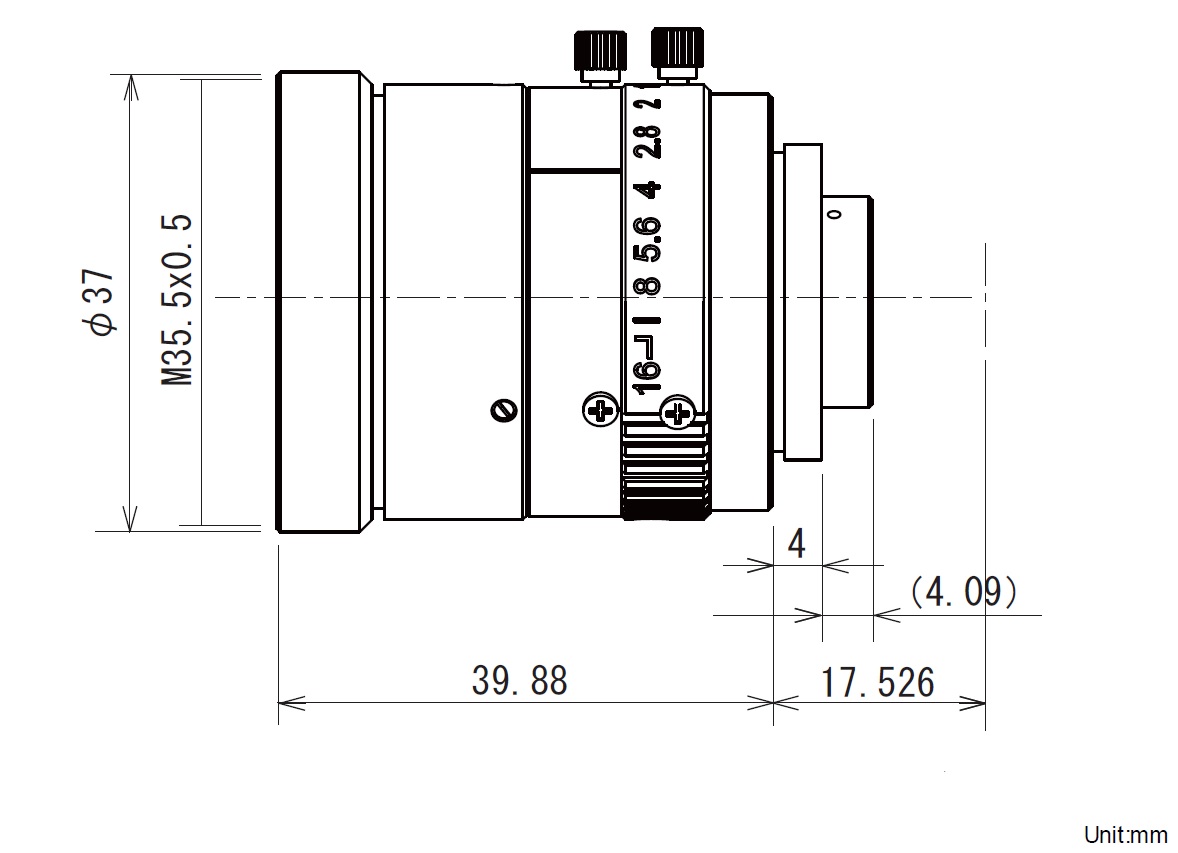

■TSMS-0814-5MP Mega Pixel Lensf=8mm

＜Drawing＞

P/N	TSMS-0814-5MP
Focal Length	8mm
Maximum Relative Aperture	1:1.4
Iris	F1.4～16
Angular Field of View	55.2°×42.9°
Max. View Size	8.8×6.6（φ11mm）
Image Size	1/3～2/3 inch
Back Focal Length	12.6mm
Flange Back	17.526mm
Min. Object Distance	0.1m(from Front Lens)

Operation	Focus:Manual
Operation	Iris: Manual
Mount	C-mount
Filter Thread	M35.5 P=0.5
Distortion	-0.17％
External Dimension	φ37×39.88mm
Weight	Approx. 200g
Operating Temperature	-10℃～+50℃
Price (JPY)	RFQ



■TSMS-1218-5MP Mega Pixel Lensf=12mm

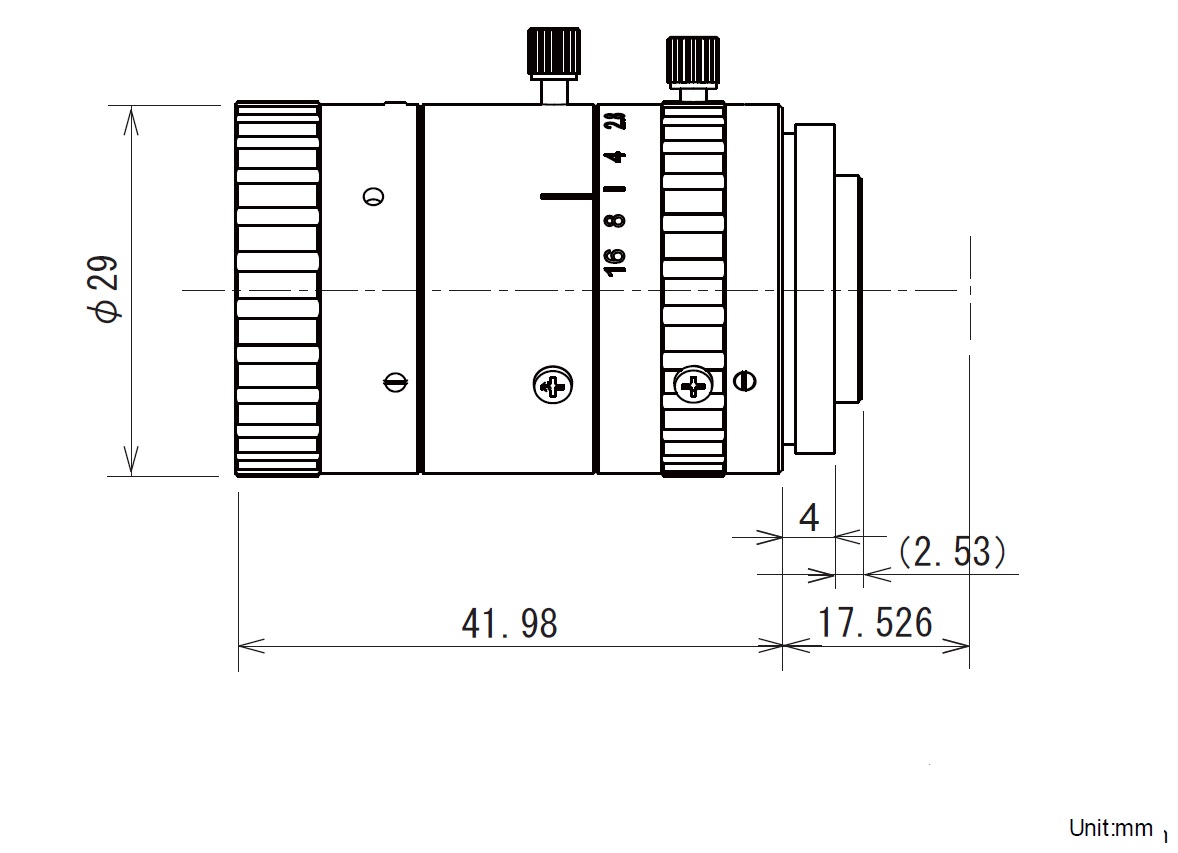

＜Drawing＞

P/N	TSMS-1218-5MP
Focal Length	12mm
Maximum Relative Aperture	1:1.8
Iris	F1.8～16
Angular Field of View	39.0×29.8°
Max. View Size	8.8×6.6（φ11mm）
Image Size	1/3～2/3 inch
Back Focal Length	11.72mm
Flange Back	17.526mm
Min. Object Distance	0.1m(from Front Lens)

Operation	Focus:Manual
Operation	Iris: Manual
Mount	C-mount
Filter Thread	M27 P=0.5
Distortion	-0.1％
External Dimension	φ29×41.98mm
Weight	Approx. 75g
Operating Temperature	-10℃～+50℃
Price (JPY)	RFQ



■TSMS-1618-5MP Mega Pixel Lensf=16mm

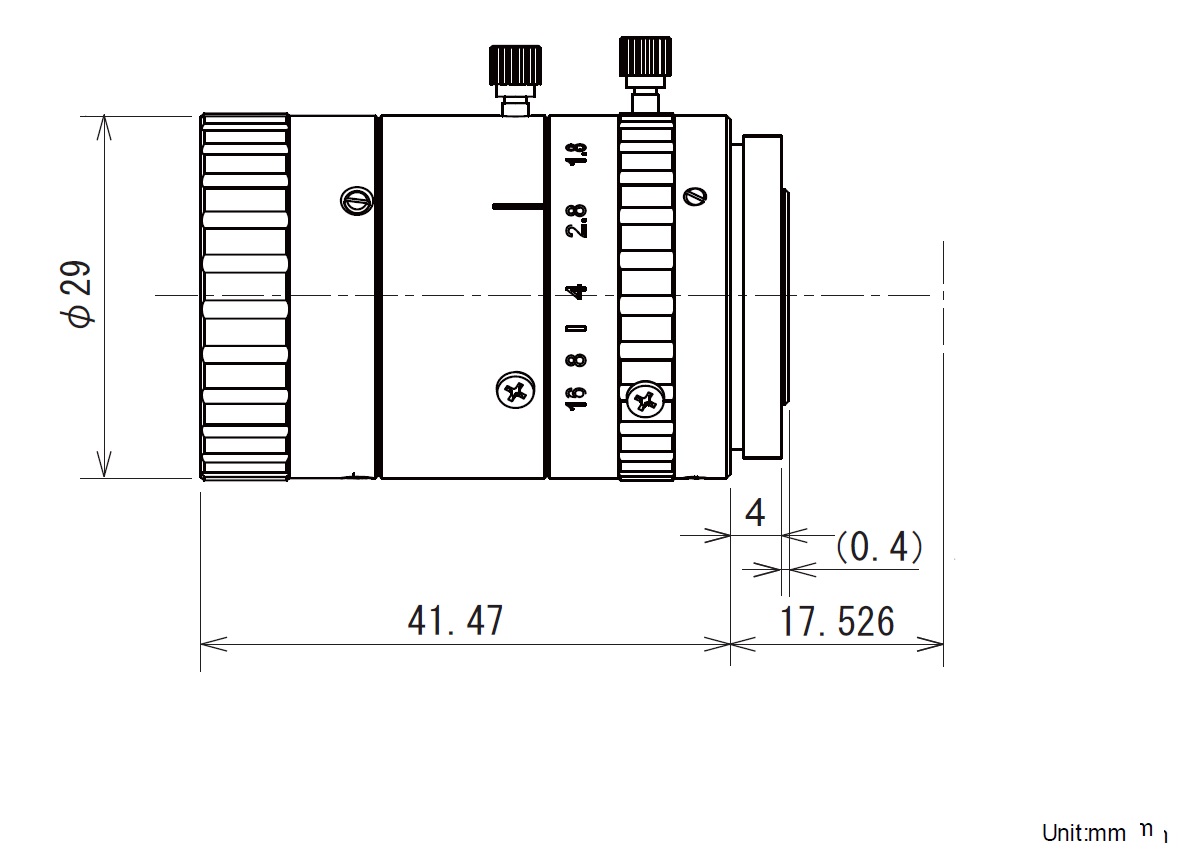

＜Drawing＞

P/N	TSMS-1618-5MP
Focal Length	16mm
Maximum Relative Aperture	1:1.8
Iris	F1.8～16
Angular Field of View	29.8×22.5°
Max. View Size	8.8×6.6（φ11mm）
Image Size	1/3～2/3 inch
Back Focal Length	13.5mm
Flange Back	17.526mm
Min. Object Distance	0.1m(from Front Lens)

Operation	Focus:Manual
Operation	Iris: Manual
Mount	C-mount
Filter Thread	M27 P=0.5
Distortion	-0.12％
External Dimension	φ29×41.47mm
Weight	Approx. 75g
Operating Temperature	-10℃～+50℃
Price (JPY)	RFQ



■TSMS-2518-5MP Mega Pixel Lensf=25mm

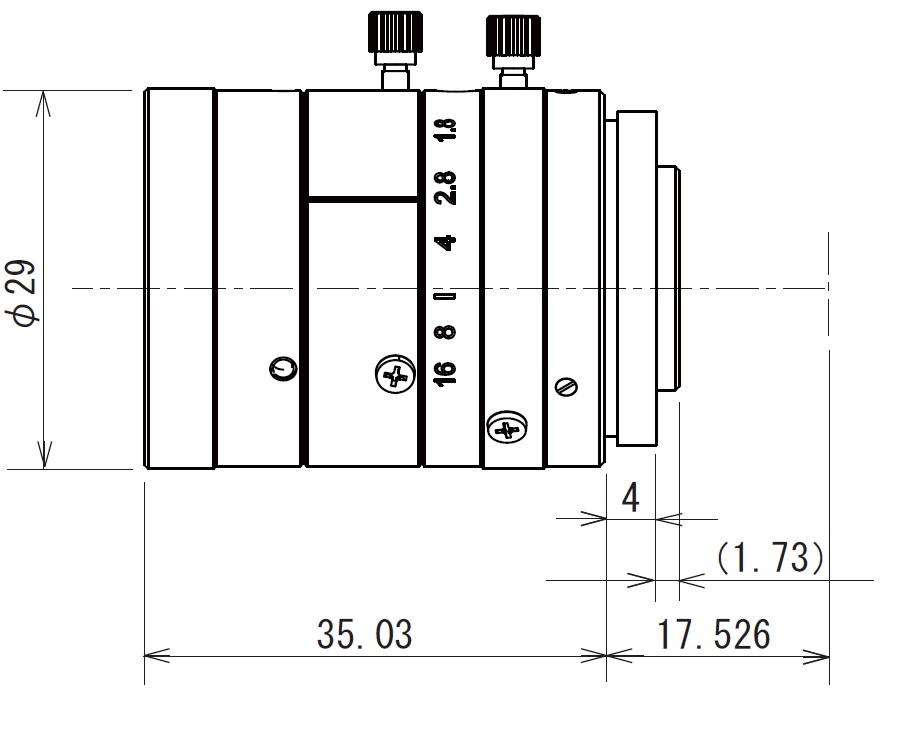

＜Drawing＞

P/N	TSMS-2518-5MP
Focal Length	25mm
Maximum Relative Aperture	1:1.8
Iris	F1.4～16
Angular Field of View	18.8×14.2°
Max. View Size	8.8×6.6mm （φ11mm）
Image Size	1/3～2/3 inch
Back Focal Length	12.7mm
Flange Back	17.526mm
Min. Object Distance	0.15m(from Front Lens)

Operation	Focus:Manual
Operation	Iris: Manual
Mount	C-mount
Filter Thread	M27 P=0.5
Distortion	-0.03％
External Dimension	φ29×35.03mm
Weight	Approx. 62g
Operating Temperature	-10℃～+50℃
Price (JPY)	RFQ

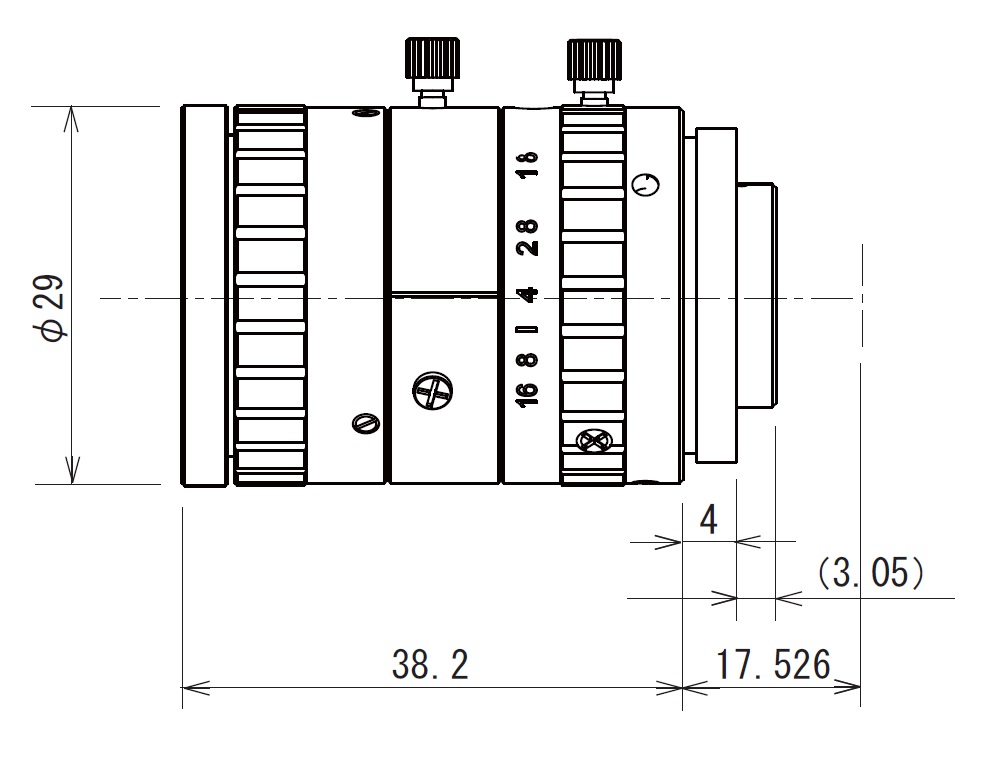

■TSMS-3518-5MP Mega Pixel Lensf=35mm

＜Drawing＞

P/N	TSMS-3518-5MP
Focal Length	35mm
Maximum Relative Aperture	1:1.8
Iris	F1.8～16
Angular Field of View	12.8×9.6°
Max. View Size	8.8×6.6mm （φ11mm）
Image Size	1/3～2/3 inch
Back Focal Length	11.73mm
Flange Back	17.526mm
Min. Object Distance	0.25m(from Front Lens)

Operation	Focus:Manual
Operation	Iris: Manual
Mount	C-mount
Filter Thread	M27 P=0.5
Distortion	-0.03％
External Dimension	φ29×38.2mm
Weight	Approx. 72g
Operating Temperature	-10℃～+50℃
Price (JPY)	RFQ



■TSMS-5018-5MP 5 Mega Pixel Lensf=50mm

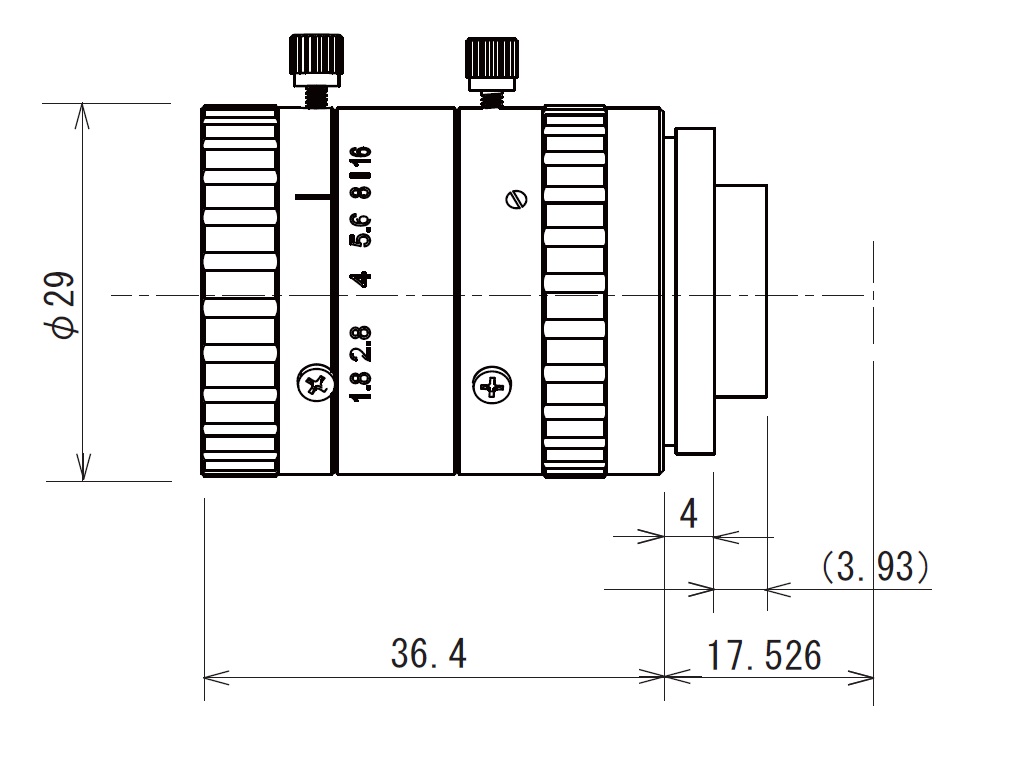

＜Drawing＞

P/N	TSMS-5018-5MP
Focal Length	50mm
Maximum Relative Aperture	1:1.8
Iris	F1.8～16
Angular Field of View	9.1×6.8°
Max. View Size	8.8×6.6mm （φ11mm）
Image Size	1/3～2/3 inch
Back Focal Length	11.35mm
Flange Back	17.526mm
Min. Object Distance	0.4m(from Front Lens)

Operation	Focus:Manual
Operation	Iris: Manual
Mount	C-mount
Filter Thread	M27 P=0.5
Distortion	-0.03％
External Dimension	φ29×36.4mm
Weight	Approx. 62g
Operating Temperature	-10℃～+50℃
Price (JPY)	RFQ



■TSMS-7524-5MP 5 Mega Pixel Lensf=75mm

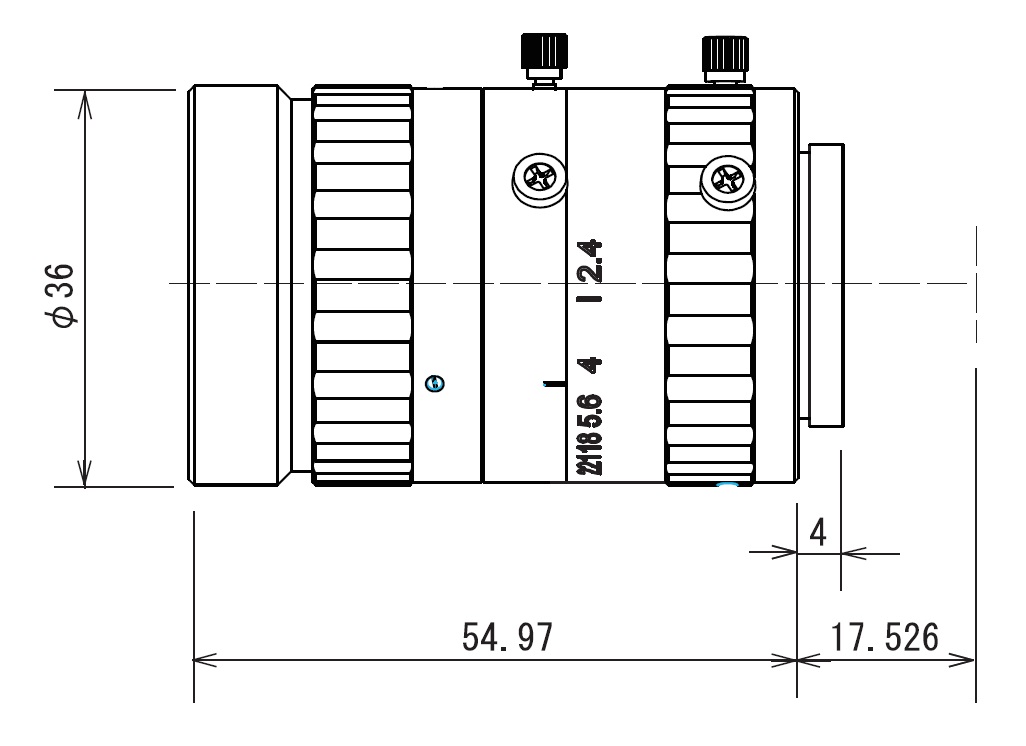

＜Drawing＞

P/N	TSMS-7524-5MP
Focal Length	75mm
Maximum Relative Aperture	1:2.4
Iris	F2.4～16
Angular Field of View	6.7°×5.0°
Max. View Size	8.8×6.6（φ11mm）
Image Size	1/3～2/3 inch
Back Focal Length	16.23mm
Flange Back	17.526mm
Min. Object Distance	1.0m(from Front Lens)

Operation	Focus:Manual
Operation	Iris: Manual
Mount	C-mount
Filter Thread	M34 P=0.5
Distortion	-0.17％
External Dimension	φ36×55mm
Weight	Approx. 141g
Operating Temperature	-10℃～+50℃
Price (JPY)	RFQ



■TSS-828CVL-5MPMi 5 Mega Pixel Lens f=8mm

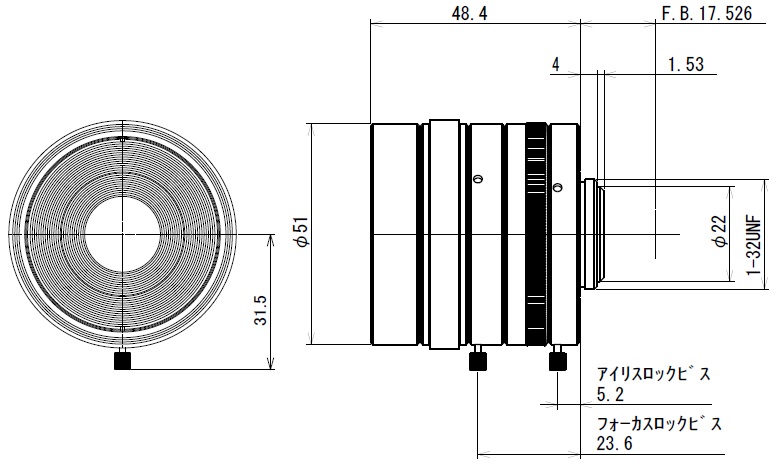

＜Drawing＞

P/N	TSS-828CVL-5MPMi
Focal Length	8mm
Maximum Relative Aperture	1:2.8
Iris	F2.8 to 22
Angular Field of View	57.9° x 45.0°
Max. View Size	8.8 x 6.6（Dia.11mm）
Image Size	1/3 to 2/3"
Back Focal Length	12.40(In Air)mm
Flange Back	17.526mm
Min. Object Distance	0.1m(from Front Lens)

Operation	Manual
Mount	C-Mount
Filter Thread	M49 P=0.75
Distortion	Closest: -2.23%
Distortion	infinity: -0.49%
Resolution	3.45μm
External Dimension	Dia.51 x 48.4mm
Weight	210g
Operating Temperature	-10°C to +50°C
Price (JPY)	obsolete

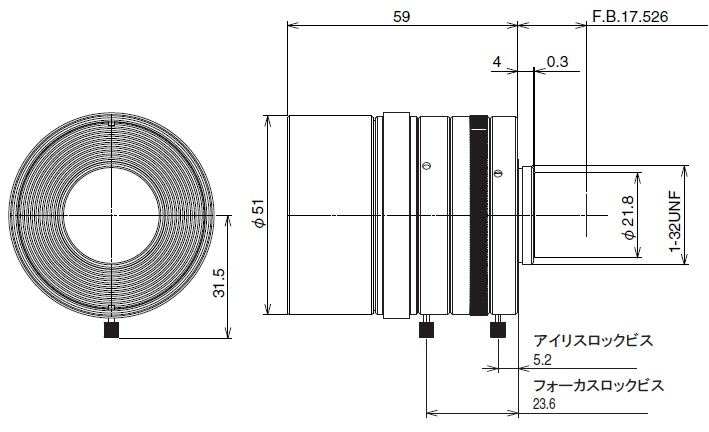

■TSS-1218CVL-5MPMi 5 Mega Pixel Lens f=12mm

＜Drawing＞

P/N	TSS-1218CVL-5MPMi
Focal Length	12mm
Maximum Relative Aperture	1:1.8
Iris	F1.8 to 22
Angular Field of View	40.3° x 30.8°
Max. View Size	8.8 x 6.6（Dia.11mm）
Image Size	1/3 to 2/3"
Back Focal Length	14.00(In Air)mm
Flange Back	17.526mm
Min. Object Distance	0.15m(from Front Lens)

Operation	Manual
Mount	C-Mount
Filter Thread	M49 P=0.75
Distortion	Closest: -0.22%
Distortion	infinity: 0.10%
Resolution	3.45μm
External Dimension	Dia.51 x 48mm
Weight	200g
Operating Temperature	-10°C to +50°C
Price (JPY)	obsolete



■TSS-1614CVL-5MPMi 5 Mega Pixel Lens f=16mm

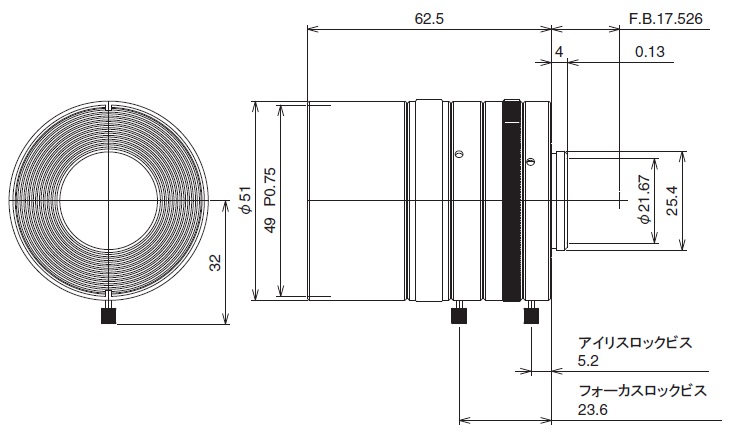

＜Drawing＞

P/N	TSS-1614CVL-5MPMi
Focal Length	16mm
Maximum Relative Aperture	1:1.4
Iris	F1.4 to 22
Angular Field of View	30.8° x 23.3°
Max. View Size	8.8 x 6.6（Dia.11mm）
Image Size	1/3 to 2/3"
Back Focal Length	14.038(In Air)mm
Flange Back	17.526mm
Min. Object Distance	0.2m(from Front Lens)

Operation	Manual
Mount	C-Mount
Filter Thread	M49 P=0.75
Distortion	Closest: -0.01%
Distortion	infinity: 0.17%
Resolution	3.45μm
External Dimension	Dia.51 x 62.5mm
Weight	200g
Operating Temperature	-10°C to +50°C
Price (JPY)	obsolete

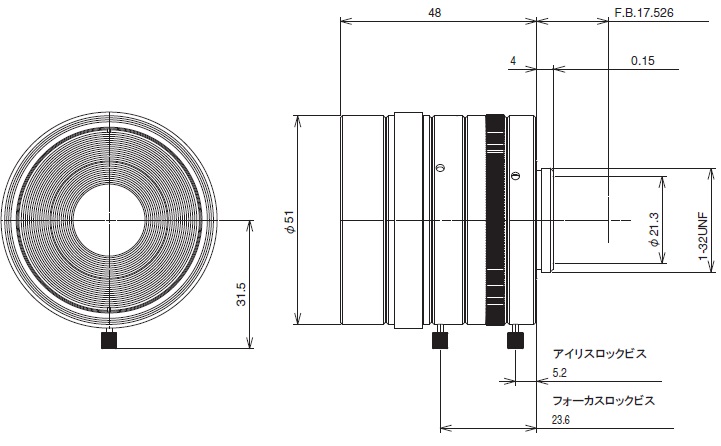

■TSS-2514CVL-5MPMi 5 Mega Pixel Lens f=25mm

＜Drawing＞

P/N	TSS-2514CVL-5MPMi
Focal Length	25mm
Maximum Relative Aperture	1:1.4
Iris	F1.4 to 22
Angular Field of View	20.0° x 15.0°
Max. View Size	8.8 x 6.6（Dia.11mm）
Image Size	1/3 to 2/3"
Back Focal Length	14.01(In Air)mm
Flange Back	17.526mm
Min. Object Distance	0.2m(from Front Lens)

Operation	Manual
Mount	C-Mount
Filter Thread	M49 P=0.75
Distortion	Closest: 0.02%
Distortion	infinity: 0.11%
Resolution	3.45μm
External Dimension	Dia.51 x 48mm
Weight	190g
Operating Temperature	-10°C to +50°C
Price (JPY)	obsolete



■TSS-3514CVL-5MPMi 5 Mega Pixel Lens f=35mm

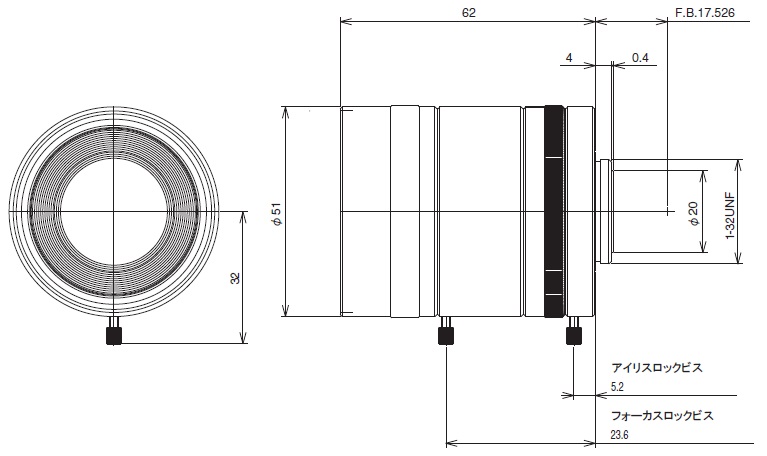

＜Drawing＞

P/N	TSS-3514CVL-5MPMi
Focal Length	35mm
Maximum Relative Aperture	1:1.4
Iris	F1.4 to 22
Angular Field of View	14.3° x 10.8°
Max. View Size	8.8 x 6.6（Dia.11mm）
Image Size	1/3 to 2/3"
Back Focal Length	14.027(In Air)mm
Flange Back	17.526mm
Min. Object Distance	0.25m(from Front Lens)

Operation	Manual
Mount	C-Mount
Filter Thread	M49 P=0.75
Distortion	Closest: 0.01%
Distortion	infinity: 0.03%
Resolution	3.45μm
External Dimension	Dia.51 x 62mm
Weight	230g
Operating Temperature	-10°C to +50°C
Price (JPY)	obsolete
