Board Camera Lens with Megapixels Resolution
M12P=0.5mm
■17620-MAS  Board Camera Lens f =1.7mm MOQ will be 100 once our stock will be clear
P/N 17620-MAS
Focal Length 1.7mm
Back Focal Length 3.4mm
Supporting CCD size 1/2.8 inch 1/3 inch 1/4 inch
Resolution 1920 x 1080pixels 1280 x 960pixels 1280 x 960pixels
F No. F2.0
Distortion -112“ -74% -
Angle of view (HxV) 190 x 105 160 x 120 120 x 90
Focus Range 35cm to infinity
Lens Configuration 5 Groups 6 Elements

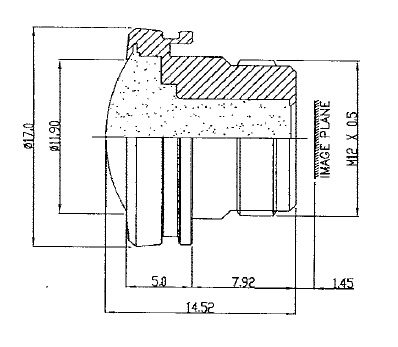

External dimension Dia.17 x 14.52mm go to Drawing
■25620-3M  Board Camera Lens f =2.5mm MOQ will be 100 once our stock will be clear
P/N 25620-3M
Focal Length 2.5mm+/-5%
Back Focal Length 5.4mm+/-5%D>
Supporting CCD size 1/2.7 inch 1/3 inch 1/4 inch
Resolution 3 Megapixels
F No. F2.0
Distortion -31.6% -20.9% -10.4%
Angle of view (HxV) 160.2 x 136.5 x 73.2 143.1 x 111.1 x 81.7 103.6 x 87.7 x 60.7
Focus Range 55cm to infinity
Lens Configuration 5 Groups 6 Elements
Others Supporting IR

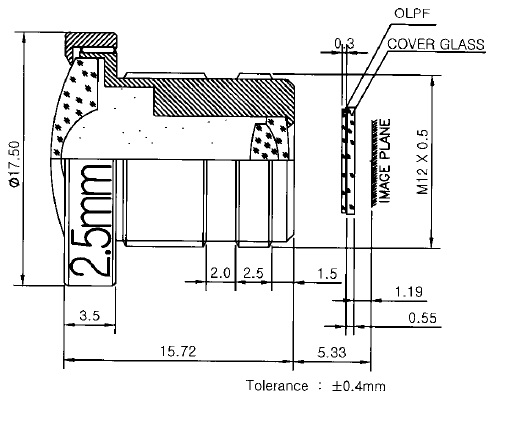

External dimension Dia.17.50 x 15.72mm go to Drawing
■29620F-3M  Board Camera Lens f =2.9mm MOQ will be 100 once our stock will be clear
P/N 29620F-3M
Focal Length 2.9mm
Back Focal Length 5.96mm
Supporting CCD size 1/2.7 inch 1/3 inch 1/4 inch
Resolution 3 Megapixels
F No. F2.0
Distortion -23.2% -15.7% -8.1%
Angle of view (DxHxV) 140.5 x 120.2 x 65.3 125.8 x 98.6 x 72.8 92.0 x 72.8 x 54.2
Focus Range 70cm to infinity
Lens Configuration 5 Groups 6 Elements
Others Supporting IR

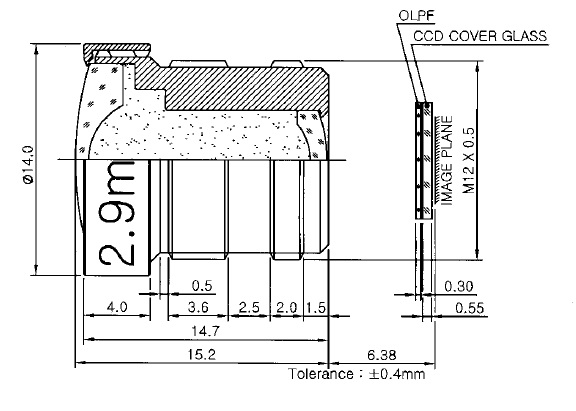

External dimension Dia.14 x 15.2mm go to Drawing
■37518G-3MAS  Board Camera Lens f =3.7mm MOQ will be 100 once our stock will be clear
P/N 37518G-3MAS
Focal Length 3.7mm
Back Focal Length 6.0mm+/-5%
Supporting CCD size 1/2.7 inch 1/3 inch 1/4 inch
Resolution 3 Megapixels
F No. F1.8
Distortion -16.81% -11.18% -5.62%
Angle of view (DxHxV) 114.0 x 95.9 x 51.1 100.7 x 77.7 x 57.0 72.4 x 57.0 x 42.3
Focus Range 120cm to infinity
Lens Configuration 4 Groups 5 Elements
Others Supporting IR

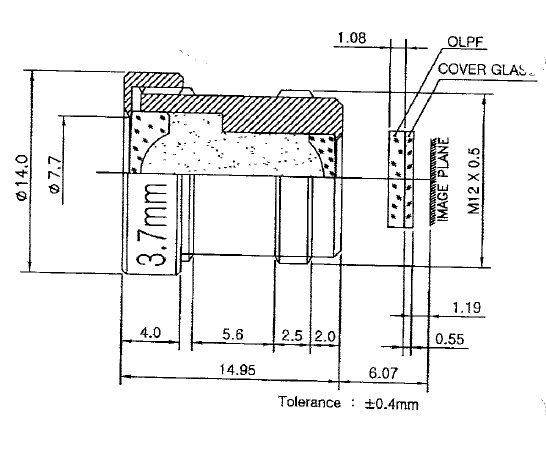

External dimension Dia.14 x 14.95mm go to Drawing
■60620-3M@Board Camera lens f=6.0mm MOQ will be 100 once our stock will be clear
P/N 60620-3M
Focal Length 6.0mm
Back Focal Length 6.4mm}5“
Supporting CCD size 1/2.7 inch 1/3 inch 1/4 inch
Resolution 3 Mega Pixel
F No. F2.0
Distortion -12.41“ -10.0“ -5.5“
Angle of View
(DxHxV)		 64.4x55.8x31.0 58.2x46.3x34.6 43.2x34.4x25.8
Focus Range 400cm`‡
Lens Configuration 6 Groups
Others Supporting Visible•IR
External Dimension ƒΣ14 X 14.4mm go to Drawing
