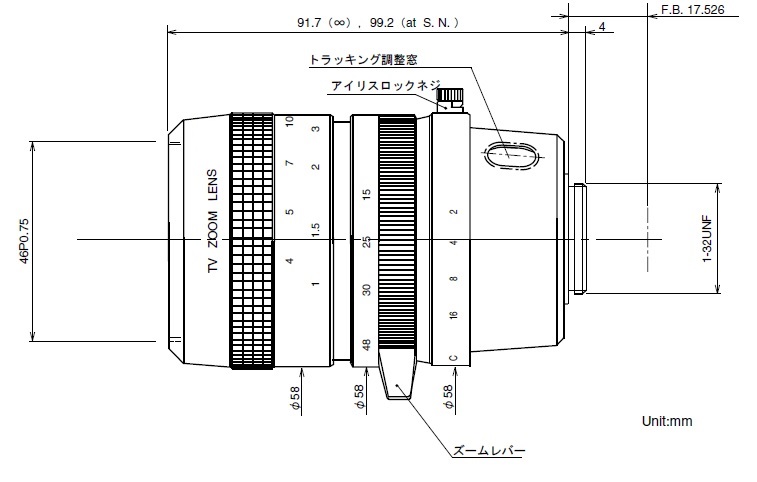

＜Drawing＞ |
| P/N |
TSS-11569MZL-i(MO) |
| Focal Length |
11.5 to 69mm |
| Maximum Relative Aperture |
1:1.4 |
| Iris |
F1.4 to Close |
| Zoom Ratio |
6x |
| Angular Field of View |
41.9° x 32.0°(f=11.5mm) |
| 7.3° x 5.5°(f=69mm) |
| Maximum View Size |
8.8 x 6.6mm（Dia.11mm） |
| Image Size |
1/4 to 2/3" |
| Back Focal Length |
17.93(In Air)mm |
| Flange Back |
17.526mm |
| Min. Object Distance |
1.0m(from Front Lens)
At Service Near time: 0.5m |
|
| Operation |
Manual |
| Mount |
C-Mount |
| Filter Thread |
M46 P=0.75 |
| Photographing range |
72.8 x 54.6cm(11.5mm)
|
| 12.8 x 9.6cm(69mm) |
| External Dimension |
Dia.58 x 107.8mm |
| Weight |
410g |
| Operating Temperature |
-10°C to +50°C |
| Price |
Yen50,000(w/o tax)
Yen55,000(w/tax) |
* When using Service Near function, there is possibility for partial vignetting
occur during Zooming.
|
