TS-MS-01 / TS-MS-01A / TS-MS-01B
TS-MS-01-SET1 |
|
|
| Microscope Adapter |
This adapter allows you to attach CCD cameras and digital cameras to any
kind of microscopes.
With high lens performance designed in Japan's reliable technology, TS-MS-01
corrects
aberrations and allows you to observe the object clearly every corner. |
| |
 |
| ■ |
Microscope Adapter allows you to capture clear exact image without distortion |
|
If aberration occurs, it affects fine inspection and observation. Various
aberrations such as chromatic aberration, field curvature aberration, and
distortion aberration are corrected by optimizing lenses with various characteristics
with advanced optical design. (Lens construction: 5 groups 8 pieces) |
| ■ |
Scale is attachable |
|
A commercially available scale (micrometer) of φ19 mm thickness 1 mm can
be installed. (Note: scale is not included) |
| ■ |
Attachable to all types of Microscopes |
|
It can be attached to binocular tube (φ23.2 mm) of ordinary biological microscope or metallurgical microscope, binocular barrel of stereoscopic microscope (φ30 mm), tri-lens barrel (C mount). |
| ■ |
Capture pictures and images into PC by using USB Camera |
|
By attaching this adapter, you can mount C-Mount Camera to capture the
live image. |
| ■ |
Adjustable Image Sizing |
|
The image size varies somewhat depending on the camera model. TS-MS-01 solved the problem by adopting image size fine adjustment mechanism. It is also possible to change the magnification slightly using this mechanism. |
|
|
 |
Catalog Download (currently only Japanese ver. available) |
|
|
| |
|
|

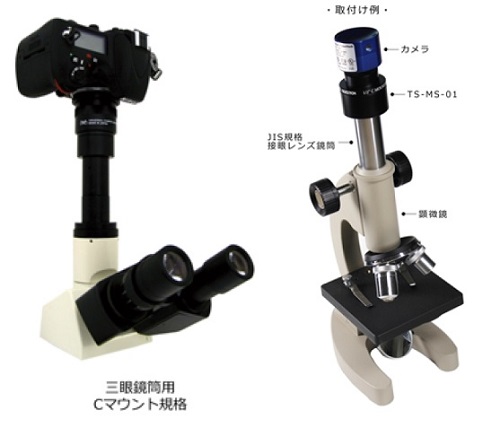

| ■Usage image (Left: Single lens reflex camera attached diagram right: CCD
camera installation drawing) |
 |
|
|
       |
  |
  |
 |
<-- Insects 40 million years ago wrapped in amber (Documents provided
by customers)
2x objective lens magnification |
| ■Product Data |
|
 |
|
| P/N |
Description |
Bundled Items |
Weight
(g) |
Price (JPY) |
| TS-MS-01 |
Microscope Adapter Basic Set
|
· Microscope Adapter
· Adapter for 1/2 inch CCD camera
· Conversion adapter for C mount barrel
· Conversion adapter for 30 mm lens barrel
· Allen wrench (1.27)
· Minus driver (2.4)
· Storage box
·instruction manual
|
542.8 |
58,500
(w/o tax)
64,350
(w/tax) |
|
| ■Specification of Microscope Adapter |
| Lens Construction |
Optical Mag. |
F.L. |
NA |
Flatness |
Country of Origin |
| 5G8E |
1,9X |
92.53mm |
0.025mm |
Planeness: Over90%* |
Japan |
|
| * It means it can focus over 90% of image
|
|
|
|
|
| P/N |
Description |
Note |
Weight
(g) |
Price wt Tax (JPY) |
| TS-MS-01A |
Adapter for single lens reflex digital camera
|
 |
Requires TS-MS-01 to use |
77.2 |
20,000
(w/o tax)
22,000
(w/tax) |
| TS-MS-01B |
Varifocal zoom adapter for C mount camera |
|
- |
Coming soon |
|
|
|
|
| P/N |
Description |
Bundled Items |
Weight
(g) |
Price wt Tax (JPY) |
| TS-MS-01-SET1 |
Microscope adapter basic set + single lens reflex digital camera adapter |
TS-MS-01 + TS-MS-01A |
620 |
78,500
(w/o tax)
86,350
(w/tax) |
 |
|
| |
|
|
| P/N |
Description |
Lens Mount |
Mount |
Weight (g) |
Price (JPY) |
| T-NIK |
Camera Attachment for Nikon F mount |
Single lens reflex digital camera |
T-mount |
- |
ask for quote |
| T-EOS |
Camera Attachment for Canon EOS mount |
- |
| T-MAF |
Camera Attachment for SONY / MINOLTA α mount |
- |
| T-PK |
Camera Attachment for PENTAX KA mount |
- |
| T-4/3 |
Camera Attachment for OLYMPUS 4/3 mount |
- |
| T-N1 |
Camera Attachment for NIKON 1 mount |
Mirror-less camera |
- |
| T-EOSM |
Camera Attachment for CANON FE-M mount |
- |
| T-NEX |
Camera Attachment for SONY E mount |
- |
| T-M4/3 |
Camera Attachment for Macro 4/3 mount |
- |
| T-FX |
Camera Attachment for FUJI FILM X mount |
- |
| T-PQ |
Camera Attachment for PENTAX Q mount |
- |
|
|
|
|
|
