MICROMETER SCOPE WITH LED LIGHT AND BATTERY HOLDER (Measuring Microscope)
TS-7LE-20LD/TS-7LE-50LD/TS-7LE-100LD/TS-7LE-200LD
Micrometer Scope with Light and Battery Holder
■ Handy Type Scope with Fixed Magnification
There are 4 types of magnification as 20x/50x/100x/200x
■ Oblique Illumination best to observe metal surface or uneven and 3 dimentional objects
Enhancing projections and depressions by making shadows caused by oblique light illumination. It is widely used outside objects like cracks in concrete and sleepers of rail way.
■ Upright image allows you to observe object as loupe
When you use the microscope, image is flipped horizontally. However by using roof prism in optical system, you can observe samples by upright image. With this function, it allows you to control and observe object easier.

■ Capture pictures and images into PC by using USB Camera or smartphone　
If you purchase TS-HM--USB Camera Adapter, you can attach C or CS mount Camera. It allows you to observe or save the image on the monitor or PC monitor.
You can also shoot with a smartphone by using a commercially available smartphone adapter for microscopes.
■ The object length is measurable using precision scale
Precision Scale is installed at eyepiece section in order to measure object length. (scale span is different depends on magnifications)
    Please download the catalog from here
■LED Light + Micrometer Scope with built-in battery holder
P/N Magnification Illumination Minimum Scale Field of view Detection bounds W.D. Price w/o tax
(JPY)		 Price w/tax
(JPY)
TS-7LE-20LD 20x LED 0.05mm 9.0mm 5.0mm 35mm 43,500 47,850
TS-7LE-50LD 50x LED 0.02mm 3.6mm 2.0mm 21 mm obsolete
TS-7LE-100LD 100x LED 0.01mm 2.1mm 1.0mm 14mm 50,000  55,000
TS-7LE-200LD 200x LED 0.005mm 1.05mm 0.3mm 13mm 53,000  58,300
The above product will be obsolete once stocks will be over.
■Successor Model: White LED Light + Micrometer Scope with built-in battery holder
P/N Magnification Illumination Minimum Scale Field of view Detection bounds W.D. Price w/o tax
(JPY)		 Price w/tax
(JPY)
TS-7LE-20LDW 20x White LED 0.05mm 9.0mm 5.0mm 35mm 56,000 61,600
TS-7LE-50LDW 50x White LED 0.02mm 3.6mm 2.0mm 21 mm 59,500 65,450
TS-7LE-100LDW 100x White LED 0.01mm 2.1mm 1.0mm 14mm 62,000 68,200
TS-7LE-200LDW 200x White LED 0.005mm 1.05mm 0.3mm 13mm 65,500 72,050

 Scale

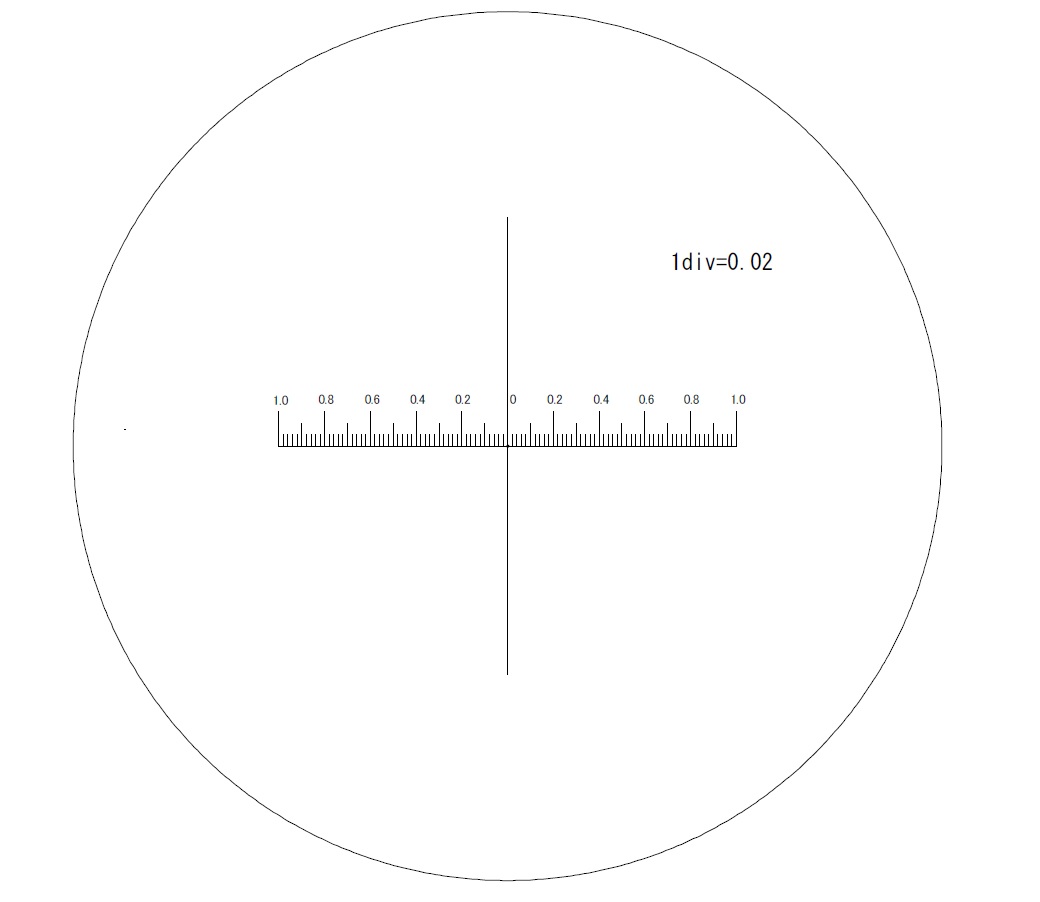

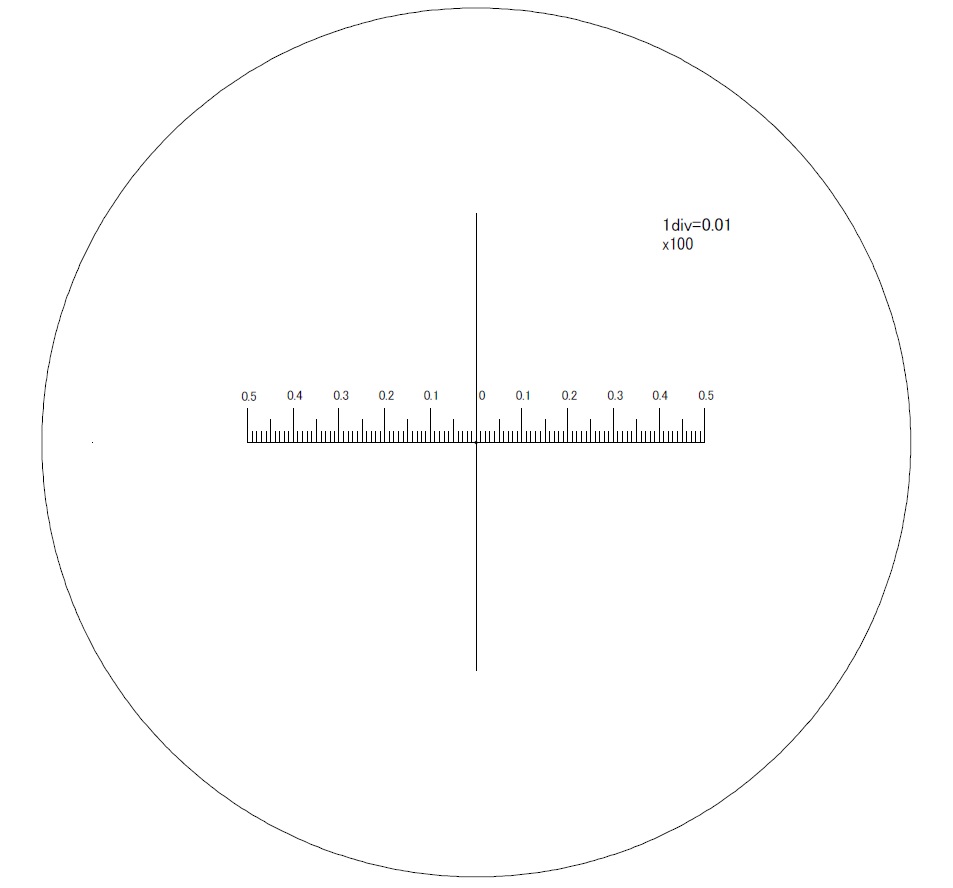

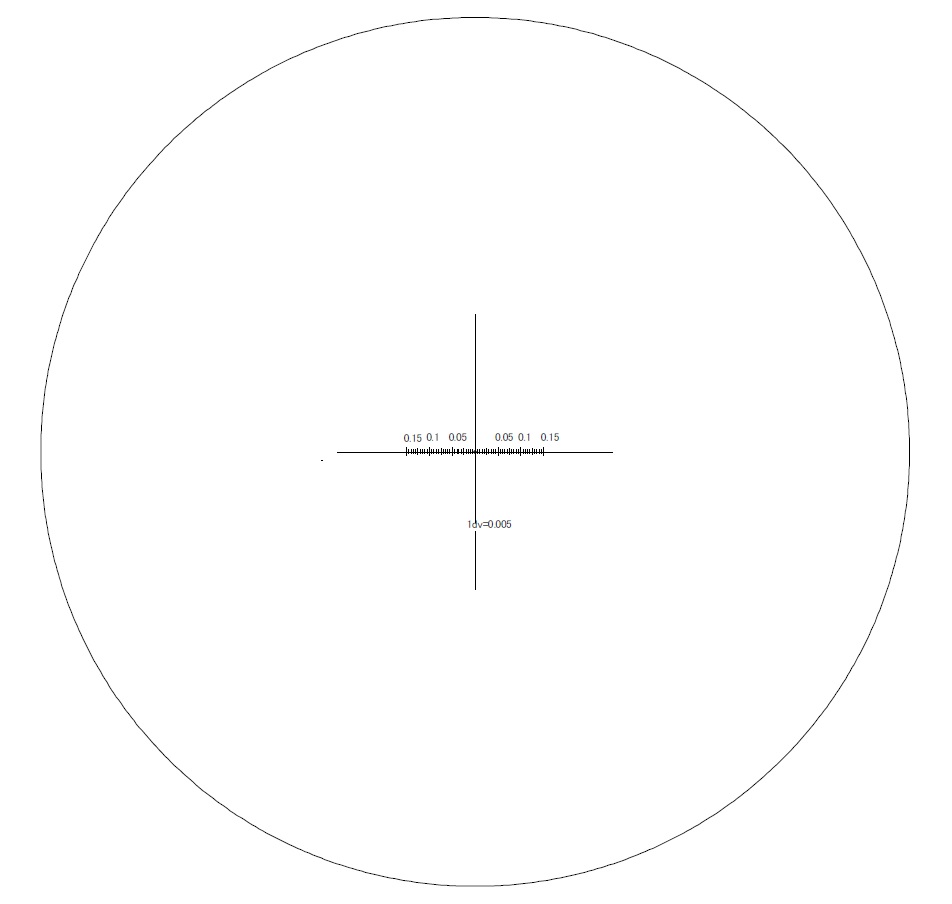

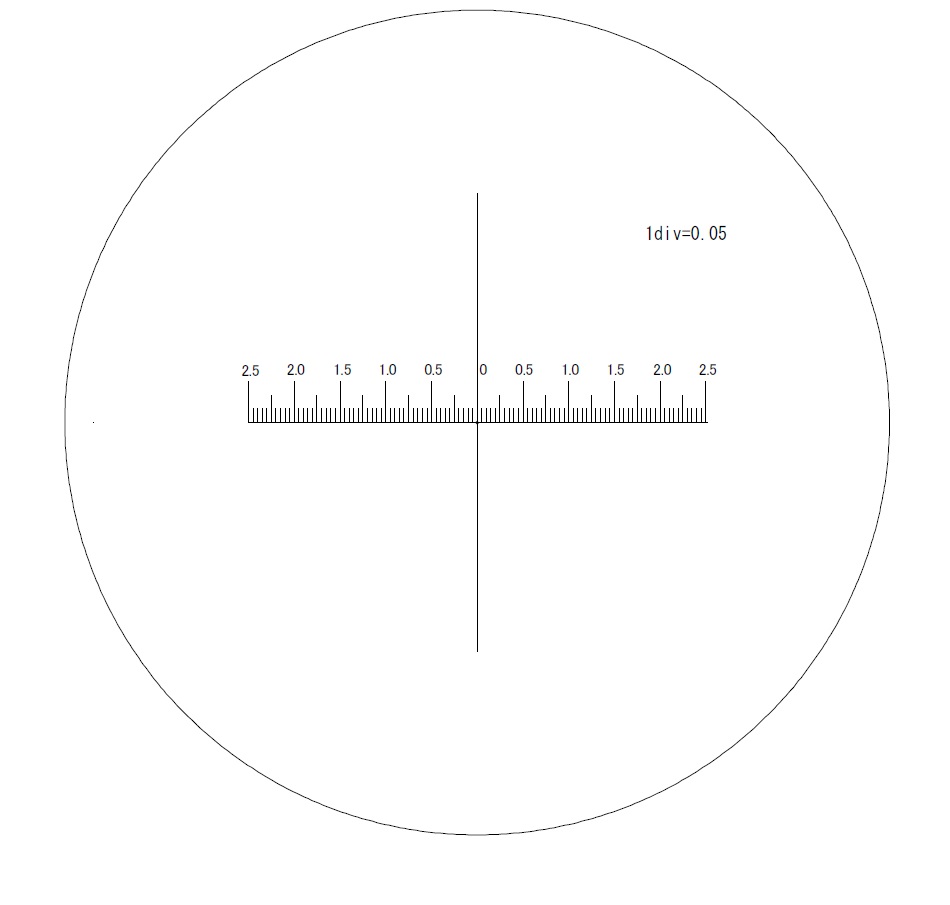

 20x 50x  100x  200x

■C-Mount Camera Connection Adapter (option)
 C/CS Mount Camera
USB Camera /NTSC Camera /CamaLink Camera

If you want to capture the whole image as you observe with your eye like images at the bottom, it is better to use 2/3 or bigger imager size USB camera.
TS-SP-USB2

Camera Adapter

Correspond with C/CS mount
Applicable products:TS-7LE, TS-8LEN, TS-SP

JPY28,500 (w/o tax)
JPY31,350(w/tax)

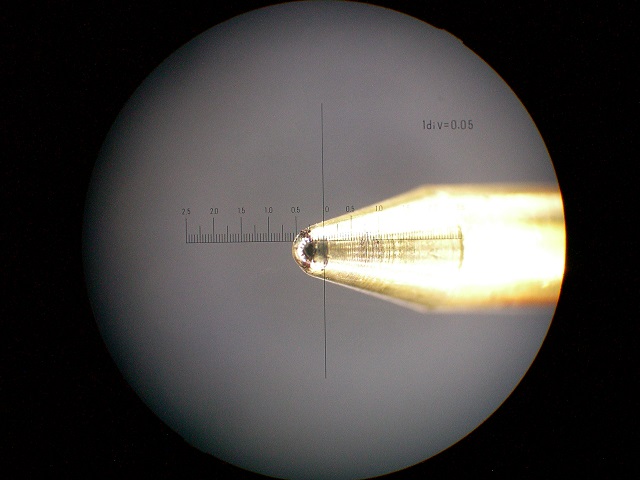

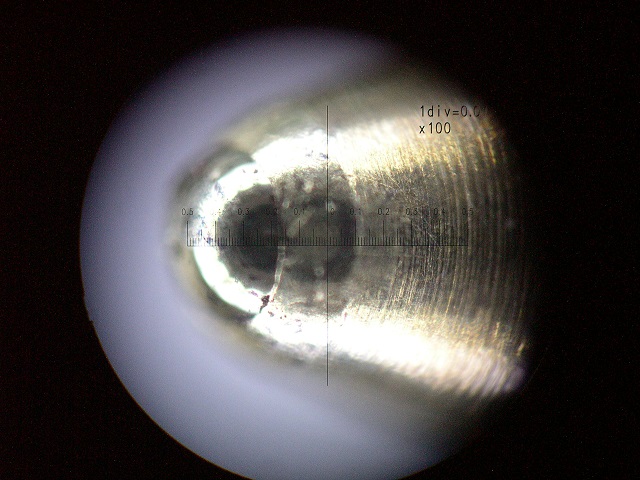

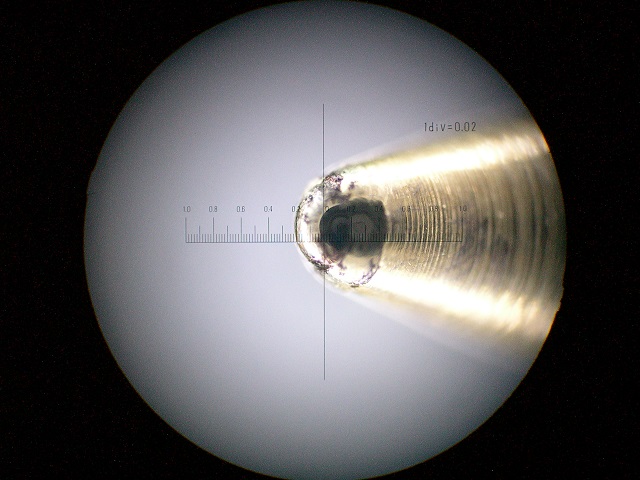

Photo image for tip of ballpoint pen taken by Digital Camera

TS-8LEN-20
TS-8LEN-50
TS-8LEN-100
TS-8LEN-200
