TS-8LEN-20WT / TS-8LEN-50WT / TS-8LEN-100WT / TS-8LEN-200WT
TS-8LEN-20YL / TS-8LEN-50YL / TS-8LEN-100YL / TS-8LEN-200YL |
|
|
| A fixed-magnification, handheld microscope equipped with a built-in LED
ring light (18 LEDs) for direct, uniform illumination. Ideal for inspection
and measurement of flat objects. |
（selling separatley） |
| ■ |
Fixed Magnification Scope |
|
Available in four magnification levels: 20x, 50x, 100x, and 200x. |
| ■ |
18-LED Direct Lighting System |
|
Designed for observing flat surfaces such as paintings, printed materials, metals, and textiles. Widely used in museums, galleries, and research institutions for restoration and inspection purposes. |
| ■ |
Upright Image for Natural Viewing |
|
Traditional microscopes often invert or flip the image, making it challenging to align and manipulate the sample during inspection. The Handy Micrometer solves this issue by incorporating a roof prism in its optical system, which presents the viewer with an upright, unreversed image. This feature allows users to observe objects in a way that mimics direct viewing, making it much easier to operate and perform precise measurements or alignments. |
| |
 |
| ■ |
Integrated Measurement Scale |
|
Each model includes a precision scale in the eyepiece for accurate measurement.
The measurement span varies depending on the magnification level.(see below specification table for the details) |
| ■ |
Multiple Power Supply Options (Sold Separately) |
|
Choose from three types of power sources:
- Battery Box (AA x 4) ? Ideal for portable use
- AC Adapter (100?240V) ? Stable, long-term usage
- USB Power Adapter ? Convenient connection to PCs or USB power supplies
All options include a dimmer function for brightness control. |
| ■ |
Image & Video Capture Capabilities (Sold Separately) |
|
- If you purchase TS-HM-USB Camera Adapter, you can attach C or CS mount
Camera. It allows you to observe or save the image on the monitor or PC
monitor.
- You can also shoot with a smartphone by using a commercially available
smartphone adapter for microscopes.
|
| |
Please download the catalog from here  |
|
|
|
|
■Micrometer Scope with LED Ring Light (Cool white) |
|
| P/N |
Magnification |
LED color |
Minimum Scale |
Field of view |
Detection bounds |
W.D. |
Price w/o tax
(JPY) |
Price w/tax
(JPY) |
Drawing |

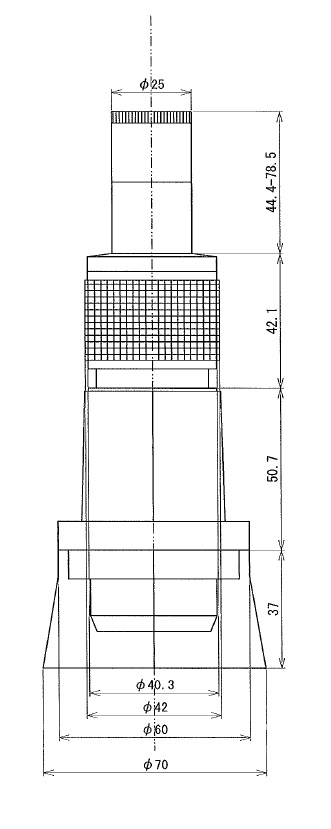

| TS-8LEN-20WT |
20x |
Cool white |
0.05mm |
9.0mm |
5.0mm |
35mm |
80,000 |
88,000 |
jpg |

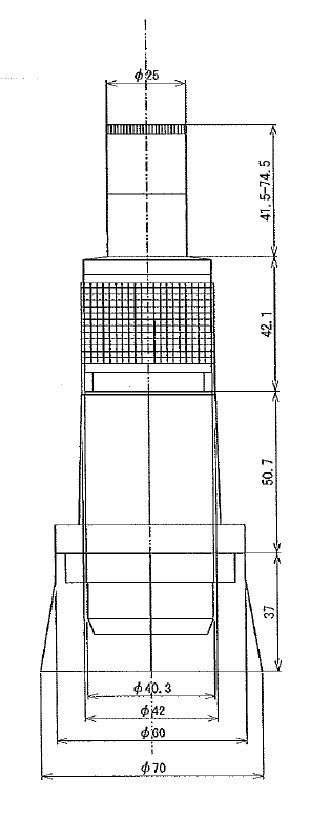

| TS-8LEN-50WT |
50x |
Cool white |
0.02mm |
3.6mm |
2.0mm |
21
mm |
81,000 |
89,100 |
jpg |

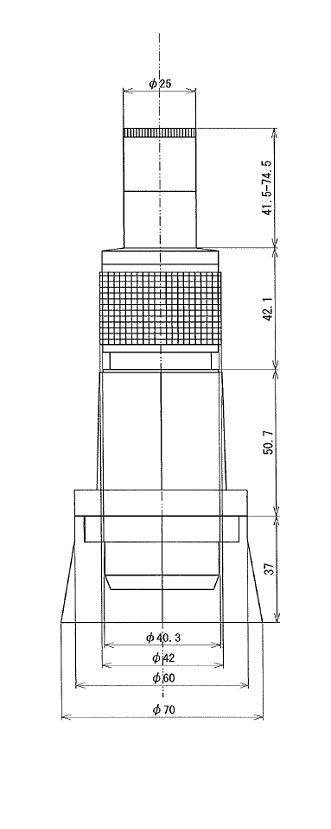

| TS-8LEN-100WT |
100x |
Cool white |
0.01mm |
2.1mm |
1.0mm |
14mm |
82,000 |
90,200 |
jpg |

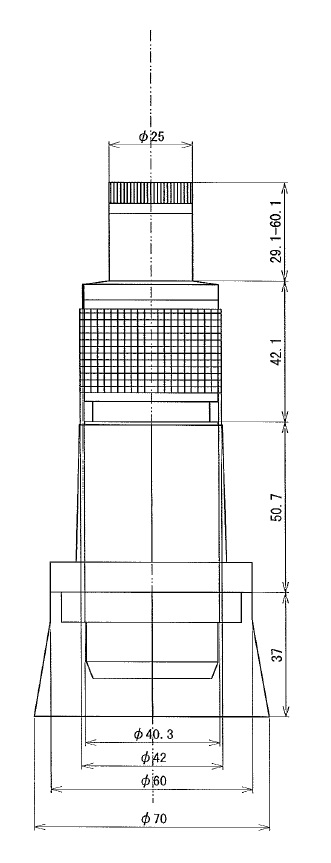

| TS-8LEN-200WT |
200x |
Cool white |
0.005mm |
1.05mm |
0.3mm |
13mm |
88,000 |
96,800 |
jpg |
|
|
■Micrometer scope with LED Ring Light (Worm white) |
|
| P/N |
Magnification |
LED color |
Minimum Scale |
Field of view |
Detection bounds |
W.D. |
Price w/o tax
(JPY) |
Price w/tax
(JPY) |
Drawing |
| TS-8LEN-20YL |
20x |
Warm white |
0.05mm |
9.0mm |
5.0mm |
35mm |
80,000 |
88,000 |
jpg |
| TS-8LEN-50YL |
50x |
Warm white |
0.02mm |
3.6mm |
2.0mm |
21
mm |
81,000 |
89,100 |
jpg |
| TS-8LEN-100YL |
100x |
Warm white |
0.01mm |
2.1mm |
1.0mm |
14mm |
82,000 |
90,200 |
jpg |
| TS-8LEN-200YL |
200x |
Warm white |
0.005mm |
1.05mm |
0.3mm |
13mm |
88,000 |
96,800 |
jpg |
|
|
|
| P/N |
Descritpion |
Price w/o tax
(JPY) |
Price w/tax
(JPY) |
| TS-8L-LCCN |
Battery box with Light Control (4 AA batteries) |
13,500 |
14,850 |
TS-LACLC-2 |
AC Power Supply with Light Control (100 - 240V) |
17,500 |
19,250 |
| TS-USBLC-2 |
USB Light Controller Adapter
(Power from PC USB port, etc.) |
17,500 |
19,250 |
|

TS-LACLC-2 TS-USBLC-2 |
|
|
TS-LAX-2HFLXP-1 Portable Dual Headed Flexible LED lighting for TS-8LEN
Optimized for Three-Dimensional Object Observation
This portable LED lighting unit features a built-in battery, enabling convenient
use even in environments without access to a power outlet. Equipped with
dual flexible arms, the lighting angle can be freely adjusted to enhance
contrast and depth, making it ideal for inspecting uneven or textured surfaces
with greater clarity. |

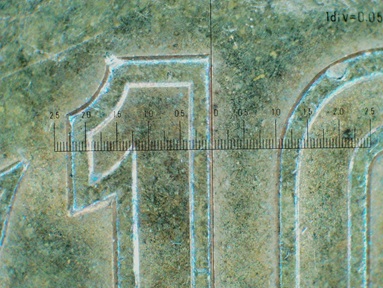

The sample image of TS-LAX-2HFLXP-1 attached to TS-8LE(TS-8LE is sold separately) |
| P/N |
Descritpion |
Price w/o tax
(JPY) |
Price w/tax
(JPY) |
| TS-LAX-2HFLXP-1 |
Portable dual-headed Flexible LED lighting for TS-8LEN |
35,000 |
38,500 |
|
| Specifications |
| Power |
1W |
| Lighting mode |
3 |
| Built-in battery capacity |
600mAh |
| Brightness |
110 levels of adjustment |
| Color Temperature |
5600K |
| Illuminance |
24000Lux |
| Lighting Distance |
(8cm) |
| High color rendering |
95+ |
| Charging port |
Type-C |
| Flexible arm length |
29.02cm |
|
|

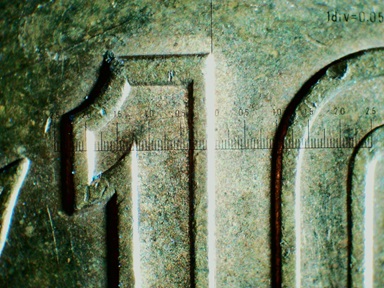

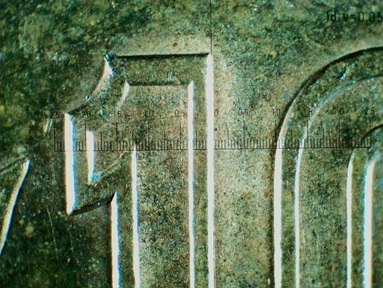

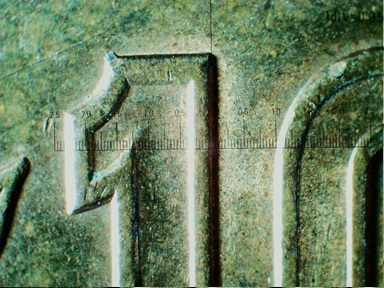

| Standard built-in lightin |
Dual lighting
(left and right LEDs on) |
Right-side illumination only |
Left-side illumination only |
 |
 |
 |
 |
|
| Optional Filters |
| Choose the appropriate filter based on the type of object you are observing. |
|
 |
 |
 |
| P/N |
TS-CZ5-1 |
TS-CZ5-2 |
TS-CZ5-3 |
| Description |
Dia.44 Filter Cover Ring |
Dia 39.5 Donut Shape Diffuser Glass |
Dia. 39.5 Donut Shape Polarizing Glass |
| Price(JPY) |
6,500(w/o tax)
7,150(w/tax) |
4,500(w/o tax)
4,950(w/tax) |
8,500(w/o tax)
9,350(w/tax) |
| Application |
Holds either the TS-CZ5-2 diffuser glass or TS-CZ5-3 polarizing glass.
Reduces unwanted reflections from the TS-8LEN or TS-CZ5 series LED lights. |
Provides even illumination, ideal for shiny or reflective surfaces. Requires TS-CZ5-1 for installation.. |
Reduces glare when observing crystals, transparent materials, or highly
reflective surfaces. Requires TS-CZ5-1 for installation. |
| Applicable P/N |
TS-LA-CZ5WT / TS-LA-CZ5YL / TS-LAX-CZ5MLAC / TS-8LEN series |
Example of use
TS-CZ5-1 is used to mount TS-CZ5-2 diffuser glass. |
|
|
|
■C-Mount Camera Connection Adapter (option) |
|
|
 |
C/CS Mount Camera
Camera Compatibility Supports C/CS mount CMOS cameras, including USB, NTSC, GigE, and CamaLink formats
For image capture that closely replicates the view through the eyepiece, we recommend using a USB camera with an imager size of 2/3" or larger
|
|
|
TS-SP-USB2
Camera Adapter
Compatible with TS-7LE, TS-8LEN, TS-SP series
JPY31,000 (w/o tax)
JPY34,100 (w/tax)
|
|
|
|
|
Photo image for taken by Digital Camera
| |
TS-8LEN-20 |
TS-8LEN-50 |
TS-8LEN-100 |
TS-8LEN-200 |
| tip of ballpoint pen |
 |
 |
 |
 |
| Cotton Stem |
 |
 |
n/a |
 |
| Others |
Printed Ink |
Flower |
n/a |
Flower |
Dandelion's fluff |
n/a |
n/a |
Dandelion's fluff |
|
|
|
