Zoom Pocket Microscope with LED Illumination SCORPION-Ⅰ/SCORPION-Ⅱ

TS-SP-01/TS-SP-02

Compact, Powerful, and Always Ready to Go

Experience high-quality magnification in the palm of your hand. The SCORPION series is a portable zoom microscope designed for professionals and enthusiasts alike.

■	Pocket-Sized Convenience
	Lightweight and compact: 137.2?180.0 mm (length), Max O30.0 mm, 160 g.
■	Vari focal (Adjustable) Zoom with Upright Image
	TS-SP-01: 30x - 50x TS-SP-02: 70x - 100x Thanks to its roof prism design, the microscope displays an upright image, making observation as intuitive as using a loupe.

■	Crisp White LED Illumination
	Equipped with 8 high-brightness LEDs and anti-diffusion treatment, it ensures clear, eye-friendly viewing in any environment.
■	Standard Diffuser Set Included
	Comes with three interchangeable diffusers (two clear acrylic types and one cone-shaped).
■	Camera Compatibility (Optional Accessories)
	Attach a C/CS mount camera using the optional TS-SP-USB2 adapter. View or capture images on a monitor or PC. Smartphone photography is also possible with a standard adapter.

Please download the catalog from here

■Captured Images

Collapted Screwdriver
TS-SP-01　40x

Metal Surface Dent
TS-SP-01　50x

Seeds and Petals
TS-SP-01　50x

■Pocket Microscope with LED Illumination SCORPION-Ⅰ/SCORPION-Ⅱ Scope

P/N	Description	Magnification	Length	Diameter	Weight	Price w/o tax (JPY)	Price w/tax (JPY)
TS-SP-01	SCORPION-Ⅰ	30x to 50x	180.0 to 137.2mm	Max30.0　Min23.3mm	160g	65,000	71,500
TS-SP-02	SCORPION-Ⅱ	70x to 100x	180.0 to 137.2mm	Max30.0　Min23.3mm	160g	66,000	72,600


Adjustable Magnification Slide the barrel to zoom in or out with ease.	8 White LEDs Bright, uniform illumination for clear visuals.	Proetctive Eye-cap Soft rubber cap for comfort and eye protection.	Battery Box with light control Adjustable brightness via built-in power box.	Cone Diffuser Base Enables angled viewing with enhanced depth.

■Scale (option)

Option: Scale (with frame) at the object side

TS-SP-M1

0.05mm Scale plate

JPY6,000(w/o tax)
JPY6,600(w/tax)

Option: Scale (with frame) at the object side

TS-SP-M2

0.1mm Scale plate

JPY6,000(w/o tax)
JPY6,600(w/tax)

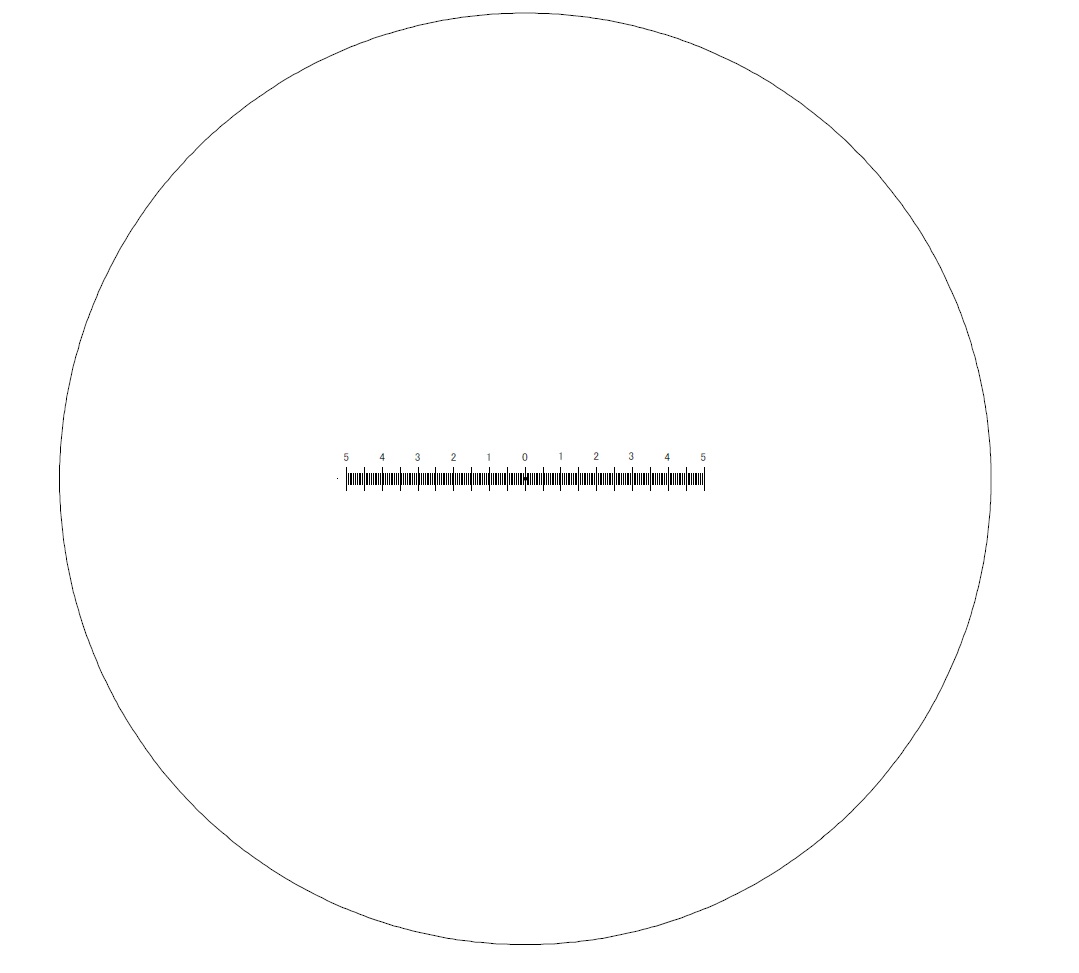

TS-SP-M1

You can see larger image if you click above image.

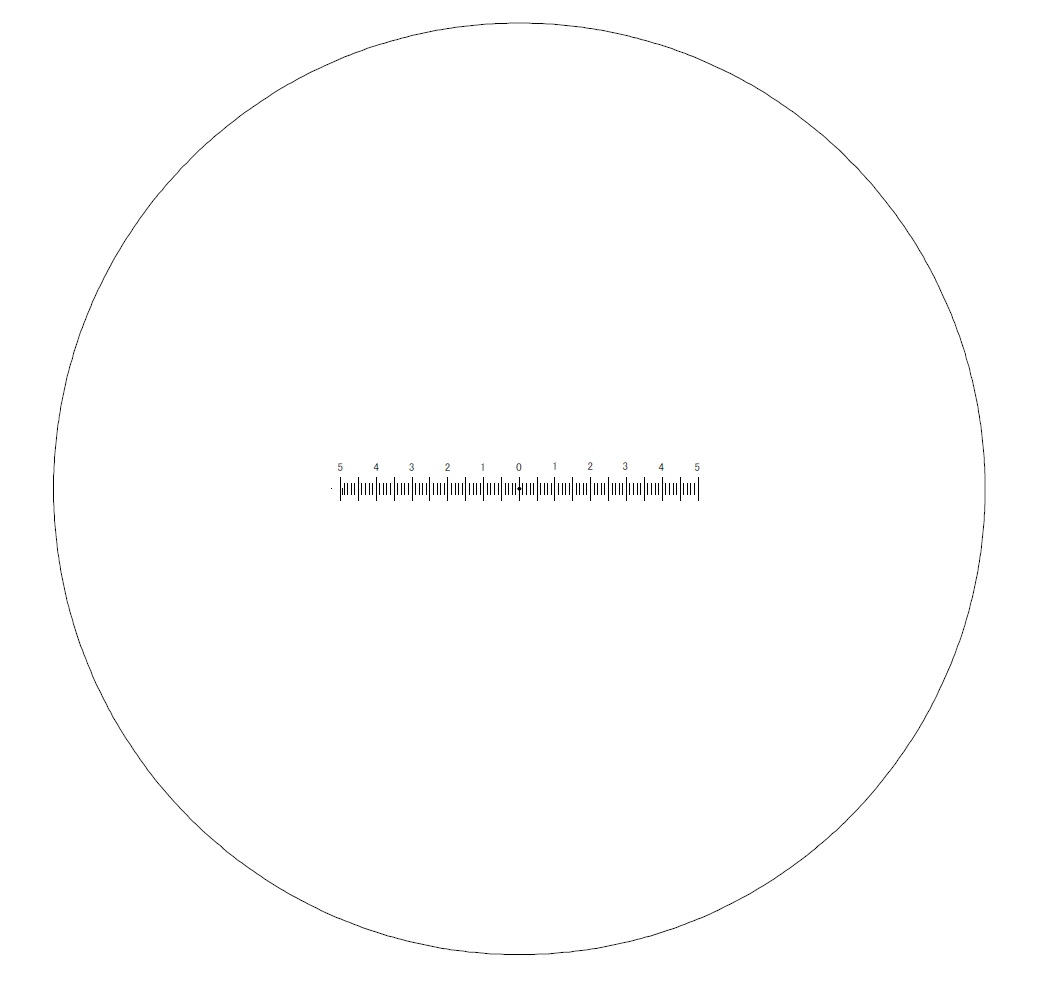

TS-SP-M2

You can see larger image if you click above image.

■C-Mount Camera Connection Adapter (option)

C/CS Mount Camera

Camera Compatibility Supports C/CS mount CMOS cameras, including USB, NTSC, GigE, and CamaLink formats

For image capture that closely replicates the view through the eyepiece, we recommend using a USB camera with an imager size of 2/3" or larger.

TS-SP-USB2

Camera Adapter

Compatible with TS-7LE, TS-8LEN, TS-SP series

JPY31,000 (w/o tax)
JPY34,100 (w/tax)
