TS-XL-CZ5 |
|
|
Macro Zoom Lens System composed
by TS-93003N-CZ5 Macro Zoom Lens |
 |
| ■ |
Basic set composed of 8x Macro Lens TS-93003N-CZ5 and peripheral devices |
|
8x Macro Zoom Lens, Camera, LED Ring Light, Stand, XY Stage. |
| ■ |
Zoom ratio 8x Optical Mag. O.65x to 5.2x WD=39.5mm |
|
We achieved low Mag. Macro system which enables from wide range shooting to zoom up. |
| ■ |
Small size/light weight/high versatility |
|
Macro Zoom Lens System with high versatility, composed with small and light
simple Barrel. |
| ■ |
Built-in tripartition multi type LED Ring Light (TS-LAX-CZ5MLAC) |
|
18pcs high illuminance white LEDs are divided to three parts, able to control
brightness.
There is no tripartition standard type too (TS-LA-CZ5WT/TS-LA-CZ5YL) |
| ■ |
Applicable to long WD (working distance) too (option) |
|
By adding Front Converter , WD becomes longer. (magnification becomes low) |
| ■ |
Substantial Peripheral Devices |
|
We prepared substantial peripherals of Cameras, Illuminations, Auxiliary
Lenses, Stands. |
|
|
|
|
■Basic set
● Basic set include TS-93003N-CZ comes with LED light
|
| Set P/N |
Description |
Includes |
Price w/o tax
(JPY) |
Price w/tax
(JPY) |
TS-93003N-CZ5WT-SET
or
TS-93003N-CZ5YL-SET |
8x Zoom White LED set
or
8x Zoom Yellow LED set |
･TS-93003N-CZ5
･TS-LA-CZ5WT or TS-LA-CZ5YL |
177,500 |
189,750 |
| TS-93003N-CZ5MLAC-SET |
8x Macro Zoom Lens with Multi-LED set |
･TS-93003N-CZ5
･TS-LAX-CZ5MLAC |
210,000 |
231,000 |
| TS-C&S-140-SET |
1.4M Camera & Stand set |
･STC-MC152USB
･XYZ Stand (TS-P20XYZ) |
174,400 |
191,840 |
| TS-C&S-120-SET |
1.2M Camera & Stand set |
･STC-MC133USB
･XYZ Stand (TS-P20XYZ) |
164,800 |
181,280 |
| TS-C&S-038-SET |
0.38M Camera & Stand set
This set will be obsolete once the camera stock will be over |
･WAT-250D2
･XYZ Stand (TS-P20XYZ) |
125,400
カメラ在庫終了次第、販売終了 |
137,940 |
| |
|
|
■Specification of Lenz (TS-93003N-CZ5) |
| Specification of Lens |
| P/N |
TS-93003NI |
| Magnification range |
0.65x - 5.2x |
| Zoom ratio |
8.0x |
| Object to image distance |
166.4㎜ |
| WD |
39.5mm (from edge of barrel to object) |
| Size of Lens Barrel |
- |
| Mount |
C-Mount |
| Supporting CCD sensor size |
1/2", 1/3", 1/4" |
| Optical magnification |
0.66x |
1.50x |
5.10x |
| F-Number | Object side |
16.7 |
7.3 |
2.9 |
| Image side |
11.0 |
11.0 |
15.0 |
| Numerical Aperture | Object side |
0.030 |
0.068 |
0.170 |
| Image side |
0.045 |
0.045 |
0.033 |
| Image circle | Object side |
Dia.12.1 |
Dia.5.3 |
Dia.1.6 |
| Image side |
Dia.8.0 |
Dia.8.0 |
Dia.8.0 |
| Depth of field | Object side |
0.57 |
0.10 |
0.01 |
| Image side |
0.25 |
0.22 |
0.35 |
| Resolution TVL/mm | Object side |
75.9TVL |
165.0TVL |
357.0TVL |
| Image side |
115TVL |
110TVL |
70TVL |
| TV distortion |
+0.07% or less |
+0.08% or less |
+0.09% or less |
| Weight |
- |
| External dimension |
Dia.40 (At Stand Adapter mounting position) x 142mm to 152mm |
|
| Magnification |
| Optical Mag. |
1/2" CCD/CMOS |
1/3" CCD/CMOS |
1/4" CCD/CMOS |
| Monitor Mag. |
View range |
Monitor Mag. |
View range |
Monitor Mag. |
View range |
| 0.65x |
30.96x |
7.48 x 9.97mm |
41.8x |
5.61mm x 7.48mm |
55.03x |
4.21mm x 5.61mm |
| 0.7x |
33.34x |
6.94 x 9.26mm |
44.45x |
5.21mm x 6.94mm |
59.27x |
3.90mm x 5.21mm |
| 1.0x |
47.63x |
4.86 x 6.48mm |
63.5x |
3.64mm x 4.86mm |
84.67x |
2.73mm x 3.64mm |
| 2.0x |
95.25x |
2.43 x 3.24mm |
127x |
1.82mm x 2.43mm |
169.33x |
1.3mm x 1.82mm |
| 3.0x |
142.88x |
1.62 x 2.16mm |
190.5x |
1.21mm x 1.62mm |
254x |
0.91mm x 1.21mm |
| 4.0x |
190.5x |
1.21 x 1.62mm |
254x |
0.92mm x 1.21mm |
338.67x |
0.68mm x 0.92mm |
| 5.2x |
247.65x |
0.93 x 1.25mm |
330.2x |
0.70mm x 0.93mm |
440.27x |
0.53mm x 0.70mm |
|
|
|
|
■Optional Items |
Front Converter for TS-93003(old version)
(Note：When using with TS-93003NIk the image can be eclipsed when observing in lower magnifications.） |
|
Magnification and WD will change, please put this in front of Lens. |
| P/N |
TS-WD-50 |
TS-WD-75 |
TS-WD-100 |
| W.D. |
50mm |
75mm |
100mm |
| Optical Magnifications |
0.400 to 3.240x |
0.280 to 2.240x |
0.214 to 1.712x |
| Price(JPY) |
8,500(w/o tax)
9,350 (w/ tax) |
8,500(w/o tax)
9,350 (w/ tax) |
8,500(w/o tax)
9,350 (w/ tax) |
 |
 |
 |
 |
|
| Extender Lens |
|
Able to change magnification without changing WD (brightness will change)
please attach at the back of (C-mount) Lens |
| P/N |
TS-EX-15 |
TS-EX-20 |
TS-EX-30 |
TS-EX-50 |
| Description |
1.5x Extender |
2.0x Extender |
3.0x Extender |
5.0x Extender |
| Price(JPY) |
11,000(w/o tax)
12,100(w/ tax) |
12,000(w/o tax)
13,200(w/ tax) |
20,000(w/o tax)
22,000(w/ tax) |
27,000(w/o tax)
29,700(w/ tax) |
 |
 |
 |
 |
 |
* Please note : When you use TS-EX-30/TS-EX-50, image becomes extremely
dark.
|
| Filters |
| Depend on the object you observe, you can choose filters from below. |
|
 |
 |
 |
 |
| P/N |
TS-CZ5-1 |
TS-CZ5-2 |
TS-CZ5-3 |
TS-CZ5-4 |
| Description |
Dia.44 Filter Cover Ring |
Dia 39.5 Donut Shape Diffuser Glass |
Dia. 39.5 Donut Shape Polarizing Glass |
Dia.18 Polarizing Adapter for Lens |
| Price(JPY) |
6,500(w/o tax)
7,150(w/tax) |
4,500(w/o tax)
4,950(w/tax) |
8,500(w/o tax)
9,350(w/tax)
obsolete once stock will be over |
7,000（w/o tax）
7,700(w/tax) |
| Application |
This can hold either TS-CZ5-2 difusser glass or TS-CZ5-3 polarizing glass
to avoid strong reflection of light of TS-8LEN series or LED light of TS-CZ5
series. |
Using this difusser in order to illuminate the light evenly. It goes well
with specular objects |
It goes well when observing crystal and transparent objects to avoid reflection
of the light |
Attaching this filter in front of the macro zoom lens with filter
size as Dia.18㎜ |
| Applicable P/N |
TS-LA-CZ5WT/TS-LA-CZ5YL/TS-LAX-CZ5MLAC/TS-8LEN series |
TS-93003N-CZ5, TS-93003N |
|
|
|
■LED Ring Illumination
 |
| P/N |
TS-LA-CZ5WT |
TS-LA-CZ5YL |
TS-LAX-CZ5MLAC |
| Description |
Cool White LED Ring Light |
Warm White LED Ring Light |
Multi LED Ring Light |
| LED Element |
18pcs Bright Cool White LED |
18pcs Bright Warm White LED |
18pcs Bright Cool White LED |
| Specification |
Normal Type |
Normal Type |
Controllable by Tripartition(6pcs x 3) |
| Accessories |
Power Supply not included |
Power Supply not included |
TS-LX-LCC Battery Holder
TS-WL5M-AC AC Adapter |
| Price(JPY) |
25,000(w/o tax)
27,500 (w/tax) |
25,000(w/o tax)
27,500 (w/tax) |
75,000(w/o tax)
82,500 (w/tax) |
|
TS-93003N-CZ+USB Camera |
TS-LA-CZ5WT/TS-LA-CZ5YL |
TS-LAX-CZMLAC
(TS-LX-LCC,TS-WL5M-AC) |
|
|
|
■Power Supply for LED Ring Illumination |
| P/N |
TS-LACLC-2 |
TS-USBLC-2 |
TS-8L-LCCN |
| Description |
AC Power Supply and control for LED light |
USB Power Supply and control for LED light |
Battery Box with light control |
| Power source |
AC Adapter |
Supply from USB port |
Battery Box (AA battery x 4 pcs) |
| Price(JPY) |
17,500(w/o tax)
19,250 (w/tax) |
17,500(w/o tax)
19,250 (w/tax) |
9,300(w/o tax)
10,230 (w/tax) |
|

 |
| |
|
■Standard ring LED set
TS-93003N-CZ5WT-SET
TS-93003N-CZ5YL-SET |
*camera is optional |

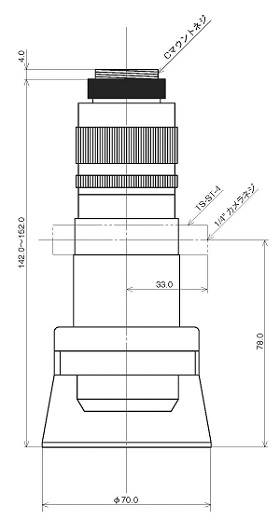

Drawing with Normal LED Illumination (TS-93003N-CZ5WT&YL-SET) |
■Multi ring LED set
TS-93003N-CZ5MLAC-SET |
*camera is optional |
|
TS-93003N-CZ5 |
|
TS-LAX-CZ5MLAC |
Total Amount:JPY210,000(w/o tax)
JPY231,000( w/ tax) |
|
Drawing with Multi LED Ring Light (TS-93003N-CZ5MLAC-SET) |
|
|
|
|
|
|
| ■TS-C&S-120-SET |
|
|
STC-MC133USB |
| camera accessory |
CAB-USB-02-MB |
|
TS-P20XYZ |
 |
TS-SA-4 |
Total Amount:JPY164,800(w/o tax)
JPY 181,280( w/ tax) |
|
|
| ■TS-C&S-038-SET |
|
|
WAT-250D2
this product will be obsolete once our stock will be over。 |
| Camera Accessory |
|
|
|
TS-P20XYZ |
|
TS-SA-4 |
This product set will be obsolete once WAT-250D2 stock will be cleared
Total Amount:JPY125,400(w/o tax)
JPY137,940( w/ tax) |
|
|
| |
|
Drawing with Normal LED Illumination (TS-LA-CZ5WT) |
|
