| TS-HM-25/TS-HM-60/TS-HM-120 |
|
|
| The Handy Micrometer with LED Illumination is a compact, versatile, and
easy-to-use measuring microscope, designed for a wide range of precision
inspection tasks. Whether you're inspecting printed circuit boards (PCBs),
electronic components, metal parts, or printed characters, this device
offers the accuracy, portability, and convenience required for professional
and industrial applications. |
 |
| ■ |
All-in-One Design: No Cables, No Hassles |
|
Unlike conventional microscopes that require external power sources or separate lighting units, this handheld microscope features a fully integrated design. The LED illumination system and battery are built directly into the unit, eliminating the need for cumbersome cables and enabling completely wireless operation. Its portability and ease of use make it ideal for use in fieldwork, manufacturing floors, and quality control environments. |
| ■ |
Upright Image for Natural Viewing |
|
Traditional microscopes often invert or flip the image, making it challenging
to align and manipulate the sample during inspection. The Handy Micrometer
solves this issue by incorporating a roof prism in its optical system,
which presents the viewer with an upright, unreversed image. This feature
allows users to observe objects in a way that mimics direct viewing, making
it much easier to operate and perform precise measurements or alignments. |
| |
 |
| ■ |
Advanced LED Multi-Function Illumination System |
|
Equipped with nine high-quality white LEDs, this microscope offers adjustable
illumination in three selectable lighting sequences. Brightness levels
can also be fine-tuned to suit the needs of the object being inspected.
This lighting configuration enhances depth perception and contrast, making
it possible to observe surface textures, edges, and fine details with greater
clarity and a more stereoscopic view. |
| ■ |
Integrated Measurement Scale |
|

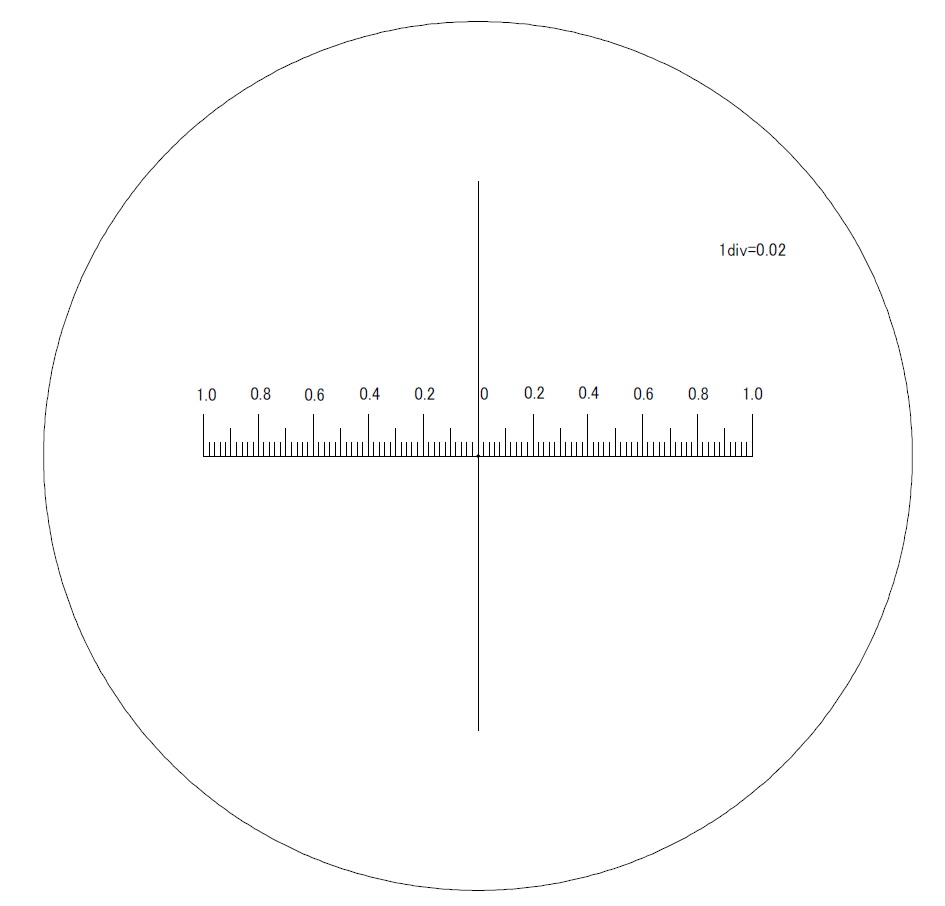

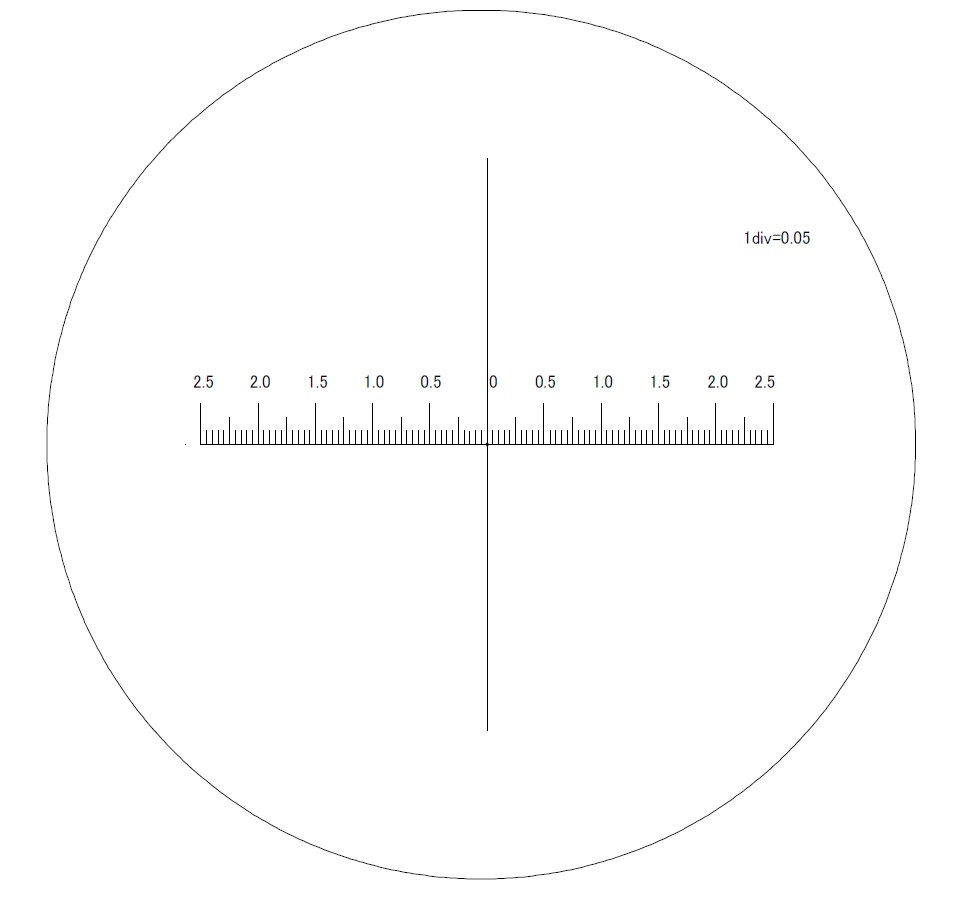

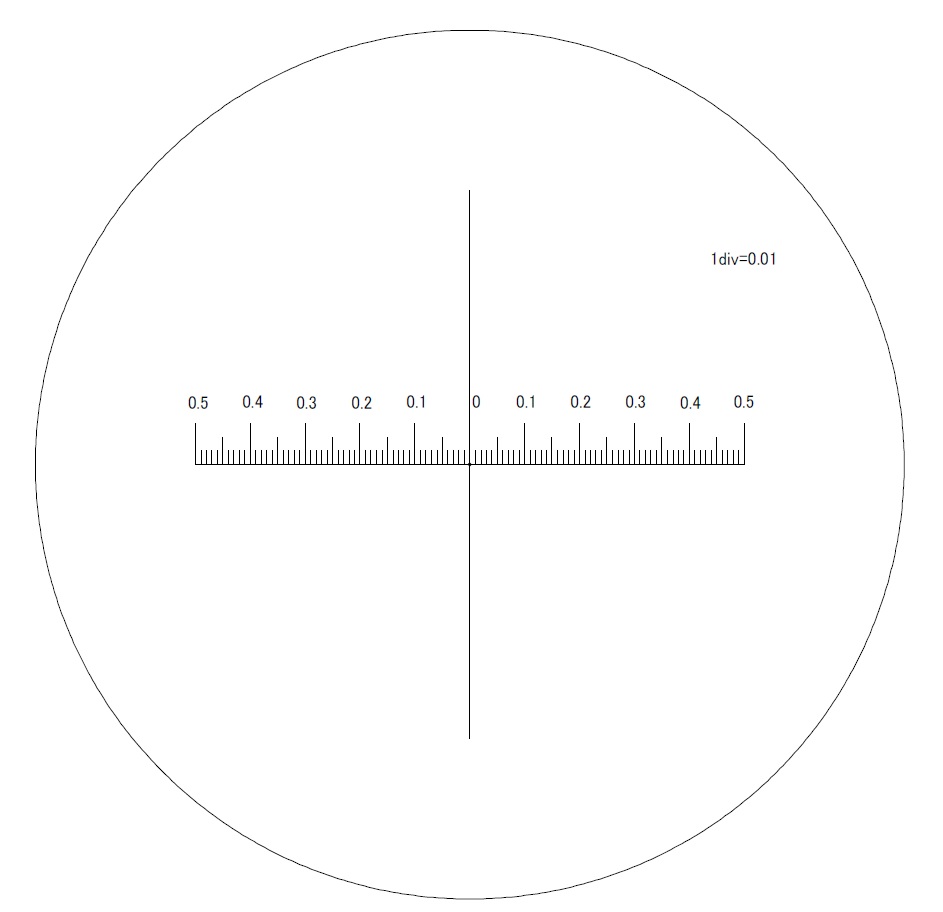

At the heart of the Handy Micrometer’s measuring capability is a precision scale embedded in the eyepiece. This scale allows users to measure object dimensions directly during visual inspection. The minimum measurement scales vary by model?0.05mm for TS-HM-25, 0.02mm for TS-HM-60, and 0.01mm for TS-HM-120?ensuring precise readings for a variety of applications. |
| ■ |
Camera Adaptability for Digital Integration |
|
For users who require digital documentation or real-time image display,
an optional camera adapter (TS-HM-USB) is available. This accessory enables
mounting of C-mount or CS-mount digital cameras, allowing the image to
be displayed on a monitor or saved to a PC. Additionally, with a commercially
available smartphone adapter, users can also take photos or videos directly
using their mobile devices. This makes the Handy Micrometer a powerful
tool for reporting, training, and sharing inspection results. |
|
| |
Please download the catalog from here  |
|
|
| ■Applications |
| This Handy Micrometer is ideal for industries where detailed inspection
and dimensional accuracy are essential. Its compact size, integrated lighting,
and high-resolution optics make it especially suitable for: |
| ■ |
PCB and electronic circuit inspection |
| ■ |
Checking solder joints, micro-components, and leadframes |
| ■ |
Verifying printed characters and labels |
| ■ |
Inspecting machined metal parts or surface finishes |
| ■ |
On-site quality control or service diagnostics |
|
| ■Summary |
| With its cable-free operation, upright imaging, adjustable LED lighting,
and integrated measurement tools, the Handy Micrometer is a powerful and
user-friendly solution for professionals who need precision inspection
on the go. By offering digital camera adaptability and multiple magnification
options, this device meets the demanding needs of modern manufacturing,
inspection, and research environments. |
|
|
|
| ■Model Variants and Specifications |
| The Handy Micrometer is available in three magnification models: |
|
| P/N |
Description |
Magnification |
E.F.V. (Effective Field of View) |
Minimum Scale |
Measurement range |
Price w/o tax
(JPY) |
Price w/tax
(JPY) |
| TS-HM-25 |
Handy Micrometer 25x |
25x |
7.2mm |
0.05mm |
5.0mm |
89,900 |
98,890 |
| TS-HM-60 |
Handy Micrometer 60x |
60x |
3.0mm |
0.02mm |
2.0mm |
89,900 |
98,890 |
| TS-HM-120 |
Handy Micrometer 120x |
120x |
1.8mm |
0.01mm |
1.0mm |
91,000 |
100,100 |
|
|
|
|
|
|
|
|
|
|
■C mount Camera Connection Adapter (optional) |
|
|
|
|
|
|
■Mount to Camera Stand (option) |
|
TS-P22Z Small size Stand for Microscope
34,000(w/o tax) / 37,400(w/tax)
 |
|
|
