TS-XL-CZ10 |
|
|
| 3x Zoom /Cool white LED/Weight 234g/Excellent feeling of use /At any place for any work |
 |
| ■ |
"All in one" Macro Zoom Lens with cool white LED in tiny body. |
|
TS-XL-CZ10 completed by 3x Zoom Lens, Cool white LED ring light and Battery Box with light control allows you to use instantly without any complicated adjustment. |
| ■ |
Compact body/Light weight that can fit in your pocket! |
|
With it's compact body (Dia.45 x L116mm) and light weight(234g) that can
even fit in your poket or bag so you can carry around anywhere you need.
Also high quality macro zoom lens allows you observe objects easily. |
| ■ |
TS-XL-CZ10 is using professionaly used 3x macro zoom lens |
|
Optical Magnification 1.0x to 3.0x Macro Zoom Lens with 3x Magnification
ratio that is used by industrial professionals and researchers |
| ■ |
Applicable with C/CS mount with 1/2inch or less Cameras |
|
TS-XL-CZ10 can be used C/CS mount cameras include USB cameras, NTSC Cameras,
GigE Cameras, that has less than 1/2inch. |
| ■ |
High Magnification by Optional Lens |
|
Magnification will goes up by adding Extender Lens. |
|
|
| ■Examples: By clicking the image, you can check larger image. |

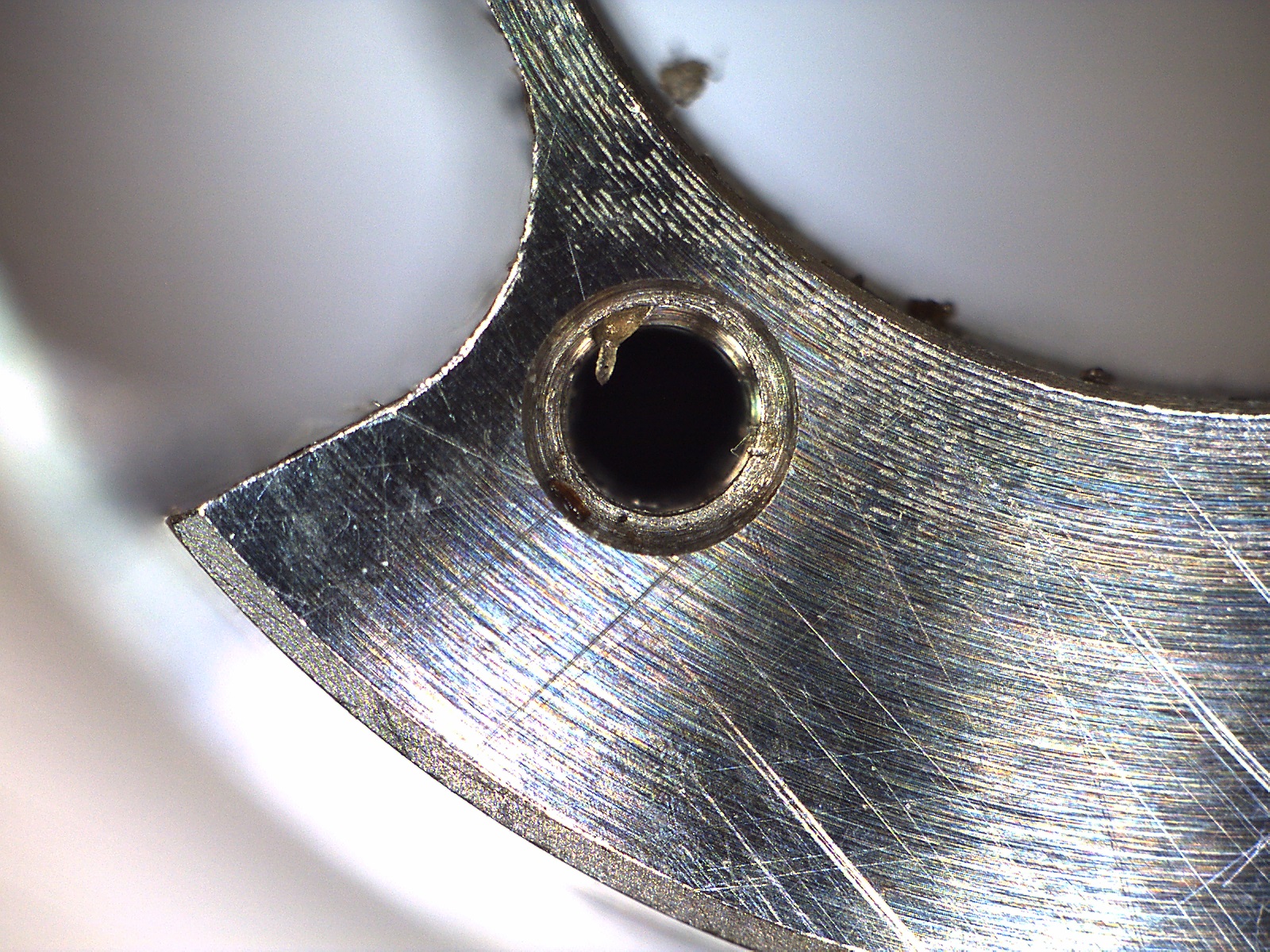

Metal burr
Optical Mag. 1.0x |

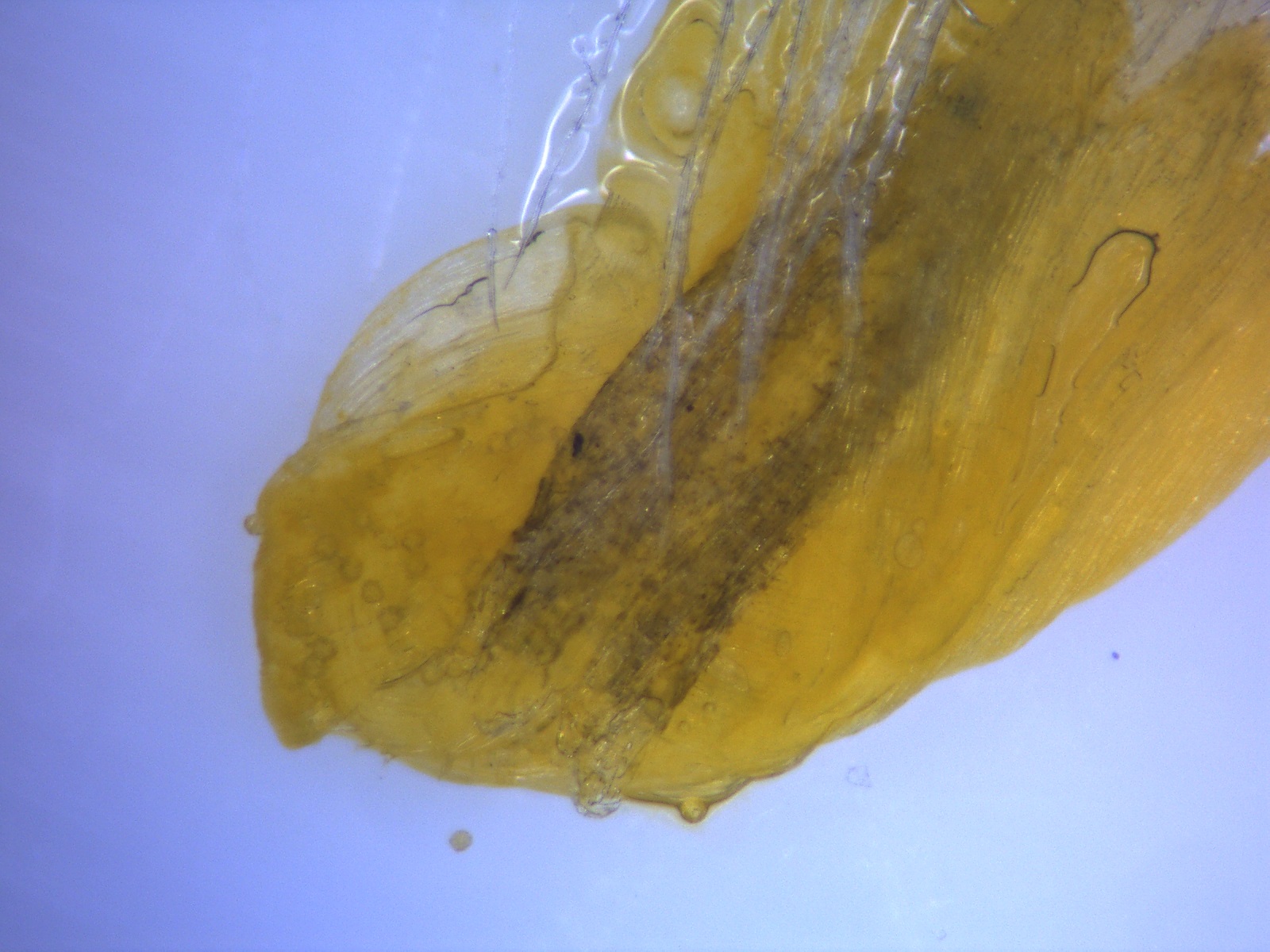

Flower pistil
Optical Mag. 1.5x
|

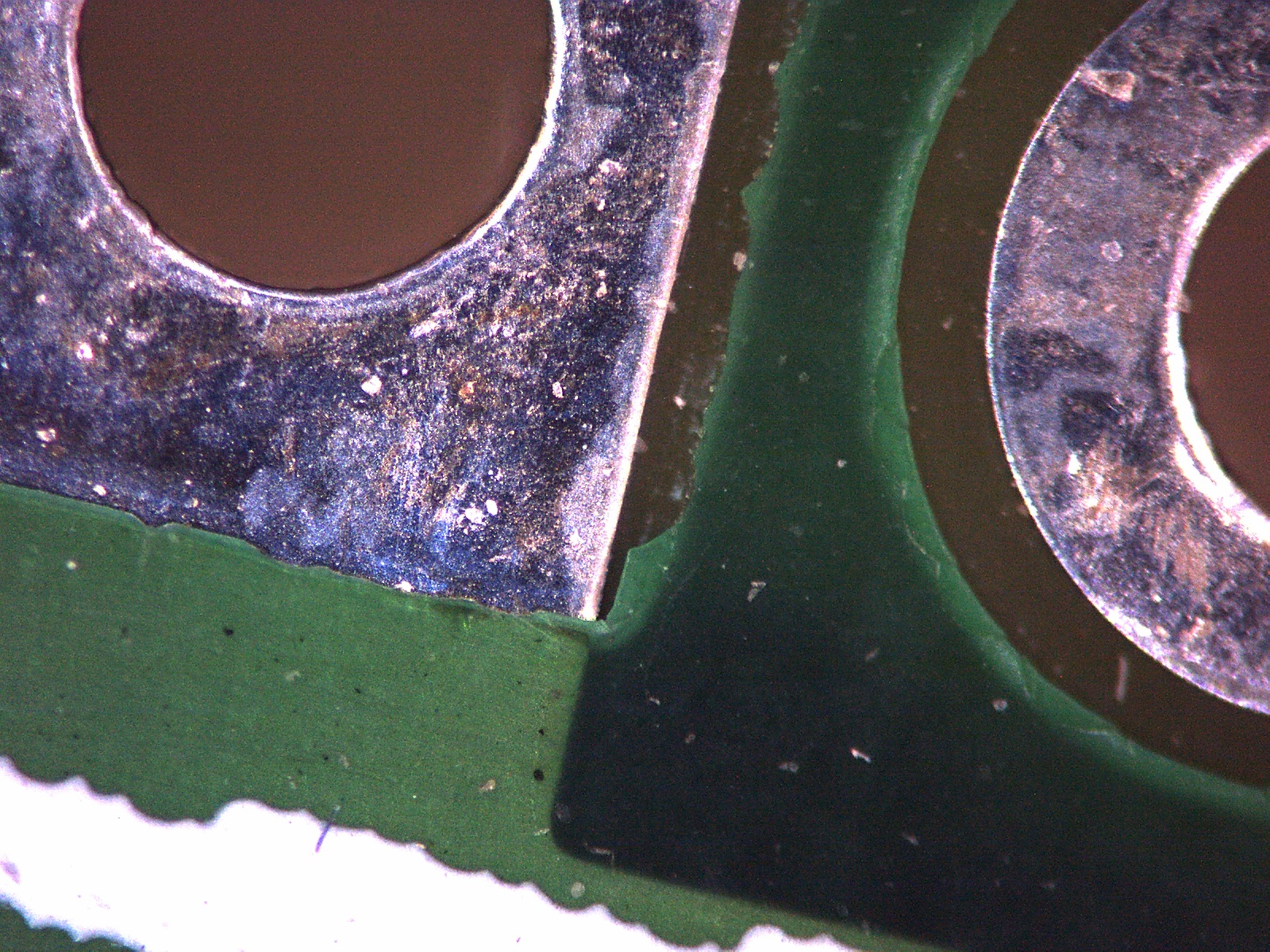

PCB hole
Optical Mag. 3.0x |

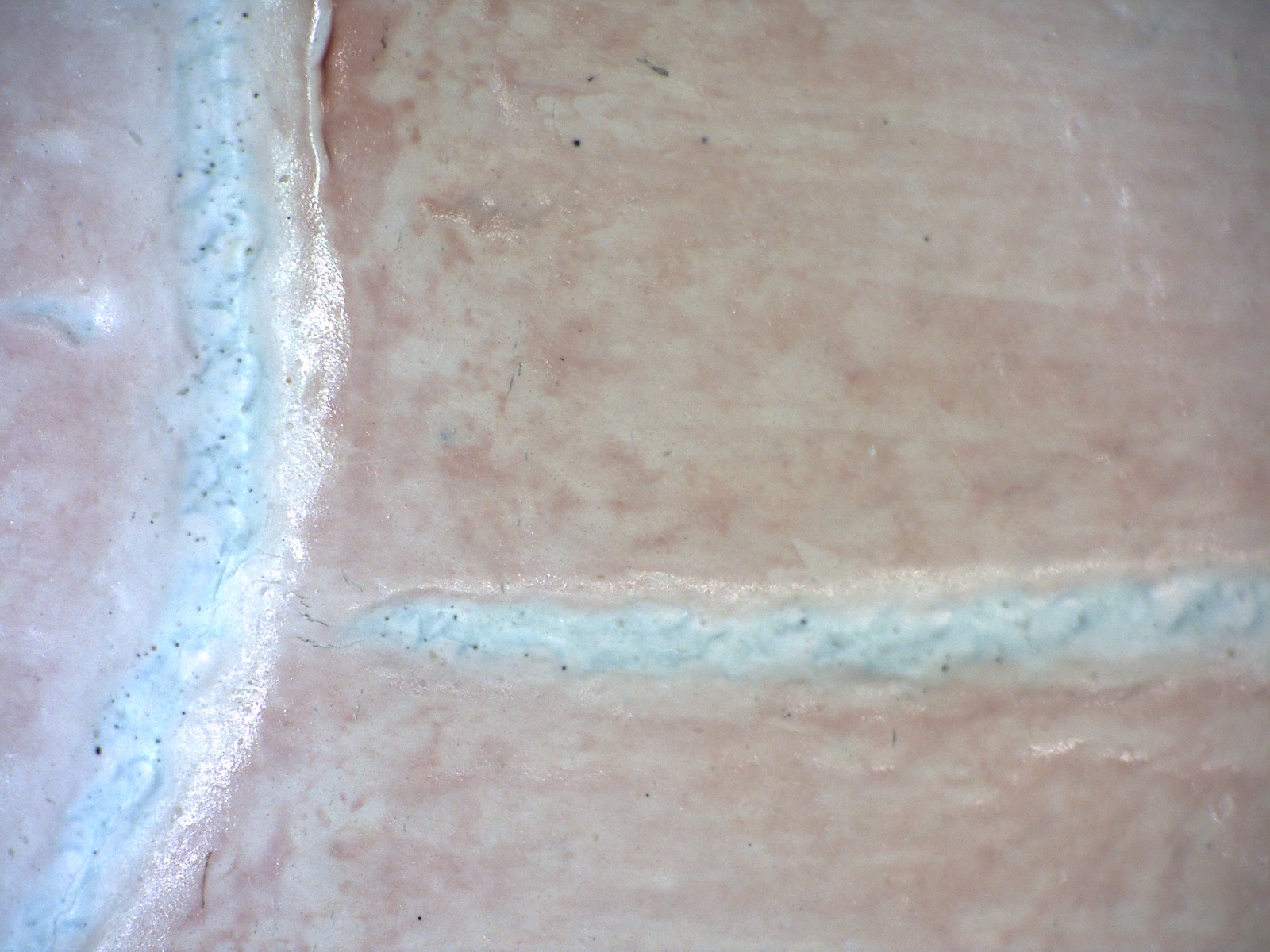

Human skin
Optical Mag. 1.5x |

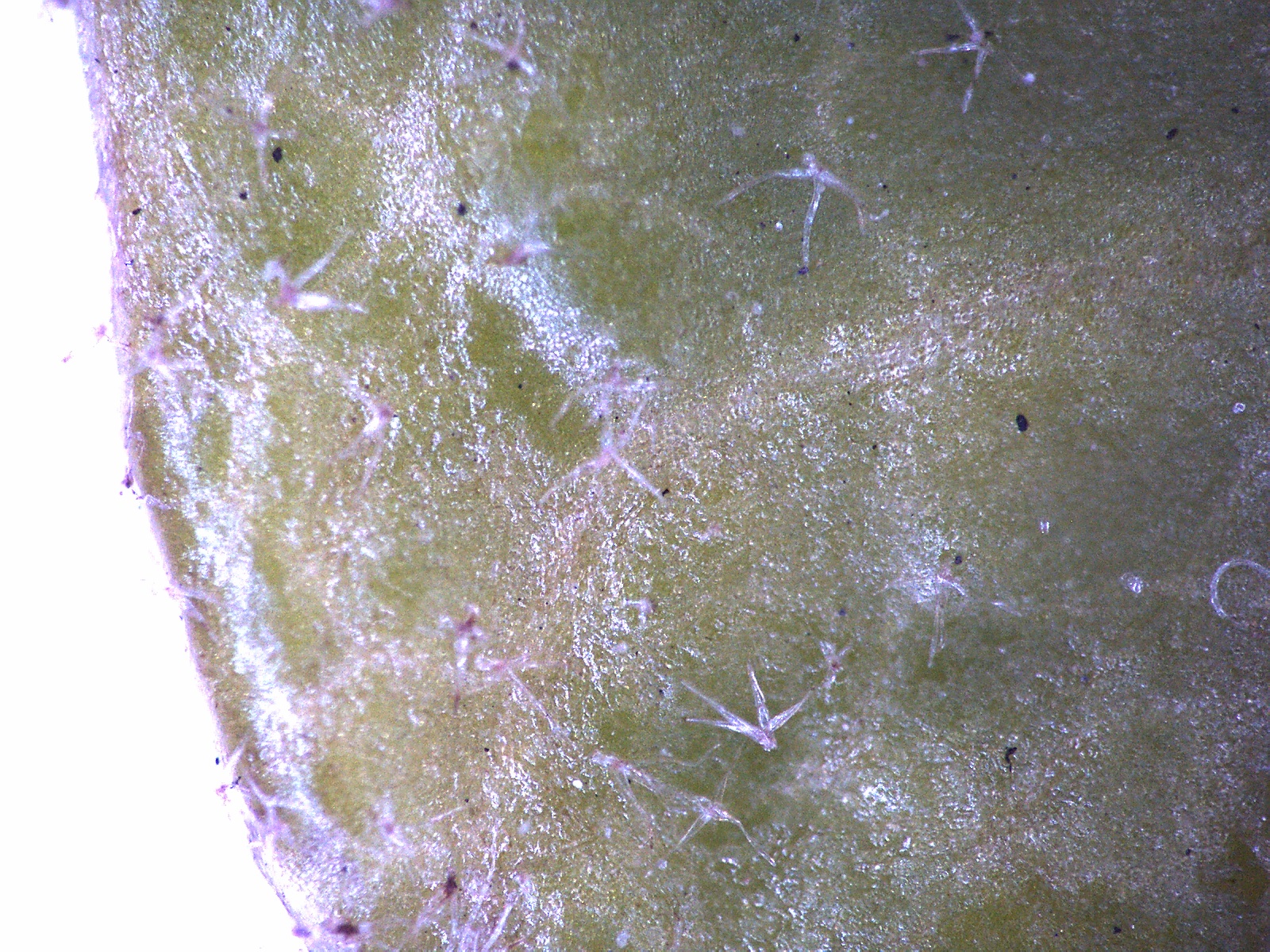

Leaf trichome
Optical Mag. 2.0x |
|
| Lens Specification |
| P/N |
TS-XL-CZ10 |
| Magnification range |
1x - 3.0x |
| Zoom ratio |
3.0x |
| WD |
24.9㎜ (from surface of Lens to object) |
| Mount |
C-Mount |
| Supporting CCD sensor size |
1/2", 1/3", 1/4" |
| Optical magnification |
1.0x |
3.0x |
| Depth of field (mm) |
0.7 |
0.15 |
| Resolution at object side (TVL/mm) |
80TVL |
228TVL |
| Weight |
234ｇ |
| External dimension |
Dia.45 x 116mm |
| Accompanying items |
White Color LED light / Battery Box with light control |
| Price(JPY) |
135,000 (w/o tax)
148,500 (w/tax ) |
|
 |
|
|
| Magnification |
| Optical Magnification |
1/2" CCD/CMOS |
1/3" CCD/CMOS |
1/4" CCD/CMOS |
| Monitor Magnification |
Field of view |
Monitor Magnification |
Field of view |
Monitor Magnification |
Field of view |
| 1.0x |
47.63x |
4.86mm x 6.48mm |
63.5x |
3.64mm x 4.86mm |
84.67x |
2.73mm x 3.64mm |
| 2.0x |
95.25x |
2.43mm x 3.24mm |
127.0x |
1.82mm x 2.43mm |
169.3x |
1.37mm x 1.82mm |
| 3.0x |
142.88x |
1.62mm x 2.16mm |
190.5x |
1.21mm x 1.62mm |
254.0x |
0.91mm x 1.21mm |
|
You can pick your camera from below:
https://www.sugitoh.com/english/product/camera.html |
|
|
|
■Option Lens |
| Extender Lens (option) |
|
Able to change Magnification without changing WD (brightness will change)
please attach to behind of (C-Mount) Lens |
| P/N |
TS-EX-15 |
TS-EX-20 |
TS-EX-30 |
TS-EX-50 |
| Description |
1.5x Extender |
2.0x Extender |
3.0x Extender |
5.0x Extender |
| Price(JPY) |
11,000(w/o tax)
12,100(w/ tax) |
12,000(w/o tax)
13,200(w/ tax) |
20,000(w/o tax)
22,000(w/ tax) |
27,000(w/o tax)
29,700(w/ tax) |
 |
 |
 |
 |
 |
* Please note when use TS-EX-30 and TS-EX-50, image becomes extremely dark.
|
