| TS-93005/TS-93006/TS-93007/TS-93022/TS-93002Ni/TS-93003Ni |
|
|
| 6 Types of 8 x Magnification Macro Zoom Lens Low Magnification, High Magnification,
Long W.D. |
 |
| ■ |
8x Zoom Ratio |
|
By Zoom Ratio of 8 x, you can use by wide range of Magnification. |
| ■ |
6 types with different magnification range are listed on lineup |
|
You can choose suitable magnification according to your usage from 6 kinds
of magnification range. |
| ■ |
Silver Barrel series designed for Microscope |
|
Sophisticated design enthusiastic about functionality, ideal for Microscope
use. |
| ■ |
With Aperture Stop |
|
Equipped with Aperture Stop, very convenient to adjust brightness and depth of the field. |
| ■ |
Magnification adjustment by Auxiliary Lenses (Option) |
|
You can adjust by optional Extender Lenses and Front Convertor Lenses. |
|
|
|
|

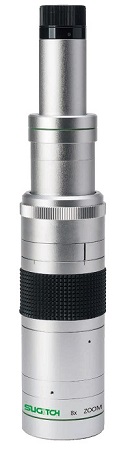

■High resolution series （Zoom Lens for Microscope）  |
 |
■Ideal for users who want microscope-level resolution with a long WD.
■Wide magnification range (zoom magnification ratio 8x). Long working distance
makes it easy to work on the workpiece.
■The number of lenses has been significantly increased compared to our previous 8x zoom lens, resulting in an even higher resolution lens. The resolution performance at maximum magnification is twice that of the previous model, achieving diffraction-limited resolution.
■Thoroughly suppresses chromatic aberration and spherical aberration, and
the contrast is very sharp. Images are bright and clear even when zoomed
in.
■Plans to introduce new accessories in the future, such as a coaxial epi-illumination
tube |
| Lens Specifications |
| Product Number |
TS-93030 |
| Zoom Position |
Wide |
Middle |
Tele |
| Zoom Ratio |
8X |
| Optical Magnifications |
0.8X |
2.25X |
6.4 |
| F of V （V×H mm） |
2/3” |
8.3 |
11.0 |
2.9 |
3.9 |
1.0 |
1.4 |
| 1/2” |
6.0 |
8.0 |
2.1 |
2.8 |
0.8 |
1.0 |
| 1/3” |
4.5 |
6.0 |
1.6 |
2.1 |
0.6 |
0.8 |
| 1/4” |
3.4 |
4.5 |
1.2 |
1.6 |
0.4 |
0.6 |
| WD（mm） |
84 |
| Object to Image distance O/I（mm） |
356.3 |
| NA |
Object side |
0.04 |
0.11 |
0.18 |
| Image side |
0.05 |
0.05 |
0.03 |
Resolution
（μm） |
Object side |
8.39 |
2.97 |
1.92 |
| Image side |
6.71 |
6.71 |
11.77 |
| Resolving Power (lines/mm) |
Object side |
119 |
337 |
522 |
| Image side |
149 |
149 |
85 |
|
Go to details |
|
|
|
|
■Silver Barrel Series (Zoom Lens for Microscope) |
|
■Wide Magnification range (Zoom Ratio 8x), Long W.D.
■Designed as Zoom Lens for Microscope
■Extender Lenses and Front Convertor Lenses allows you to adjust the magnification
to your favorable one.
■Small and light weight that can ideal as a built-in lens for machines, etc.
|
|
| Specification of Lens |
| P/N |
TS-93005 |
TS-93006 |
TS-93022 |
TS-93007 |
| Supporting CCD & CMOS sensor size |
1/2", 1/3", 1/4" |
| Magnification range |
0.8x - 6.4x |
0.5x - 4.0x |
0.38x - 3.0x |
0.25x - 2.0x |
| Zoom ratio |
8.0x |
| W.D.(edge of barrel to object) （mm） |
78.78+/-5% |
128.19+/-5% |
165.61+/-5% |
242.44+/-5% |
| Depth of field （mm） |
0.3 - 0.02 |
0.79 - 0.05 |
2.42 - 0.30 |
4.80 - 0.25 |
| Object Side Resolution |
50TVL - 256TVL |
40TVL - 181TVL |
22TVL - 143TVL |
16TVL - 101TVL |
| Mount |
C-Mount |
| External dimension (mm) /weight (g) |
L152 x Dia.40 / 300 |
| Price (JPY) |
130,000(w/o tax)
143,000(w / tax) |
140,000(w/o tax)
154,000( w/ tax)
Obsolete once stock will be cleared |
140,000(w/o tax)
154,000( w/ tax) |
140,000(w/o tax)
154,000( w/ tax) |
|
Go to details |
Go to details |
Go to details |
Go to details |
|
|
|
■With LED Illumination (Zoom Lens for Microscope)
|
|
■Becomes full-fledged Microscope by adding Auxiliary LED lights (option)
and Cameras
■Extender Lenses and Front Convertor Lenses allows you to adjust the magnification to your favorable one.
|
| Lens Specification |
| P/N |
TS-93003N-CZ5 |
| Supporting CCD & CMOS sensor size |
1/2", 1/3", 1/4" |
| Magnification range |
0.650x - 5.200x |
| Zoom ratio |
8.0x |
| W.D.(edge of barrel to object) （mm） |
139.5+/-5% |
| Depth of field （mm） |
0.57 - 0.01 |
| Object Side Resolution |
50TVL - 400TVL |
| Mount |
C-Mount |
| Price (without tax) |
130,000(w/o tax)
143,000( w / tax)
(excluding Camera and LED Ring light) |
|
(excluding Camera and LED Ring light) |
|
|
|
|
|
■Black barrel series (Versatile Zoom Lens) |
|
■Small and light weight that can ideal as a built-in lens for machines, etc.
■Design putting emphasis on versatility
■Extender Lenses and Front Convertor Lenses allows you to adjust the magnification to your favorable one.
|
|
| Specification of Lens |
| P/N |
TS-93002NI |
TS-93003NI |
| Supporting CCD & CMOS sensor size |
1/2", 1/3", 1/4" |
| Magnification range |
0.1x - 0.8x |
0.650x - 5.200x |
| Zoom ratio |
8.0x |
| W.D.(edge of barrel to object) （mm） |
183.3+/-5% |
139.5+/-5% |
| Depth of field （mm） |
30.89 - 0.48 |
0.57 - 0.01 |
| Object Side Resolution |
8TVL - 64TVL |
50TVL - 400TVL |
| Mount |
C-Mount |
| External dimension （mm）/ weight (g) |
98+/-1 x Dia.32 / 110ｇ |
113+/-0.5 x Dia.32 / 100ｇ |
| Price (without tax) |
120,000(w/o tax)
132,000 ( w / tax) |
125,000(w/o tax)
137,500 (w / tax) |
|
