| TS-93030 |
Optical Magnification 0.8x to 6.4x, WD83mm, C-mount, 2/3" |
|
 |
| ■ |
Zoom ratio 8x Optical magnification: 0.8x to 6.4x WD＝84mm | |
It is implemented most needed magnification range and long Working Distance. | | ■ |
Achieves both high resolution that achieves diffraction-limited resolution
and long working distance | |
The number of lenses has been significantly increased to 22 elements compared
to the conventional product, and the resolution performance at maximum
magnification is double that of the conventional product. A macro zoom
lens that achieves the resolution of the diffraction limit. |
| ■ |
It is possible to observe a clear image with chromatic aberration and spherical aberration thoroughly suppressed. |
|
By thoroughly suppressing chromatic aberration and spherical aberration,
the contrast of the image has become extremely clear. The image is bright
and clear even when zoomed in. |
| ■ |
Silver lens barrel series designed for microscopes | |
The sophisticated design with a focus on functionality is easy to use and is ideal for microscope applications. | | ■ |
With aperture | |
With an aperture mechanism, it is convenient for adjusting brightness and
depth of field. | | ■ |
We plan to develop a full range of peripherals and in-line illumination
barrels and rear converters (optional). | |
We also have camera, LED ring light, and other accessories applicable for
this product. |
|
|
The catalog can be downloaded by clicking HERE  |
| Examples: By clicking the image, you can check larger image. |
| Object |

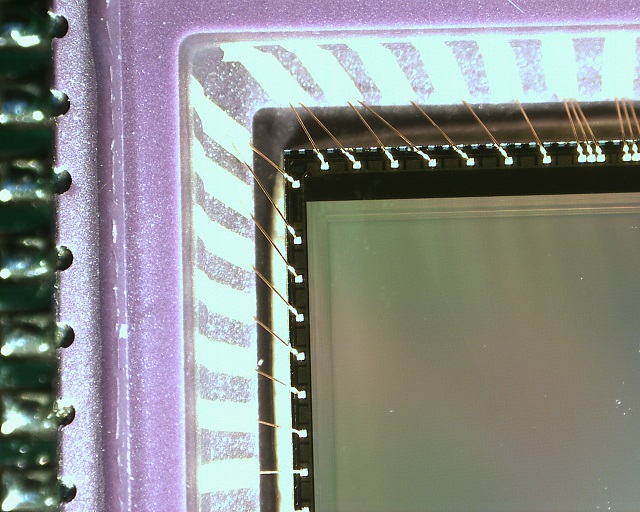

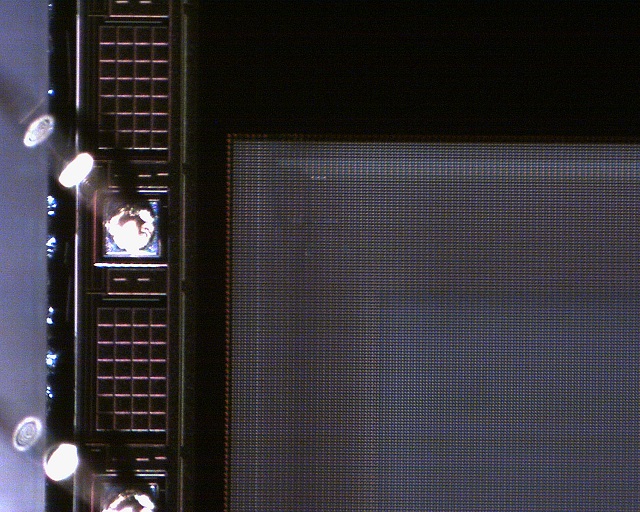

Camera sensor element |
Flower engrave of 100 yen coin |
Cerry flower of 10,000 yen bill |
Yen character of 10,000 yen bill |
| Low Mag. |
 |
 |
 |
 |
| High Mag. |
 |
 |
 |
 |
|
|
| |
| Lens Specifications |
| P/No |
TS-93030 |
| Magnification range |
0.8×-6.4× |
| Zoom ratio |
8.0 |
| Object to image distance O/I |
356.3mm |
| WD |
84㎜(edgte of barrel to object：78.78±5％) |
| Size of Lens barrel |
261.5㎜ |
| Mount |
C-mount |
| Supporting CCD size |
2/3", 1/1.8″,1/2″,1/3″,1/4″ |
| Optical Magnification |
0.8x |
2.25x |
6.4x |
| Ｆ No. |
Object side |
12.5 |
4.4 |
2.9 |
| Image side |
10.0 |
10.0 |
17.8 |
| NA |
Object side |
0.040 |
0.113 |
0.175 |
| Image side |
0.050 |
0.050 |
0.028 |
| Image circle |
Object side |
13.8 |
4.9 |
1.8 |
| Image side |
11.0 |
11.0 |
11.0 |
| Depth of field (mm) |
Object side |
±0.469 |
±0.059 |
±0.014 |
| Image side |
±0.300 |
±0.300 |
±0.550 |
Resolution
(μm) |
Object side |
8.39 |
2.97 |
1.92 |
| Image side |
6.71 |
6.71 |
11.77 |
Resolving power(lines/mm)
|
Object side |
119 Lines |
337 Lines |
522 Lines |
| Image side |
149 Lines |
149 Lines |
85 Lines |
| TV distortion |
0.38 |
0.36 |
0.32 |
| Weight |
Approx 820ｇ |
| External dimension |
φ40×152mm |
| Price |
JPY 780,000(exclude tax) |
|
|

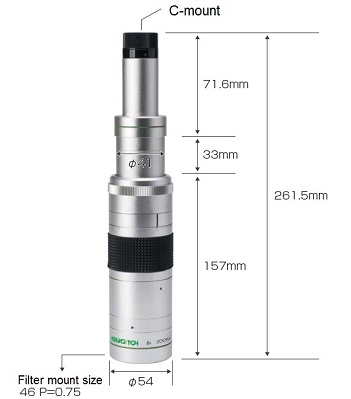

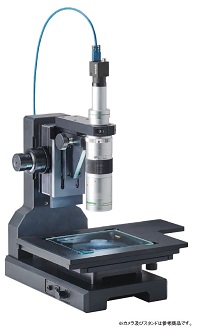

Dimension
 |
Example
(The stand is a reference product.） |
| |
| Magnification on Monitor |
| Optical Mag. |
2/3"CCD・CMOS |
1/2"CCD・CMOS |
1/3"CCD・CMOS |
1/4"CCD・CMOS |
Monitor Mag
.(x) |
Field of View
(mm) |
Monitor Mag.
(x) |
Field of View
(mm)
|
Monitor Mag.
(x) |
Field of View
(mm) |
Monitor Mag.
(x) |
Field of
View
(mm) |
| 0.8x |
27.71 |
8.3x11 |
38.10 |
6.0x8.0 |
50.80 |
4.6x6.0 |
67.73 |
3.4x4.5 |
| 1.0x |
34.64 |
6.6x8.8 |
47.63 |
4.8x6.4 |
63.50 |
3.6x4.8 |
84.67 |
2.7x3.6 |
| 1.5x |
51.95 |
4.4x5.9 |
71.44 |
3.2x4.3 |
95.25 |
2.4x3.2 |
127.00 |
1.8x2.4 |
| 2.0x |
69.27 |
3.3x4.4 |
95.25 |
2.4x3.2 |
127.0 |
1.8x2.4 |
169.30 |
1.4x1.8 |
| 3.0x |
103.91 |
2.2x2.9 |
142.88 |
1.6x2.1 |
190.50 |
1.2x1.6 |
254.00 |
0.9x1.2 |
| 4.0x |
138.55 |
1.7x2.2 |
190.50 |
1.2x1.6 |
254.00 |
0.9x1.2 |
338.70 |
0.68x0.9 |
| 5.0x |
173.18 |
1.3x1.8 |
247.65 |
0.96x1.28 |
317.5 |
0.72x0.96 |
423.30 |
0.54x0.72 |
| 6.0x |
207.82 |
1.1x1.5 |
285.75 |
0.8x1.06 |
381.0 |
0.6x0.8 |
508.00 |
0.45x0.60 |
| 6.4x |
221.67 |
1.0x1.4 |
304.80 |
0.75x1.01 |
406.40 |
0.57x0.76 |
541.90 |
0.43x0.57 |
|
