TS-93003NI |
|
|
| Optical Mag.0.65x to 5.2x, WD39.5mm, C-Mount, Supporting 1/2 inch to 1/4
inch sensor size |
 |
| ■ |
8x Zoom Ratio Optical Magnification 0.65x to 5.2x WD=39.5mm |
|
We achieved low Mag. Macro system which enables from wide range shooting
to zoom up. |
| ■ |
Small size/Light weight/High versatility |
|
Simple Barrel by small and light weight , Macro Zoom Lens with high versatility. |
| ■ |
With Aperture Stop |
|
Equipped with Aperture Stop, very convenient to adjust brightness and depth
of the field. |
| ■ |
By Front Converter , magnification will be controlled (option) |
|
By adding Front Converter, magnification is able to goes up. (WD becomes
shorter) |
| ■ |
Substantial Peripheral Devices |
|
We prepared substantial peripherals of Cameras, Illuminations, Auxiliary
Lenses, Stands |
|
|
| Lenz specification |
| P/N |
TS-93003NI |
| Magnification range |
0.65x to 5.2x |
| Zoom ratio |
8.0x |
| Object to image distance |
166.4㎜ |
| WD |
39.5mm (from edge of barrel to object：35.7mm+/-5%) |

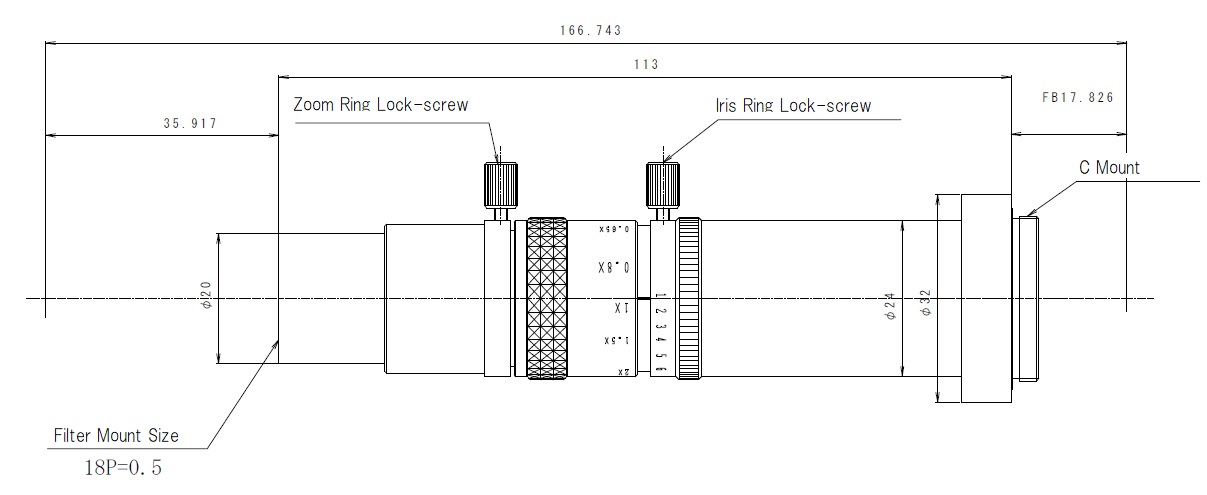

| Size of Lens Barrel |
- |
| Mount |
C-Mount |
| Supporting CCD sensor size |
1/2", 1/3", 1/4" |
| Optical magnification |
0.66x |
1.50x |
5.10x |
| F-number | Object side |
16.7 |
7.3 |
2.9 |
| Image side |
11.0 |
11.0 |
15.0 |
| Numerical Aperture | Object side |
0.030 |
0.068 |
0.170 |
| Image side |
0.045 |
0.045 |
0.033 |
| Image circle | Object side |
Dia.12.1 |
Dia.5.3 |
Dia.1.6 |
| Image side |
Dia.8.0 |
Dia.8.0 |
Dia.8.0 |
| Depth of field(mm) | Object side |
0.57 |
0.10 |
0.01 |
| Image side |
0.25 |
0.22 |
0.35 |
| Resolution TVL/mm | Object side |
75.9TVL |
165.0TVL |
357.0TVL |
| Image side |
115TVL |
110TVL |
70TVL |
| TV distortion |
+0.07% or less |
+0.08% or less |
+0.09% or less |
| Weight |
Around 100ｇ |
| External dimension |
Dia.32 x 113mm+/-0.5mm |
| Price |
JPY125,000(w/o tax)
JPY137,500 (w/ tax) |
|
|
|
| Magnification |
| Optical Mag. |
1/2" CCD/CMOS |
1/3" CCD/CMOS |
1/4" CCD/CMOS |
| Monitor magnification |
View range |
Monitor magnification |
View range |
Monitor magnification |
View range |
| 0.65x |
30.96x |
7.48 x 9.97mm |
41.8x |
5.61mm x 7.48mm |
55.03x |
4.21mm x 5.61mm |
| 0.7x |
33.34x |
6.94 x 9.26mm |
44.45x |
5.21mm x 6.94mm |
59.27x |
3.90mm x 5.21mm |
| 1.0x |
47.63x |
4.86 x 6.48mm |
63.5x |
3.64mm x 4.86mm |
84.67x |
2.73mm x 3.64mm |
| 2.0x |
95.25x |
2.43 x 3.24mm |
127x |
1.82mm x 2.43mm |
169.33x |
1.3mm x 1.82mm |
| 3.0x |
142.88x |
1.62 x 2.16mm |
190.5x |
1.21mm x 1.62mm |
254x |
0.91mm x 1.21mm |
| 4.0x |
190.5x |
1.21 x 1.62mm |
254x |
0.92mm x 1.21mm |
338.67x |
0.68mm x 0.92mm |
| 5.2x |
247.65x |
0.93 x 1.25mm |
330.2x |
0.70mm x 0.93mm |
440.27x |
0.53mm x 0.70mm |
|
|
|
| Front converter for TS-93003(option) |
Magnification and WD will change, please put this in front of Lens.
If it is used for TS-93003NI, the image can be dignetted when it is lower
magnification. |
| P/N |
TS-WD-50 |
TS-WD-75 |
TS-WD-100 |
| WD |
50mm |
75mm |
100mm |
| Zoom ratio |
0.400x to 3.240x |
0.280x to 2.240x |
0.214x to 1.712x |
| Price |
JPY8,500(w/o tax)
JPY9,350 (w/ tax) |
JPY8,500(w/o tax)
JPY9,350 (w/ tax) |
JPY8,500(w/o tax)
JPY9,350 (w/ tax) |
 |
 |
 |
 |
|
|
| Extender Lens (option) |
|
Able to adjust magnification without changing W.D.(brightness will change)
put at back side of (C-Mount) lens |
| P/N |
TS-EX-15 |
TS-EX-20 |
TS-EX-30 |
TS-EX-50 |
| Description |
1.5 x Extender |
2.0 x Extender |
3.0 x Extender |
5.0 x Extender |
| Price |
JPY11,000(w/o tax)
JPY12,100(w/ tax) |
JPY12,000(w/o tax)
JPY13,200(w/ tax) |
The price will be revised Feb. 1,2025
JPY20,000(w/o tax)
JPY22,000(w/ tax) |
JPY27,000(w/o tax)
JPY29,700(w/ tax) |
 |
 |
 |
 |
 |
|
|
| Protect Filter (Optional) |
| ■TS-PF-01 |
18 P0.5 Protect Filter |
 |
This protect filter will be helpful to protect the lens from cust, dirt,
chemicals etc. This protect filter is attachable for TS-93001VS as well
as TS-93003NI or other products that have Dia.18 P0.5 mount sizes.
| Product No. |
Description |
Coating |
Mount |
Weight
(g) |
Price |
Price
w/tax |
| TS-PF-01 |
18 P0.5 Protect Filter |
Multi-layer AR coating both surfaces |
18 P0.5 |
|
Yen9,800 |
Yen10,780 |
|
|
|
|
| LED Illumination set(option) |
 |
Please check the link for details. |
|
|
|
|
|
