| Accessories for M10.5 / M12 / M15.5 barrels |
|
|
 |
| ■ |
Sugitoh manufactures lens parts and various types of barrels with special
purposes to meet user's different requirements for small cameras and board
camera |
| ■ |
Very convenient parts for Magnification Adjustment, Shooting distance and direction adjustment |
| ■ |
It is possible to easily customize Lenses |
| ■ |
Combining with Objective Lenses, you can make original Microscope |
| ■ |
Full-fledged parts Optical Professionals are using |
|
|
|
|
|
|
 |
By using this S-mount (M12 P0.5) conversion adapter, it allows you to use
our wide variety of TS-36 series (M15.5 P0.5) accessories for board camera.
We have two types of adapters. Please see the drawings linked from P/N
for details. |
| 品番 |
品名 |
Outer Dia.(mm) |
Length
(mm) |
Inner Dia.
(mm) |
Mount size
(mm) |
weight
(g) |
Price w/t tax (JPY) |
Price w/tax |
| TS-36-SA1 |
M15.5/S-mount conversion adapter |
φ17 |
5(9) |
φ10 |
M15.5P0.5/ M12 P0.5 |
1.4 |
3,500 |
3,850 |
| TS-36-SA2 |
S-mount/M15.5 conversion adapter |
φ17 |
5(9) |
φ10 |
M12 P0.5
/M15.5P0.5 |
1.4 |
3,500 |
3,850 |
*Numbers inside parentheses are total length including male screw tap.
|
|
|
|
|
These are able to connect Compact Cameras・Board Cameras, extend Focal Length and increase magnification. By connecting to C-Mount Adapter Parts (TS-38-CAD/TS-36-CAD), able to connect to C-Mount Parts. We provide 5 kinds each for both Dia.12mm and Dia.17mm. |
| P/N |
Description |
Outer Dia. |
Length |
Inner Dia. |
Mount Size |
Weight |
Price w/t tax (JPY) |
Price w/tax |
| TS-38-H5 |
Dia.12 Extension Barrel 5mm |
Dia.12mm |
5(9)mm |
Dia.7mm |
M10.5P0.5 |
1g |
2,000 |
2,200 |
| TS-38-H10 |
Dia.12 Extension Barrel 10mm |
Dia.12mm |
10(14)mm |
Dia.7mm |
M10.5P0.5 |
1.6g |
2,300 |
2,530 |
| TS-38-H15 |
Dia.12 Extension Barrel 15mm |
Dia.12mm |
15(19)mm |
Dia.7mm |
M10.5P0.5 |
1.8g |
2,300 |
2,530 |
| TS-38-H20 |
Dia.12 Extension Barrel 20mm |
Dia.12mm |
20(24)mm |
Dia.7mm |
M10.5P0.5 |
2.4g |
2,300 |
2,530 |
| TS-38-H50 |
Dia.12 Extension Barrel 50mm |
Dia.12mm |
50(54)mm |
Dia.7mm |
M10.5P0.5 |
10g |
3,500 |
3,850 |
| TS-36-H5 |
Dia.17 Extension Barrel 5mm |
Dia.17mm |
5(9)mm |
Dia.12mm |
M15.5P0.5 |
1.4g |
2,000 |
2,200 |
| TS-36-H10 |
Dia.17 Extension Barrel 10mm |
Dia.17mm |
10(14)mm |
Dia.12mm |
M15.5P0.5 |
2.2g |
2,300 |
2,530 |
| TS-36-H15 |
Dia.17 Extension Barrel 15mm |
Dia.17mm |
15(19)mm |
Dia.12mm |
M15.5P0.5 |
2.4g |
2,300 |
2,530 |
| TS-36-H20 |
Dia.17 Extension Barrel 20mm |
Dia.17mm |
20(24)mm |
Dia.12mm |
M15.5P0.5 |
3g |
2,300 |
2,530 |
| TS-36-H50 |
Dia.17 Extension Barrel 50mm |
Dia.17mm |
50(24)mm |
Dia.12mm |
M15.5P0.5 |
13.8g |
3,500 |
3,850 |
*Numbers inside parentheses are total length including male screw tap. |
|
|
|
Both side of coupling part are female screw tap. Please use these to connect two male screw taps.
We provide 4 kinds for both Dia.12mm and Dia.17mm. |
| P/N |
Description |
Outer Dia. |
Length |
Inner Dia. |
Weight |
Price w/t tax(JPY) |
Price w/tax |
| TS-38-MH3 |
Dia.12 Female Threaded Barrel 3mm |
Dia.12mm |
3mm |
M10.5P0.5 |
0.2g |
2,000 |
2,200 |
| TS-38-MH10 |
Dia.12 Female Threaded Barrel 10mm |
Dia.12mm |
10mm |
M10.5P0.5 |
0.8g |
2,300 |
2,530 |
| TS-38-MH15 |
Dia.12 Female Threaded Barrel 15mm |
Dia.12mm |
15mm |
M10.5P0.5 |
1.2g |
2,300 |
2,530 |
| TS-38-MH20 |
Dia.12 Female Threaded Barrel 20mm |
Dia.12mm |
20mm |
M10.5P0.5 |
1.6g |
2,300 |
2,530 |
| TS-36-MH3 |
Dia.17 Female Threaded Barrel 3mm |
Dia.17mm |
3mm |
M15.5P0.5 |
0.4g |
2,000 |
2,200 |
| TS-36-MH10 |
Dia.17 Female Threaded Barrel 10mm |
Dia.17mm |
10mm |
M15.5P0.5 |
0.9g |
2,300 |
2,530 |
| TS-36-MH15 |
Dia.17 Female Threaded Barrel 15mm |
Dia.17mm |
15mm |
M15.5P0.5 |
1.6g |
2,300 |
2,530 |
| TS-36-MH20 |
Dia.17 Female Threaded Barrel 20mm |
Dia.17mm |
20mm |
M15.5P0.5 |
1.8g |
2,300 |
2,530 |
|
|
|

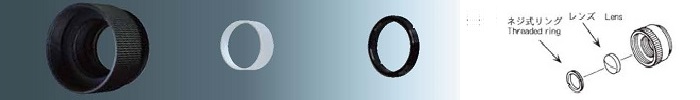

Put Lens and Filter inside, then tighten with threaded ring.
Please see bellow list for Achromatic Lenses which are possible to insert to these Holders. |
|
| P/N |
Description |
Outer Dia. |
Length |
Lens Dia.to built-in |
Inner Dia. |
Mount Size |
Weight |
Price w/t tax (JPY) |
Price w/tax |
| TS-38-LM5 |
For Dia12 Lens Holder Dia.5mm |
Dia.12mm |
8(12)mm |
5mm |
4.4mm |
M10.5P0.5 |
1.6g |
3,200 |
3,520 |
| TS-38-LM8 |
For Dia12 Lens Holder Dia.8mm |
Dia.12mm |
8(12)mm |
8mm |
7.0mm |
M10.5P0.5 |
1.6g |
3,200 |
3,520 |
| TS-36-LM8 |
For Dia17 Lens Holder Dia.8mm |
Dia.17mm |
8(12)mm |
8mm |
7.0mm |
M15.5P0.5 |
3g |
3,200 |
3,520 |
| TS-36-LM10 |
For Dia17 Lens Holder Dia.10mm |
Dia.17mm |
8(12)mm |
10mm |
9.0mm |
M15.5P0.5 |
3g |
3,200 |
3,520 |
*Numbers inside parentheses are total length including knurling (outer
size) and male screw tap.
| P/N |
Dia. |
F.L. |
B.F.L. |
TC |
TE |
Price w/t tax (JPY) |
Price w/tax |
Note |
| TS-0349A1 |
Dia.5 |
10 |
7.6 |
4.4 |
3.96 |
6,000 |
6,600 |
- |
| TS-0349A2 |
Dia.5 |
12 |
9.4 |
4.9 |
4.53 |
6,000 |
6,600 |
- |
| TS-0349A3 |
Dia.5 |
16 |
13.4 |
4.9 |
4.54 |
6,000 |
6,600 |
- |
| TS-0349A4 |
Dia.5 |
20 |
17 |
5.6 |
5.30 |
6,000 |
6,600 |
- |
| TS-0349A5 |
Dia.5 |
25 |
22.6 |
5.1 |
4.18 |
6,000 |
6,600 |
- |
| TS-0349A6 |
Dia.5 |
30 |
27.6 |
4.5 |
4.32 |
6,000 |
6,600 |
- |
| TS-0350A |
Dia.8 |
12 |
9.4 |
4.9 |
3.89 |
6,000 |
6,600 |
- |
| TS-0350A1 |
Dia.8 |
16 |
13.327 |
4.9 |
4.10 |
6,000 |
6,600 |
- |
| TS-0350A2 |
Dia.8 |
20 |
17 |
3.7 |
2.89 |
5,000 |
5,500 |
- |
| TS-0350A3 |
Dia.8 |
25 |
22.6 |
5.1 |
4.18 |
5,000 |
5,500 |
- |
| TS-0350A4 |
Dia.8 |
30 |
27.033 |
4.5 |
4.00 |
5,000 |
5,500 |
- |
| TS-0350A5 |
Dia.8 |
35 |
32.08 |
4.5 |
4.07 |
5,000 |
5,500 |
- |
| TS-0350A6 |
Dia.8 |
40 |
37.082 |
4.5 |
4.13 |
5,000 |
5,500 |
- |
| TS-0350A7 |
Dia.8 |
50 |
47.105 |
4.5 |
4.20 |
5,000 |
5,500 |
- |
| TS-0350A8 |
Dia.8 |
60 |
57.428 |
4.0 |
3.75 |
5,000 |
5,500 |
- |
| TS-0350A9 |
Dia.8 |
70 |
67.426 |
4.0 |
3.79 |
5,000 |
5,500 |
- |
| TS-0350A10 |
Dia.8 |
75 |
72.475 |
4.0 |
3.80 |
5,000 |
5,500 |
- |
| TS-0350A11 |
Dia.8 |
80 |
77.459 |
4.0 |
3.81 |
5,000 |
5,500 |
- |
| TS-0350A12 |
Dia.8 |
90 |
87.417 |
4.0 |
3.83 |
5,000 |
5,500 |
- |
| TS-0350A13 |
Dia.8 |
100 |
97.372 |
4.0 |
3.85 |
5,000 |
5,500 |
- |
| TS-0351A |
Dia.10 |
25 |
22.6 |
5.1 |
4.18 |
5,500 |
6,050 |
- |
| TS-0351A1 |
Dia.10 |
30 |
27.033 |
4.5 |
3.79 |
5,500 |
6,050 |
- |
| TS-0351A2 |
Dia.10 |
35 |
32.08 |
4.5 |
3.89 |
5,500 |
6,050 |
- |
| TS-0351A3 |
Dia.10 |
40 |
37.082 |
4.5 |
3.97 |
5,500 |
6,050 |
- |
| TS-0351A4 |
Dia.10 |
50 |
47.105 |
4.5 |
4.08 |
5,500 |
6,050 |
- |
| TS-0351A5 |
Dia.10 |
60 |
57.428 |
4.0 |
3.65 |
5,500 |
6,050 |
- |
| TS-0351A6 |
Dia.10 |
70 |
67.426 |
4.0 |
3.70 |
5,500 |
6,050 |
- |
| TS-0351A7 |
Dia.10 |
75 |
72.475 |
4.0 |
3.72 |
5,500 |
6,050 |
- |
| TS-0351A8 |
Dia.10 |
80 |
77.459 |
4.0 |
3.74 |
5,500 |
6,050 |
- |
| TS-0351A9 |
Dia.10 |
90 |
87.417 |
4.0 |
3.77 |
5,500 |
6,050 |
- |
| TS-0351A10 |
Dia.10 |
100 |
97.372 |
4.0 |
3.79 |
5,500 |
6,050 |
- |
|
|
*Because of material’s change etc. there is possibility thickness may
change. If you have any questions, please ask to sales.
|
|
|
|
Barrel to control amount of light go through Optical Path Space. There is 5 kinds for each outer diameter. |
| P/N |
Description |
Outer Dia. |
Length |
Inner Dia. |
Mount Size |
Weight |
Price w/t tax (JPY) |
Price w/tax |
| TS-38-DP05 |
For Dia.12 Diaphragm Dia.0.5mm |
Dia.12mm |
5.5(9)mm |
Dia.0.5mm |
M10.5P0.5 |
1g |
.3,500 |
3,850 |
| TS-38-DP075 |
For Dia.12 Diaphragm Dia.0.75mm |
Dia.12mm |
5.5(9)mm |
Dia.0.75mm |
M10.5P0.5 |
1g |
3,500 |
3,850 |
| TS-38-DP1 |
For Dia.12 Diaphragm Dia.1mm |
Dia.12mm |
5.5(9)mm |
Dia.1.0mm |
M10.5P0.5 |
1g |
3,500 |
3,850 |
| TS-38-DP2 |
For Dia.12 Diaphragm Dia.2mm |
Dia.12mm |
5.5(9)mm |
Dia.2.0mm |
M10.5P0.5 |
1g |
3,500 |
3,850 |
| TS-38-DP3 |
For Dia.12 Diaphragm Dia.3mm |
Dia.12mm |
5.5(9)mm |
Dia.3.0mm |
M10.5P0.5 |
1g |
3,500 |
3,850 |
| TS-36-DP05 |
For Dia.17 Diaphragm Dia.0.5mm |
Dia.17mm |
5.5(9)mm |
Dia.0.5mm |
M15.5P0.5 |
1.6g |
3,500 |
3,850 |
| TS-36-DP1 |
For Dia.17 Diaphragm Dia.1mm |
Dia.17mm |
5.5(9)mm |
Dia.1.0mm |
M15.5P0.5 |
1.6g |
3,500 |
3,850 |
| TS-36-DP2 |
For Dia.17 Diaphragm Dia.2mm |
Dia.17mm |
5.5(9)mm |
Dia.2.0mm |
M15.5P0.5 |
1.6g |
3,500 |
3,850 |
| TS-36-DP3 |
For Dia.17 Diaphragm Dia.3mm |
Dia.17mm |
5.5(9)mm |
Dia.3.0mm |
M15.5P0.5 |
1.6g |
3,500 |
3,850 |
*Numbers inside parentheses are total length including male screw tap. |
|
|
|
You can adjust Aperture. Please use for brightness adjustment of Optical
Axis at Barrel. Loosen Screw at side and rotate clicking part, then tighten
with screw again. |
| P/N |
Description |
Outer Dia. |
Length |
Aperture. |
Weight |
Price w/t tax (JPY) |
Price w/tax |
| TS-38-IDP |
For Dia.12 Adjustable Iris Diaphragm |
Dia.12mm |
11.5(14)mm |
Dia.0.5 to 4.0mm |
2.2g |
14,500 |
15,950 |
| TS-36-IDP |
For Dia.17 Adjustable Iris Diaphragm |
Dia.12mm |
13.0(16)mm |
Dia.0.5 to 6.0mm |
4.6g |
14,500 |
15,950 |
*Numbers inside parentheses are total length including male screw tap. |
|
|
|
Please connect Dia.12/17mm Barrel or Unit to this connecting adapter, connect to C-Mount Tap.
When you connect to Prizm Box etc. you can project image to other direction. |
| P/N |
Description |
Outer Dia. |
Length |
Inner Dia. |
Mount Size |
Weight |
Price w/t tax (JPY) |
Price w/tax |
| TS-38-CAD |
For Dia.12 C-Mount Adapter |
Dia.30mm |
4(8)mm |
M10.5P1/32 |
M25.4P1/32 |
6.6g |
3,500 |
3,850 |
| TS-36-CAD |
For Dia.17 C-Mount Adapter |
Dia.30mm |
4(8)mm |
M10.5P0.5 |
M25.4P1/32 |
6.6g |
3,500 |
3,850 |
*Numbers inside parentheses are total length including male screw tap. |
|
|
|
Insert Lenses to Lens Holder, combine with extender. (By connecting to
Camera side) you can make magnification higher without changing W.D. |
| P/N |
Description |
Outer Dia. |
Length |
Mag. |
Mount Size |
Weight |
Price w/t tax(JPY) |
Price w/tax |
| TS-38-EX1.5 |
For Dia.12 Extender 1.5x |
Dia.12mm |
19mm |
1.5x |
M10.5P0.5 |
2.8g |
18,000 |
19,800 |
| TS-38-EX2 |
For Dia.12 Extender 2x |
Dia.12mm |
23mm |
2x |
M10.5P0.5 |
3.5g |
19,000 |
20,900 |
| TS-38-EX5 |
For Dia.12 Extender 5x |
Dia.12mm |
43.5mm |
5x |
M10.5P0.5 |
6g |
40,000 |
44,000 |
| TS-36-EX1.5 |
For Dia.17 Extender 1.5x |
Dia.17mm |
26.0mm
(37.0mm) |
1.5x |
M15.5P0.5 |
8.2g |
18,000 |
19,800 |
| TS-36-EX2 |
For Dia.17 Extender 2x |
Dia.17mm |
26.0mm
(37.0mm) |
2x |
M15.5P0.5 |
8.8g |
19,000 |
20,900 |
| TS-36-EX3 |
For Dia.17 Extender 3x |
Dia.17mm |
38.5mm
(49.5mm) |
3x |
M15.5P0.5 |
12g |
20,000 |
22,000 |
| TS-36-EX5 |
For Dia.17 Extender 5x |
Dia.17mm |
44.0mm
(10.83mm) |
5x |
M15.5P0.5 |
12g |
40,000 |
44,000 |
*Numbers inside parentheses are total length including male screw tap. |
|
|
|
While fixing camera, Holder and Barrel, you can rotate. It is possible
to tighten up by screwing at one point. Most suitable if you need rotation
at small space. |
| P/N |
Description |
Outer Dia. |
Length |
Inner Dia. |
Mount Size |
Weight |
Price w/t tax(JPY) |
Price w/tax |
| TS-38-RTB |
For Dia.12 Rotatory Barrel |
Dia.12mm |
9mm |
Dia.6.5 |
M10.5P0.5 |
1.4g |
5,000 |
5,500 |
| TS-36-RTB |
For Dia.17 Rotatory Barrel |
Dia.17mm |
9mm |
Dia.11.5 |
M15.5P0.5 |
2.2g |
5,000 |
5,500 |
|
|
|
|
This Barrel can project incident light or real image to right angle direction.
Specification of inside Prizm Mirror is equivalent to that of standardized Optical Lenses. |
| P/N |
Description |
Outer Dia. |
Length |
Mount Size |
Weight |
Price w/t tax(JPY) |
Price w/tax |
Note |
| TS-38-SV |
For Dia.12 Side-View Barrel |
Dia.12mm |
14.6mm
(18.6mm) |
M10.5P0.5 |
3g |
Please ask |
|
Image will not horizontally reversed |
| TS-36-SV |
For Dia.17 Side-View Barrel |
Dia.17mm |
19.0mm
(23.0mm) |
M15.5P0.5 |
8.4g |
Please ask |
|
Image will horizontally reversed |
|
|
|
|
In-Line Illumination will reflect Illumination light come through Glass Fiber, LED etc.
by Half Mirror, and Irradiate to right angle through Object Lens. |
| P/N |
Description |
Price w/t tax(JPY) |
Price w/tax |
| TS-38-CII |
For Dia.12 In-Line Illumination Barrel |
OPEN |
|
| TS-36-CII |
For Dia.17 In-Line Illumination Barrel |
OPEN |
|
|
|
|
|
