Mega Pixel Lenses

Lenses supporting 1 Mega to 2 Mega Pixels Cameras

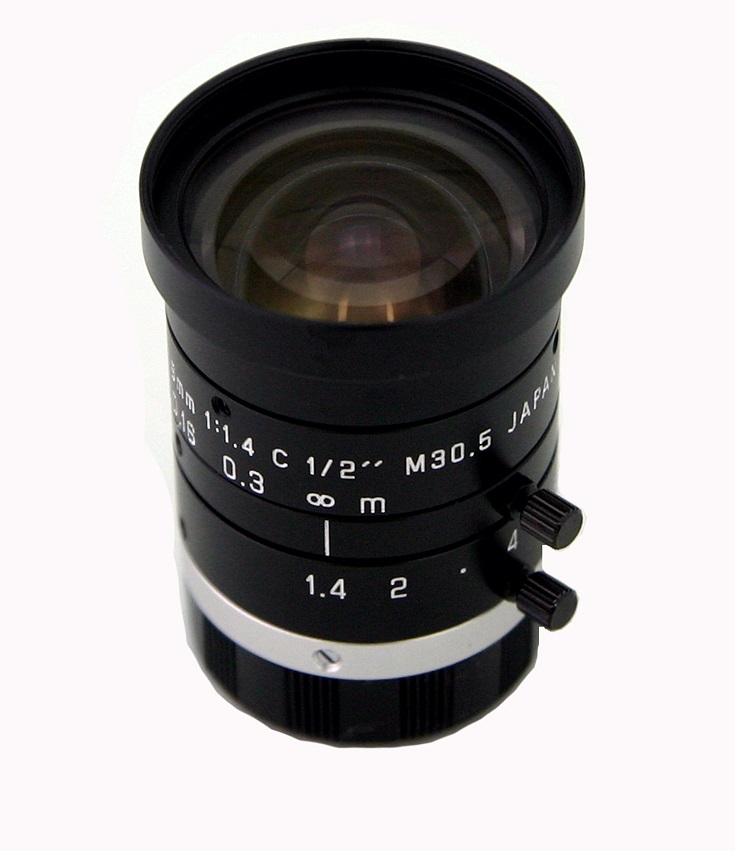

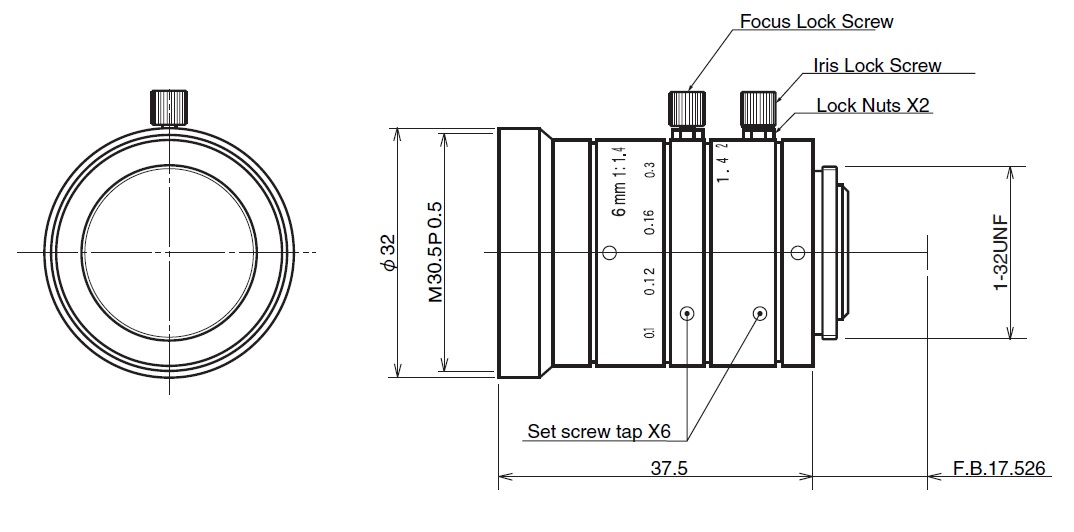

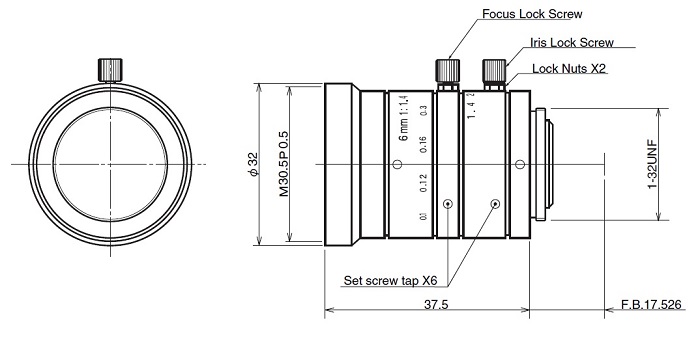

■TSMS-0614-1MP Mega Pixel Lensf=6mm

P/N	TSMS-0614-1MP
Focal Length	6mm
Maximum Relative Aperture	1:1.4
Iris	F1.4～16
Angular Field of View	57.4×44.3° (with 1/2 inch camera)
Max. View Size	6.4×4.8mm （φ8mm）
Image Size	1/3～2/3 inch
Back Focal Length	12.32mm（In Air）
Flange Back	17.526mm
Min. Object Distance	0.2m(from Front Lens)

Operation	Focus: Manual
Operation	Iris: : Manual
Mount	C-mount
Filter Thread	30.5mm P0.5
Distortion	-
Closest shooting range	17.6×13.0cm
External Dimension	φ32×37.5
Weight	Approx.65 g
Operating Temperature	-10～+45℃
Price (JPY)	RFQ

■TSMY-0614 Mega Pixel Lens f =6mm

P/N	TSMY-0614
Focal Length	6.0mm
Maximum Relative Aperture	1.4
Iris	F1.4 to 16
Angular Field of View	57.4° x 44.3°
Back Focal Length	12.32mm
Flange Back	17.526mm
Minimum Object Distance	250mm
Operation	Manual
Mount	C-Mount
Filter Screw Size	M30.5 P=0.5
Lens Construction	6G7E
TV Distortion	-0.96%
Center Resolving Power	100L/mm(F=1.4)
Design Wave Length	540nm
Operating Temperature	-20°C to +50°C

Image size	1/2"
Front Principal Point	19.24mm
Rear Principal Point	6.37mm
Distance of Principal Points	29.13mm
Optical Whole length	42.0mm
Entrance Pupil	14.88mm
Exit Pupil	-21.77mm
Effective Dia. of Front Lens	Dia.25.8mm
Effective Dia. of Rear Lens	Dia.9.0mm
Lens Movement	0.17mm
Metal Front-#1 Lens Surface	0.68mm
Outer Resolving Power	80L/mm (F=1.4)
Outer Lighter Volume	54%
Dimensions	Dia.32 x 37.5mm
Weight	66g
Price	RFQ

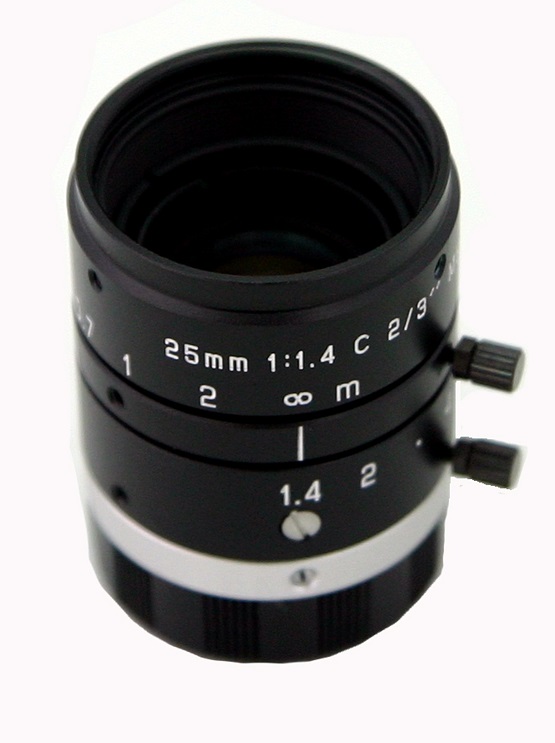

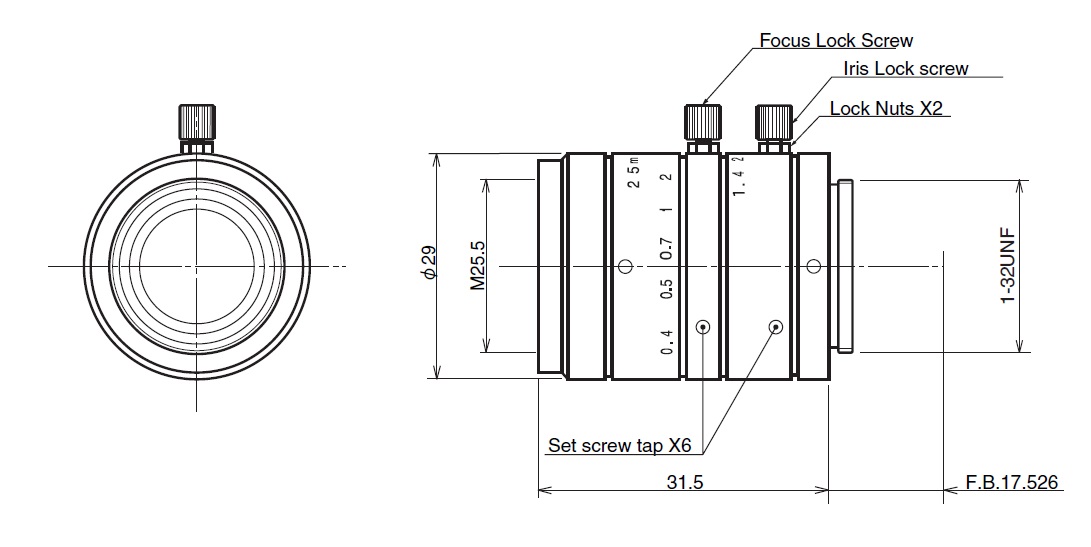

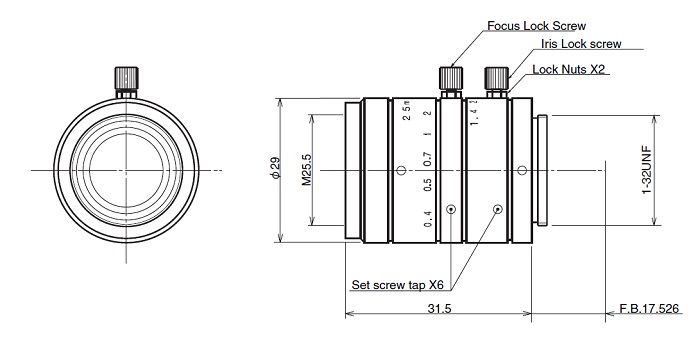

■TSMS-2514-1MP Mega Pixel Lensf=25mm

P/N	TSMS-2514-1MP
Focal Length	25mm
Maximum Relative Aperture	1:1.4
Iris	F1.4～16
Angular Field of View	20.1X15.1°
Max. View Size	8.8X6.6mm （φ11mm）
Image Size	1/3～2/3 inch
Back Focal Length	13.13mm（In Air）
Flange Back	17.526mm
Min. Object Distance	0.25m(from Front Lens)

Operation	Focus: Manual
Operation	Iris: : Manual
Mount	C-mount
Filter Thread	25.5mm P0.5
Distortion	-
Closest shooting range	7.2X5.4cm
External Dimension	φ29X31.5mm
Weight	Approx.45 g
Operating Temperature	-10～+45℃
Price (JPY)	RFQ



■TSMY-2514 Mega Pixel Lens f =25mm

P/N	TSMY-2514
Focal Length	25.0mm
Maximum Relative Aperture	1.4
Iris	F1.4 to 22
Angular Field of View	20.1° x 15.1°
Back Focal Length	13.13mm
Flange Back	17.526mm
Minimum Object Distance	250mm
Operation	Manual
Mount	C-Mount
Filter Screw Size	M25.5mm P=0.5
Lens Construction	4G6E
TV Distortion	-0.28%
Center Resolving Power	140L/mm
Design Wave Length	540nm
Operation Temperature	-20°C to +50°C

Image size	2/3"
Front Principal Point	23.34mm
Rear Principal Point	-11.94mm
Distance of Principal Points	-8.98mm
Optical Whole length	26.30mm
Entrance Pupil	17.52mm
Exit Pupil	-32.67mm
Effective Dia.of Front Lens	Dia.17.00mm
Effective Dia.of Rear Lens	Dia.12.80mm
Lens Movement	3.10mm
Metal Front-#1 Lens Surface	9.60mm
Outer Resolving Power	100L/mm (F1.4)
Outer Light Volume	62%
Dimensions	Dia.29 x 31.5mm
Weight	45g
Price	RFQ

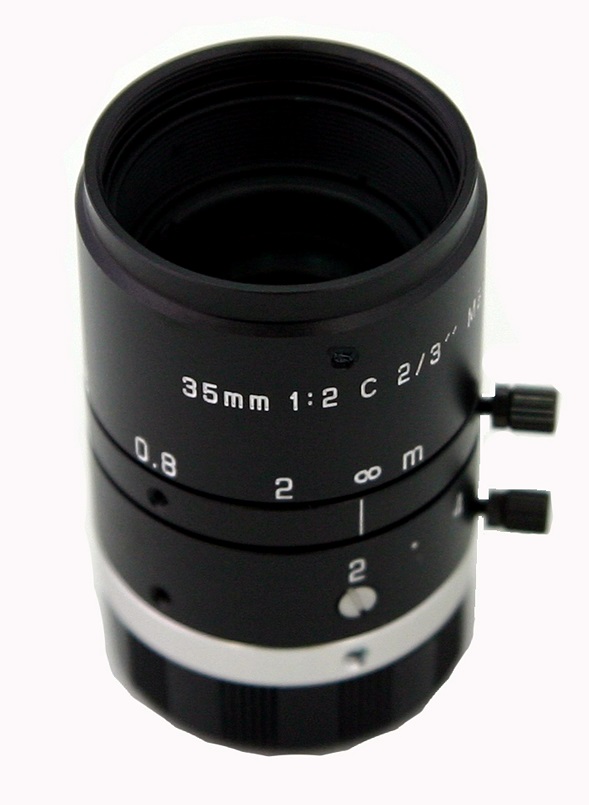

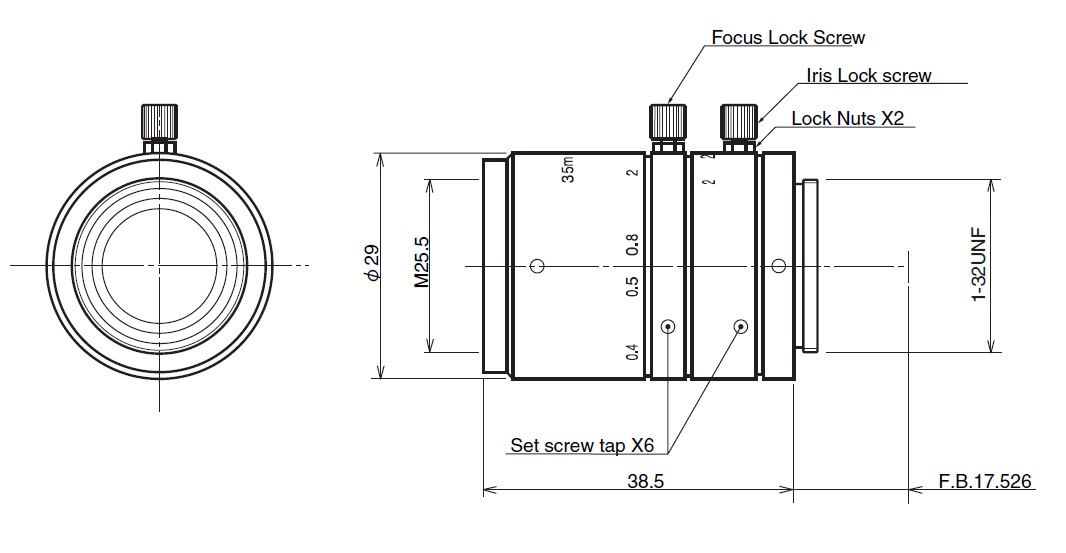

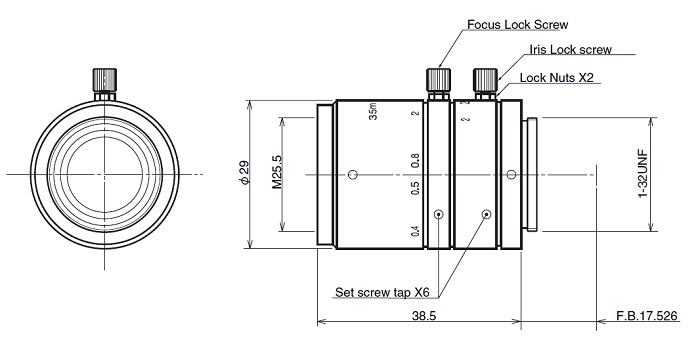

■TSMS-3520-1MP Mega Pixel Lensf=35mm

P/N	TSMS-3520-1MP
Focal Length	35mm
Maximum Relative Aperture	1:2.0
Iris	F2.0~22
Angular Field of View	14.3°x10.5°
Max. View Size	8.8x6.6mm （φ11mm）
Image Size	1/3～2/3 inch
Back Focal Length	18.06mm（In Air）
Flange Back	17.526mm
Min. Object Distance	0.25m(from Front Lens)

Operation	Focus: Manual
Operation	Iris: : Manual
Mount	C-mount
Filter Thread	25.5mm P0.5
Distortion	-
Closest shooting range	4.6x3.3cm
External Dimension	φ29x38.5mm
Weight	Approx.55 g
Operating Temperature	-10～+45℃
Price (JPY)	RFQ



■TSMY-3520 Mega Pixel Lens f =35mm

P/N	TSMY-3520
Focal Length	35.0mm
Maximum Relative Aperture	2.0
Iris	F2.0 to 22
Angular Field of View	14.33° x 10.45°
Back Focal Length	18.06mm
Flange Back	17.526mm
Minimum Object Distance	250mm
Operation	Manual
Mount	C-Mount
Filter Screw Size	M25.5mm P=0.5
Lens Construction	4G6E
TV Distortion	-0.02%
Center Resolving Power	140L/mm
Design Wave Length	540nm
Operation Temperature	-20°C to +50°C

Image size	2/3"
Front Principal Point	19.94mm
Rear Principal Point	-16.94mm
Distance of Principal Points	-10.38mm
Optical Whole length	26.50mm
Entrance Pupil	20.98mm
Exit Pupil	-33.98mm
Effective Dia.of Front Lens	Dia.17.80mm
Effective Dia.of Rear Lens	Dia.11.80mm
Lens Movement	6.70mm
Metal Front-#1 Lens Surface	11.47mm
Outer Resolving Power	100L/mm (F1.4)
Outer Light Volume	59%
Dimensions	Dia.29 x 38.5mm
Weight	55g
Price	RFQ

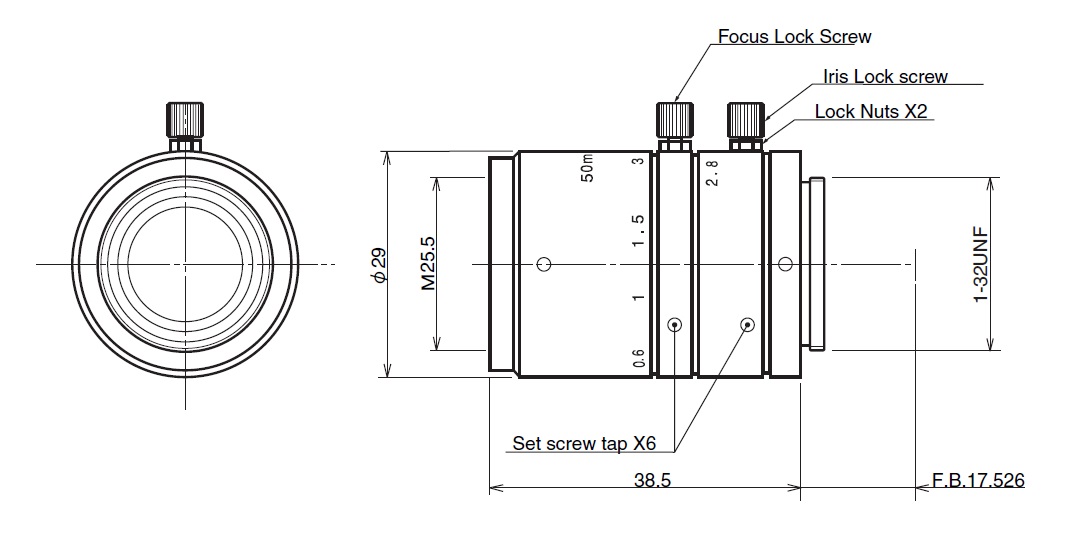

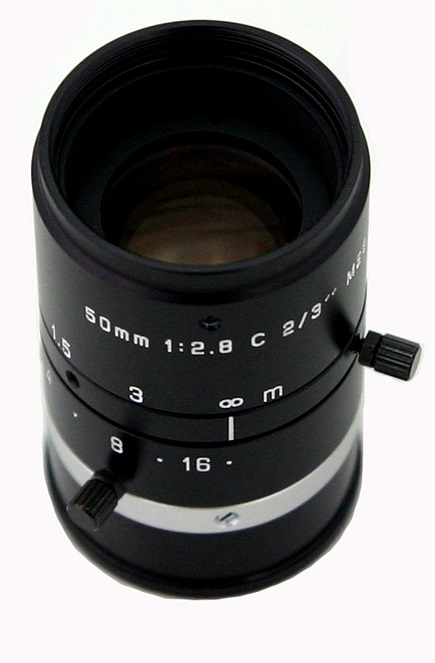

■TSMS-5028-1MP Mega Pixel Lensf=50mm

P/N	TSMS-5028-1MP
Focal Length	50mm
Maximum Relative Aperture	1:2.8
Iris	F2.8~22
Angular Field of View	10.0°X7.5°
Max. View Size	8.8X6.6mm （φ11mm）
Image Size	1/3～2/3 inch
Back Focal Length	21.2mm（In Air）
Flange Back	17.526mm
Min. Object Distance	0.5m(from Front Lens)

Operation	Focus: Manual
Operation	Iris: : Manual
Mount	C-mount
Filter Thread	25.5mm P0.5
Distortion	-
Closest shooting range	6.8X5.1cm
External Dimension	φ29X38.5mm
Weight	Approx.55 g
Operating Temperature	-10～+50℃
Price (JPY)	RFQ



■TSMY-5028 Mega Pixel Lens f =50mm

P/N	TSMY-5028
Focal Length	5.0mm
Maximum Relative Aperture	2.8
Iris	F2.8 to 22
Angular Field of View	9.98° x 7.49°
Back Focal Length	21.20mm
Flange Back	17.526mm
Minimum Object Distance	500mm
Operation	Manual
Mount	C-Mount
Filter Screw Size	M25.5mm P=0.5
Lens Construction	4G6E
TV Distortion	-0.02%
Center Resolving Power	140L/mm
Design Wave Length	540nm
Operation Temperature	-20°C to +50°C

Image size	2/3"
Front Principal Point	-9.57mm
Rear Principal Point	-28.70mm
Distance of Principal Points	7.47mm
Optical Whole length	26.60mm
Entrance Pupil	24.98mm
Exit Pupil	-29.56mm
Effective Dia.of Front Lens	Dia.17.40mm
Effective Dia.of Rear Lens	Dia.8.4mm
Lens Movement	6.50mm
Metal Front-#1 Lens Surface	8.23mm
Outer Resolving Power	100L/mm (F1.4)
Outer Light Volume	73%
Dimensions	Dia.29 x 38.5mm
Weight	55g
Price	RFQ
