| We have useful kits that holds popular optical lenses, lens holders, and
C-mount bench. These Kits are ideal for research and experiment purposes. |
| |
|
|

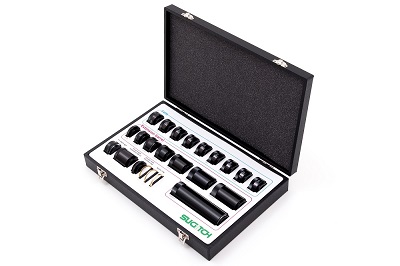

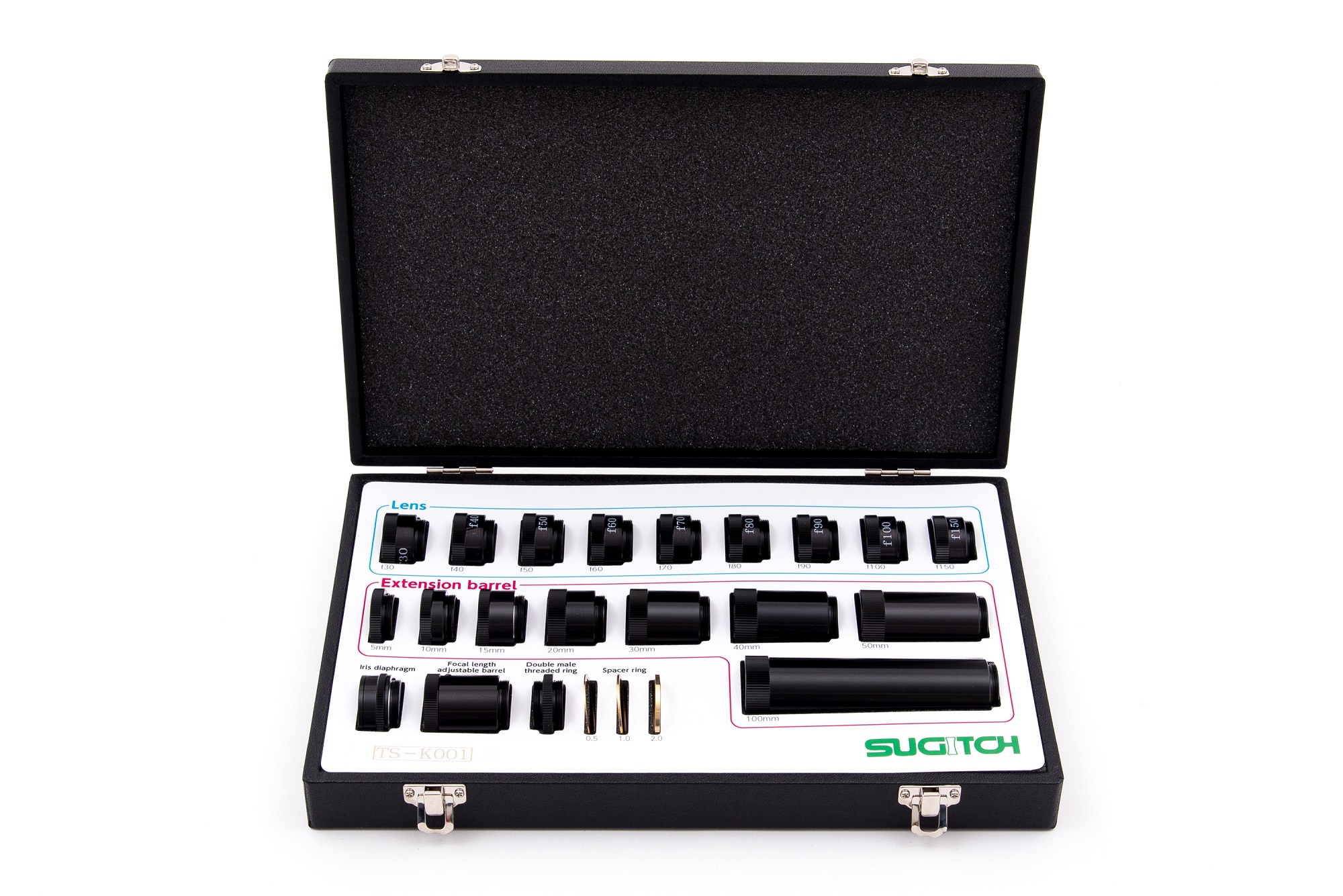

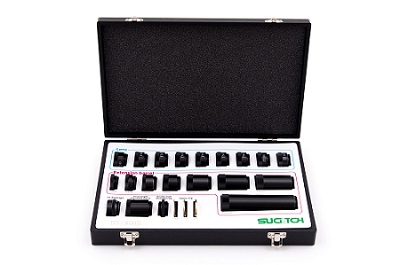

■TS-K-001 Achromatic Lens & basic accessoryl Kit New Product |
|
|
Achromatic Lens &Basic Accessory Kit contains 9 types of focal
length's achromatic lenses in the C-mount barrels with C-mount accessories
that can be used with achromatic lenses for the experimental applications..
Achromatic lenses has foca length from 30mm to 150mm (9 types) and they all have multi layer AR coating (400-700nm). They are all installed in C-mount barrels so that it can be used for experimental application easily.
Also other C-mount accessories like spacer, extension ring, double male threaded ring, and Adjustable Iris Diaphragm barrels are included so that they can be combined with achromatic lenses.
This kit can be very useful for educational purpose or research and development purposes.

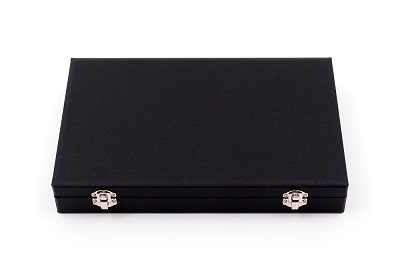

For storing them in tidy and neat, special box is also included. Each parts has it's own destination to store by having the cushions diecutted as per their shapes. |
 |
| Description |
Characteristic |
Q'ty |
Achromatic lenses with multi layer coating (400-700nm) in the C-mount barrel
|
Dimension：Dia.29㎜ L14㎜
(18㎜)*
*Numbers inside parentheses are total length including knurling (outer
size) and male screw tap. |
f30 |
1 |
| f40 |
1 |
| f50 |
1 |
| f60 |
1 |
| f70 |
1 |
| f80 |
1 |
| f90 |
1 |
| f100 |
1 |
| f150 |
1 |
| C-mount Spacer Rings |
0.5mm |
1 |
| 1.0mm |
1 |
| 2.0mm |
1 |
| C-mount Extension Barrels |
5.0mm |
1 |
| 10mm |
1 |
| 15mm |
1 |
| 20mm |
1 |
| 30mm |
1 |
| 40mm |
1 |
| 50mm |
1 |
| 100mm |
1 |
| C-mount Focal Length Adjustment Barrel |
By adjusting length of Barrel, able to do fine adjustment for Focal Length
and Image Forming Point It is possible to fix firmly by tightening with
screw.。 |
1 |
| C-mount Adjustable Iris Diaphragm Barrel |
Adjustable Iris Diaphragm Barrel can do Aperture Adjustment by 8 clicking point. Applicable for all the C-Mount size Holder. Also can use as Aperture stop for Sensor Lens (this case, please use by back side connection for F50mm, and by front side connection for other than F50mm Focal Length.) |
1 |
| C-mount Double Male Threaded Ring |
Double Male Threaded Ring is Connecting Ring linking two C-Mount size Female
Tap. |
1 |
|
Price：JPY198,600（exclude tax)
JPY218,460（include tax) |
 |
 |
| |
|
|
|
| C-mount Bench is installed wih 4 sets of C-mount holders with 300mm scale.
Both TS-30 and TS-31 can be assembled. This instrument can be attached
with other optical instrument by using adapters of TS-31. |
| Specifications |
Scale:mm |
| ■C-mount Holder |
| Size: |
Dia.50mm M25.4 P0.5, T10mm |
| Outside Dia. of Attachment Products: |
Dia.46mm |
| Weight: |
40 gram (exclude screw) |
| Height Light Axis: |
30mm from the bench base. |
| ■Bench |
| Size: |
W 320mm H 83mm |
| Holder mounting holes: |
4 points (L65, W5.5, P10) |
| V cutting surface angle: |
90 degree |
| Scale Length: |
300 mm |
| Scale Min. Value: |
1 mm |
| Number of legs: |
3 legs |
| Weight: |
1700 g |
|
 |
|
|
|
| Specifications subject to be change without notice |
|
