TS-93003N-CZ5 |
|
|
| Optical magnification 0.65x to 5.2x, WD39.5mm, C-Mount, supporting 1/2
inch to 1/4 inch sensor size |
*USB camera and LED light are optional |
| ‘ |
With high zoom ratio of 8x. Optical magnification of 0.65x to
5.2x
WD=39.5mm. |
|
Implemented low magnification Macro Zoom Lens, enables from wide range
shooting to Zoom up. |
| ‘ |
Small and light weight with high versatility |
|
Using small and light weight Barrel, this is highly versatile Macro Zoom
Lens. |
| ‘ |
LED Ring Illumination is adaptable (option) |
|
You can select specialized LED Illumination according to usage. |
| ‘ |
Adjust magnification by using Front Converter Lenses (Option) |
|
Front Converter Lenses enables magnification adjustment to raise (WD will
becomes short) |
| ‘ |
Equipped with substantial peripheral devices. |
|
We prepared substantial devices such as Cameras, Illuminations, Auxiliary Lenses, Stands etc. |
|
|
| Specification of Lens |
| P/N |
TS-93003NI |
| Magnification range |
0.65x - 5.2x |
| Zoom ratio |
8.0x |
| Object to image distance |
166.4o |
| WD |
39.5mm (from edge of the barrel to object : 35.7mm+/-5%) |
| Size of Lens Barrel |
- |
| Mount |
C-Mount |
| Supporting CCD sensor size |
1/2", 1/3", 1/4" |
| Optical magnification |
0.66x |
1.50x |
5.10x |
| F-number | Object side |
16.7 |
7.3 |
2.9 |
| Image side |
11.0 |
11.0 |
15.0 |
| Numerical Aperture | Object side |
0.030 |
0.068 |
0.170 |
| Image side |
0.045 |
0.045 |
0.033 |
| Image circle | Object side |
Dia.12.1 |
Dia.5.3 |
Dia.1.6 |
| Image side |
Dia.8.0 |
Dia.8.0 |
Dia.8.0 |
| Depth of field(mm) | Object side |
0.57 |
0.10 |
0.01 |
| Image side |
0.25 |
0.22 |
0.35 |
| Resolution TVL/mm | Object side |
75.9TVL |
165.0TVL |
357.0TVL |
| Image side |
115TVL |
110TVL |
70TVL |
| TV distortion |
+0.07% or less |
+0.08% or less |
+0.09% or less |
| Weight |
- |
| External dimension |
Dia.40 (mounting point of Stand Adapter) x 142mm to 152mm |
| Price(JPY) |
130,000(w/o tax)
143,000 (w/ tax) |
|

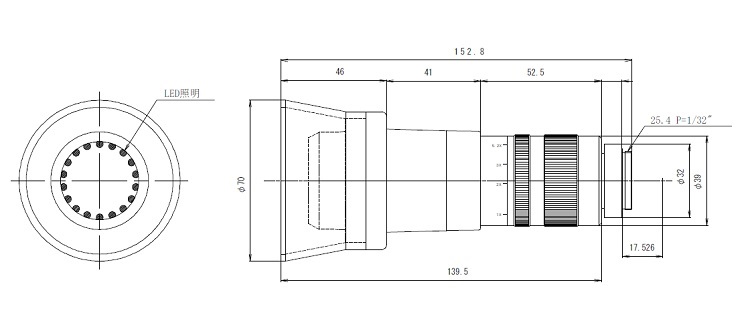

Drawing with Normal LED Illumination (TS-93003N-CZ5WT&YL-SET)

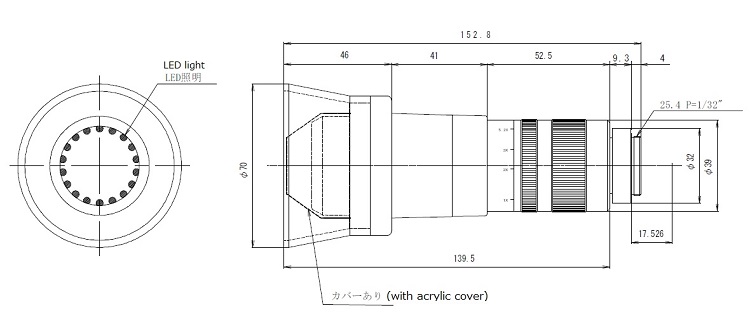

Drawing with Multi LED Ring Light (TS-93003N-CZ5MLAC-SET) |
|
|
| Magnification |
| Optical Mag. |
1/2" CCD/CMOS |
1/3" CCD/CMOS |
1/4" CCD/CMOS |
| Monitor Mag. |
View range |
Monitor Mag. |
View range |
Monitor Mag. |
View range |
| 0.65x |
30.96x |
7.48 x 9.97mm |
41.8x |
5.61mm x 7.48mm |
55.03x |
4.21mm x 5.61mm |
| 0.7x |
33.34x |
6.94 x 9.26mm |
44.45x |
5.21mm x 6.94mm |
59.27x |
3.90mm x 5.21mm |
| 1.0x |
47.63x |
4.86 x 6.48mm |
63.5x |
3.64mm x 4.86mm |
84.67x |
2.73mm x 3.64mm |
| 2.0x |
95.25x |
2.43 x 3.24mm |
127x |
1.82mm x 2.43mm |
169.33x |
1.3mm x 1.82mm |
| 3.0x |
142.88x |
1.62 x 2.16mm |
190.5x |
1.21mm x 1.62mm |
254x |
0.91mm x 1.21mm |
| 4.0x |
190.5x |
1.21 x 1.62mm |
254x |
0.92mm x 1.21mm |
338.67x |
0.68mm x 0.92mm |
| 5.2x |
247.65x |
0.93 x 1.25mm |
330.2x |
0.70mm x 0.93mm |
440.27x |
0.53mm x 0.70mm |
|
|
|
| Front converter for TS-93003(option) |
Magnification and WD will change, please put this in front of Lens.
If it is used for TS-93003NI, the image can be dignetted when it is lower
magnification. |
| P/N |
TS-WD-50 |
TS-WD-75 |
TS-WD-100 |
| WD |
50mm |
75mm |
100mm |
| Zoom ratio |
0.400x to 3.240x |
0.280x to 2.240x |
0.214x to 1.712x |
| Price(JPY) |
8,500(w/o tax)
9,350 (w/ tax) |
8,500(w/o tax)
9,350 (w/ tax) |
8,500(w/o tax)
9,350 (w/ tax) |
 |
 |
 |
 |
|
|
|
| Extender Lens (option) |
|
Able to change magnification without changing WD (brightness will change)
please attach to behind of (C-Mount) Lens |
| P/N |
TS-EX-15 |
TS-EX-20 |
TS-EX-30 |
TS-EX-50 |
| Description |
1.5x Extender |
2.0x Extender |
3.0x Extender |
5.0x Extender |
| Price(JPY) |
11,000(w/o tax)
12,100(w/ tax) |
12,000(w/o tax)
13,200(w/ tax) |
The price will be revised Feb. 1,2025
20,000(w/o tax)
22,000(w/ tax) |
27,000(w/o tax)
29,700(w/ tax) |
 |
 |
 |
 |
 |
|
|
|
‘LED Ring Illumination
 |
| P/N |
TS-LAX-CZ5WT |
TS-LAX-CZ5YL |
TS-LAX-CZ5MLAC |
| Description |
Cool White LED Ring light |
Warm White LED Ring Light |
Multi LED Ring Light |
| LED Element |
18pcs Bright Cool White LEDs |
18pcs Bright Warm White LEDs |
18pcs Bright Cool White LEDs |
| Specification |
Normal Type |
Normal Type |
Controllable by Tripartition(6pcs x 3) |
| Accessories |
Power Supply not included |
Power Supply not included |
TS-LX-LCC@Battery Holder
TS-WL5M-AC AC Adapter |
| Price(JPY) |
25,000(w/o tax)
27,500 (w/tax) |
25,000(w/o tax)
27,500 (w/tax) |
75,000(w/o tax)
82,500 (w/tax) |
|
TS-93003N-CZ5{USB Camera |
TS-LA-CZ5WT/TS-LA-CZ5YL |
TS-LAX-CZ5MLAC(TS-LX-LCC,TS-WL5M-AC)
|
|
|
| Filters |
| Depend on the object you observe, you can choose filters from below. |
|
 |
 |
 |
 |
| P/N |
TS-CZ5-1 |
TS-CZ5-2 |
TS-CZ5-3 |
TS-CZ5-4 |
| Description |
Dia.44 Filter Cover Ring |
Dia 39.5 Donut Shape Diffuser Glass |
Dia. 39.5 Donut Shape Polarizing Glass |
Dia.18 Polarizing Adapter for Lens |
| Price(JPY) |
6,500(w/o tax)
5,500(w/tax) |
4,500(w/o tax)
4,950(w/tax) |
8,500(w/o tax)
9,350(w/tax)
obsolete once stock will be over |
7,000iw/o taxj
7,700(w/tax) |
| Application |
This can hold either TS-CZ5-2 difusser glass or TS-CZ5-3 polarizing glass
to avoid strong reflection of light of TS-8LEN series or LED light of TS-CZ5
series. |
Using this difusser in order to illuminate the light evenly. It goes well
with specular objects |
It goes well when observing crystal and transparent objects to avoid reflection of the light |
Attaching this filter in front of the macro zoom lens with filter
size as Dia.18o |
| Applicable P/N |
TS-LA-CZ5WT/TS-LA-CZ5YL/TS-LAX-CZ5MLAC/TS-8LEN series |
TS-93003N-CZ5, TS-93003N |
|
|
‘Power Supply for LED Ring Illumination |
| P/N |
TS-LACLC-2 |
TS-USBLC-2 |
TS-8L-LCCN |
| Description |
AC Power Supply and control for LED light |
USB Power Supply and control for LED light |
Battery Box with light control |
| Power source |
AC Adapter |
Supply from USB port |
Battery Box (AA battery x 4 pcs) |
| Price(JPY) |
17,500(w/o tax)
19,250 (w/tax) |
17,500(w/o tax)
19,250 (w/tax) |
9,300(w/o tax)
10,230 (w/tax) |
|
 @
TS-LACLC-2 @@@@@@@@ @@@@@@@@@TS-USBLC-2@@@@@@@ |
|
|
|
