TS-93007 |
|
|
| Optical Magnification 0.25x to 2.0x,WD250mm, C-Mount, supporting 1/2 inch to 1/4 inch sensor size |
 |
| ■ |
Zoom ratio 8x Optical magnification 0.25x to 2.0x WD=250mm |
|
We materialized most requested magnification range and long WD with large demand for inspection. |
| ■ |
Silver Barrel series designed for Microscope |
|
Sophisticated design enthusiastic about functionality, ideal for Microscope
use. |
| ■ |
With Aperture Stop |
|
Equipped with Aperture Stop, very convenient to adjust brightness and depth
of the field. |
| ■ |
Able to adjust magnification by Extender (option) |
|
By using Extender , magnification is adjustable while keeping this long
working distance. |
| ■ |
Equipped with substantial peripheral devices |
|
We prepared substantial devices such as Cameras, Illuminations, Auxiliary
Lenses, Stands etc. |
|
|
| Lenz specification |
| P/N |
TS-93007 |
| Magnification range |
0.25x - 2.0x |
| Zoom ratio |
8.0x |
| Object to image distance |
411.6㎜ |
| WD |
249.65mm (from edge of barrel to object : 242.44mm) |
| Size of Lens Barrel |
152㎜ |
| Mount |
C-Mount |
| Supporting CCD sensor size |
1/1.8", 1/2", 1/3", 1/4" |
| Optical magnification |
0.25x |
0.69x |
2.00x |
| F-number | Object side |
38.0 |
16.7 |
12.0 |
| Image side |
9.5 |
11.5 |
24.0 |
| Numerical Aperture | Object side |
0.013 |
0.030 |
0.042 |
| Image side |
0.053 |
0.043 |
0.021 |
| Image circle | Object side |
Dia.40.0 |
Dia.14.5 |
Dia.5.0 |
| Image side |
Dia.10.0 |
Dia.10.0 |
Dia.10.0 |
| Depth of field(mm) | Object side |
4.80 |
0.63 |
0.25 |
| Image side |
0.30 |
0.30 |
1.0 |
| Resolution TVL/mm | Object side |
30.0TVL |
62.1TVL |
80.0TVL |
| Image side |
120TVL |
90TVL |
40TVL |
| TV distortion |
-0.24% or less |
+0.09% or less |
+0.15% or less |
| Weight |
Around 300ｇ |

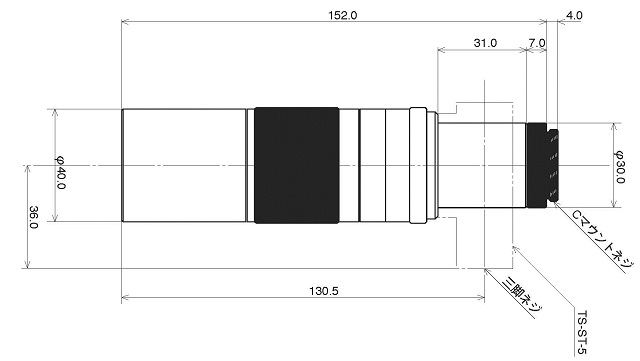

| External dimension |
Dia.40 x 152mm |
| Price (JPY) |
140,000(w/o tax)
154,000 (w/tax) |
|
|
|
| Magnification |
| Optical Mag. |
1/2" CCD/CMOS |
1/3" CCD/CMOS |
1/4" CCD/CMOS |
| Monitor magnification |
View range |
Monitor magnification |
View range |
Monitor magnification |
View range |
| 0.25x |
11.9x |
19.44mm x 25.92mm |
15.88x |
14.58mm x 19.44mm |
21.17x |
10.93mm x 14.58mm |
| 0.3x |
14.29x |
16.20 x 14.29mm |
19.05x |
12.15mm x 16.20mm |
25.4x |
9.11mm x 12.15mm |
| 0.4x |
19.05x |
12.15 x 16.20mm |
25.4x |
9.11mm x 12.15mm |
33.87x |
6.83mm x 9.11mm |
| 0.5x |
23.81x |
9.72 x 12.96mm |
31.75x |
7.29mm x 9.72mm |
42.33x |
5.47mm x 7.29mm |
| 0.8x |
38.1x |
6.07 x 8.10mm |
50.8x |
4.56mm x 6.07mm |
67.73x |
3.42mm x 4.56mm |
| 1.0x |
47.63x |
4.8 x 6.4mm |
63.50x |
3.6mm x 4.8mm |
95.25x |
2.7mm x 3.6mm |
| 1.5x |
71.44x |
3.2 x 4.3mm |
95.25x |
2.4mm x 3.2mm |
142.88x |
1.8mm x 2.4mm |
| 2.0x |
95.25x |
2.4 x 3.2mm |
127.0x |
1.8mm x 2.4mm |
190.50x |
1.4mm x 1.8mm |
|
|
|
| Extender Lens (option) |
|
Able to adjust magnification without changing W.D. (brightness will change)
put at back side of (C-Mount) lens |
| P/N |
TS-EX-15 |
TS-EX-20 |
TS-EX-30 |
TS-EX-50 |
| Description |
1.5x Extender |
2.0x Extender |
3.0x Extender |
5.0x Extender |
| Price (JPY) |
11,000(w/o tax)
12,100(w/ tax) |
12,000(w/o tax)
13,200(w/ tax) |
The price will be revised Feb. 1,2025
20,000(w/o tax)
22,000(w/ tax) |
27,000(w/o tax)
29,700(w/ tax) |
 |
 |
 |
 |
 |
|
|
|
| Dedicated LED Illumination , Stand Adapter(option) |
| P/N |
TS-LAX-590 |
TS-KV-100 |
TS-SA-5 |
| Description |
LED Ring light |
Battery box for LED light |
Stand Adapter |
| Specification |
90pcs white LED |
AC Power Supply with light control |
Dia.30 Lens Barrel with Tripod Socket Hole |
| External dimension |
External Dia.89 |
70 x 63 x 155mm |
Internal Dia.30 |
| Price(JPY) |
65,000(w/o tax)
71,500 (w / tax) |
73,000(w/o tax)
80,300 (w / tax) |
13,000(w/o tax)
14,300 (w / tax) |
 |
 |
 |
 |
|
|
| In-Line illumination（When you use TS-93002-CII In-Line illumination barrel） |
| P/N |
TS-93002-CII |
TS-0136H |
| Description |
In-Line illumination barrel |
M35.5/C-mount conversion adapter |
| Specification |
In-Line illumination barrel for TS-93002 |
Connect M35.5 P0.5 mount and C-mount adapters |
| Other info |
Inner Diameter of fiber mounting part：Dia.14㎜ |
|
| Price (JPY) |
47,000(w/o tax)
51,700（ w/ tax） |
4,000(w/o tax)
4,400（ w/ tax） |
|
 |
 |
|
| In-Line illumination（When using TS-0113H prism box） |
| P/N |
TS-0113H |
TS-0136H |
TS-0115H |
TS-36-CAD |
| Description |
C mount prism box |
M35.5/C-mount conversion adapter |
Male threads |
C-mount adapte for Inner Dia 17mm |
| Specification |
Cube beamsplitter 22x22x22mm |
Connect M35.5 P0.5 mount filter thread and prism box |
Applicable illumination：TS-LAX-02S Set 他 |
| External dimension |
35x335x35mm |
|
Inner Diameter of fiber mounting part： Dia.17㎜ |
| Price (JPY) |
25,000(w/o tax)
27,500（ w/ tax） |
4,000(w/o tax)
4,400（ w/ tax） |
2,500(w/o tax)
2,750（ w/ tax） |
3,500(w/o tax)
3,850（ w/ tax） |
 |
 |
TS-0136H
TS-0115H |
 |
|
|
|
|
|
|
|
|
