Half Mirror |
|
 |

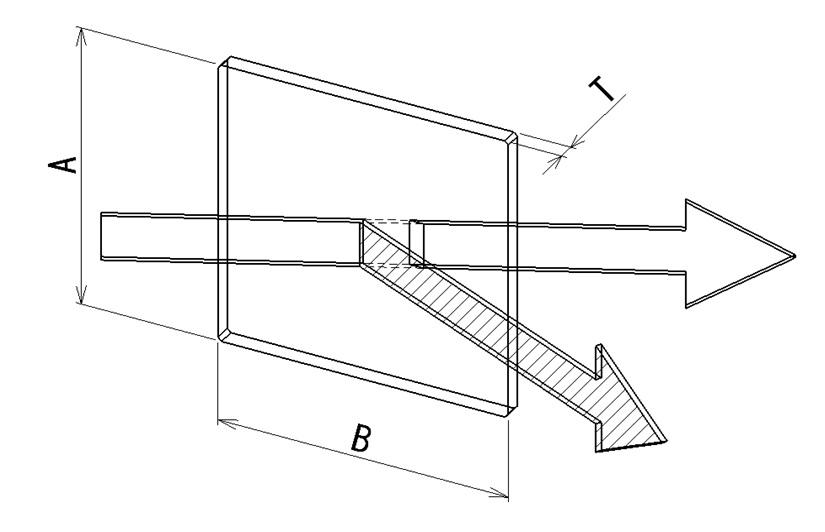

The single-sided dielectric multilayer film of the half mirror splits
the light incident at 45 into transmission and reflection (ratio 50:50).
The ratio of transmission and reflection varies depending on the angle
of incidence. The back side is treated with an anti-reflection coating.
Half-mirror Inconel has a metal coating, so the light rays that are incident
at 45 split into transmission and reflection (ratio 30:30). If you would
like to change the external dimensions or ratio, we accept special orders. |
|
 |
ĦApplication |
| Optical measurement equipment, optical demultiplexer, optical multiplexer,
medical equipment, optical communication equipment, Magic mirror |
| ĦSpecifications |
| Material |
B270 |
| Reflactive Index |
1.523/nd |
| Chamfering |
All circumferences or all ridge lines are chamfered |
| Design Wavelength |
400-700 nm |
| Dielectric multilayer film |
Transmittance:Reflection rate 50:50 |
| Inconel |
Transmittance:Reflection rate 30:30 |
|
| ĦTolerance |
| Outer size |
Square shape 5x5: +/-0.2(mm)
Square shape 30x30 to 100x100: +/-0.3(mm) |
| Thickness of Mirror |
+/-0.2(mm) |
| Parallelism |
Within 3 minutes(3') |
| Plate Surface Accuracy* |
3λ-λ/2(Effective range : Within 85% including center) |
| Surface Quality |
MIL60-40 |
|
| |
 |
|
| Part Number |
Coating |
Size(mm) |
TC |
Material |
Price
(without tax) |
Price w/tax |
Note |
| TS-0802R |
Inconel |
5x5 |
1.0 |
B270 |
2,500 |
2,750 |
- |
| TS-0803R |
Inconel |
30x30 |
2.0 |
B270 |
3,000 |
3,300 |
- |
| TS-0804R |
Inconel |
50x50 |
2.0 |
B270 |
5,000 |
5,500 |
- |
| TS-0805R |
Inconel |
100x100 |
2.0 |
B270 |
8,000 |
8,800 |
- |
| TS-0806R |
One side Dielectric Multilayer Film |
30x30 |
2.0 |
B270 |
5,000 |
5,500 |
- |
| TS-0807R |
One side Dielectric Multilayer Film |
50x50 |
2.0 |
B270 |
9,000 |
9,900 |
- |
| TS-0808R |
One side Dielectric Multilayer Film |
100x100 |
2.0 |
B270 |
15,000 |
16,500 |
- |
| TS-0841R |
Inconel |
30x30 |
1.0 |
B270 |
3,000 |
3,300 |
- |
| TS-0842R |
Inconel |
50x50 |
1.0 |
B270 |
5,000 |
5,500 |
- |
| TS-0843R |
Inconel |
100x100 |
1.0 |
B270 |
8,000 |
8,800 |
- |
| TS-0844R |
One side Dielectric Multilayer Film |
30x30 |
1.0 |
B270 |
5,000 |
5,500 |
- |
| TS-0845R |
One side Dielectric Multilayer Film |
50x50 |
1.0 |
B270 |
9,000 |
9,900 |
- |
| TS-0846R |
One side Dielectric Multilayer Film |
100x100 |
1.0 |
B270 |
15,000 |
16,500 |
- |
|
Q'ty of inventory for all the items are small, please ask for stock q'ty
at the time of ordering. The case there is no stock, max. lead time would
be 45 days.
*We do not guarantee the surface quality after coating. |
|
