Concave Mirror
Concave Mirror

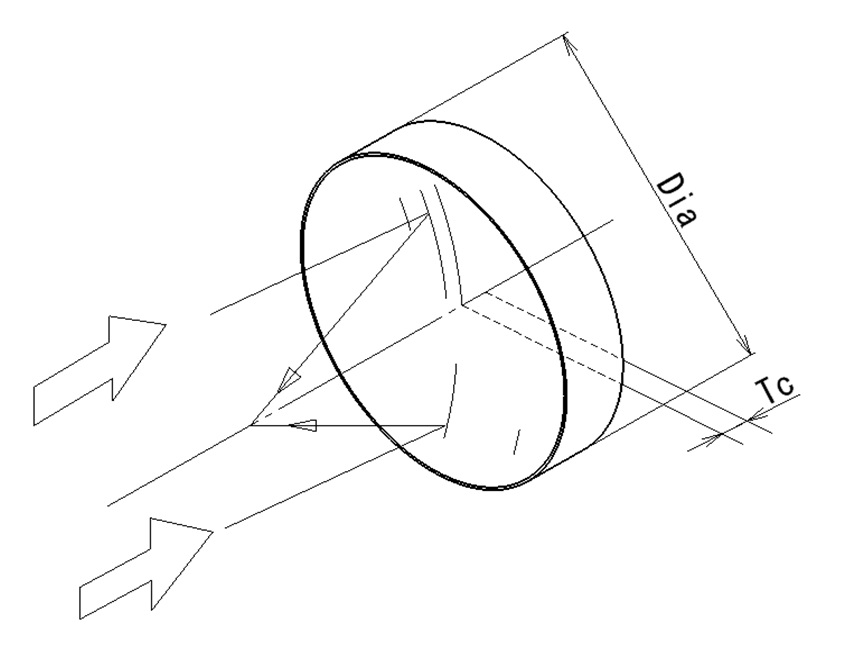

   A concave mirror reflects light incident at ƒĈ=0‹ in the focal direction.

The reflective surface has a protective film of aluminum + Sio.

We also accept special orders for materials, different types of coatings, and outer diameter changes that are not listed in the catalog.
  ĦApplications
Reflection telescope
Concentration of visible light and near infrared light
ĦSpecifications
Material BK-7
Reflactive Index 1.51680/nd
Chamfering All circumferences or all edge lines are chamfered
Design Wavelength 400-700 nm
ĦTolerance
Outer size +0/-0.2(mm)
Thickness of Mirror +/-0.2(mm)
Reflection rate (AL+SIO) Around 85%
Surface Quality MIL60-40

P/N Dia. F.L. TC Material Price
(without tax)		 Ċž‰żŠi
Price w/tax 		 Note
TS-0880R Dia.10 10.00 3.0 BK-7 4,320  4,752 Please ask*
TS-0881R Dia.10 20.00 3.0 BK-7 4,000  4,400 Please ask*
TS-0882R Dia.10 30.00 3.0 BK-7 -   RFQ
TS-0883R Dia.10 40.00 3.0 BK-7 -   RFQ
TS-0884R Dia.10 50.00 3.0 BK-7 -   RFQ
TS-0885R Dia.10 60.00 3.0 BK-7 -   obsolete
TS-0886R Dia.10 70.00 3.0 BK-7 -   obsolete
TS-0887R Dia.10 80.00 3.0 BK-7 4,000  4,400 Please ask*
TS-0888R Dia.10 90.00 3.0 BK-7 -   obsolete
TS-0889R Dia.10 100.00 3.0 BK-7 -   obsolete
TS-0904R Dia.20 15.00 3.0 BK-7 5,500  6,050 Please ask*2
TS-0905R Dia.20 20.00 3.0 BK-7 5,500  6,050 Please ask*2
TS-0906R Dia.20 30.00 3.0 BK-7 5,500  6,050 Please ask*
TS-0907R Dia.20 40.00 3.0 BK-7 5,500  6,050 Please ask*2
TS-0908R Dia.20 50.00 3.0 BK-7 5,500  6,050 Please ask
TS-0909R Dia.20 60.00 3.0 BK-7 5,500  6,050 Please ask*
TS-0910R Dia.20 70.00 3.0 BK-7 5,500  6,050 Please ask*2
TS-0911R Dia.20 80.00 3.0 BK-7 5,500  6,050 Please ask*
TS-0912R Dia.20 90.00 3.0 BK-7 5,500  6,050 Please ask*
TS-0913R Dia.20 100.00 3.0 BK-7 obsolete
TS-0914R Dia.20 150.00 3.0 BK-7 5,500  6,050 Please ask*
TS-0915R Dia.20 200.00 3.0 BK-7 obsolete
TS-0915R1 Dia.20 300.00 3.0 BK-7 5,500  6,050 Please ask*2
TS-0916R Dia.30 40.00 3.0 BK-7 6,000  6,600 Please ask*2
TS-0917R Dia.30 50.00 3.0 BK-7 -   RFQ
TS-0918R Dia.30 60.00 3.0 BK-7 - RFQ
TS-0919R Dia.30 70.00 3.0 BK-7 -   obsolete
TS-0920R Dia.30 80.00 3.0 BK-7 6,000  6,600 Please ask*
TS-0921R Dia.30 90.00 3.0 BK-7 -   RFQ
TS-0922R Dia.30 100.00 3.0 BK-7 - Please ask
TS-0923R Dia.30 150.00 3.0 BK-7 -   RFQ
TS-0924R Dia.30 200.00 3.0 BK-7 -   RFQ
TS-0925R Dia.30 300.00 3.0 BK-7 -   RFQ
TS-0937R Dia.50 30.00 3.0 BK-7 -   RFQ
TS-0938R Dia.50 40.00 3.0 BK-7 -   obsolete
TS-0939R Dia.50 50.00 3.0 BK-7 -   obsolete
TS-0940R Dia.50 60.00 3.0 BK-7 -   RFQ
TS-0941R Dia.50 70.00 3.0 BK-7 -   obsolete
TS-0942R Dia.50 80.00 3.0 BK-7 7,000   Please ask*
TS-0943R Dia.50 90.00 3.0 BK-7 -   obsolete
TS-0944R Dia.50 100.00 3.0 BK-7 7,000   Please ask*2
TS-0945R Dia.50 150.00 3.0 BK-7 7,000   Please ask*
TS-0946R Dia.50 200.00 3.0 BK-7 -   Please ask*
TS-0947R Dia.50 300.00 3.0 BK-7 78,000   Please ask*
Q'ty of inventory for all the items are small, please ask for stock q'ty at the time of ordering. The case there is no stock, max. lead time would be 45 days.
For those products does not indicate any prices are made-to-order items. Please ask us for the quotation for the quantities you require.@
*mark means that these products will be made-to-order items once our stock will be over.*2 mark means that these products will be obsolete once our stock will be over.
