Aluminized Surface Mirror |
|
 |
Aluminum surface mirrors have a reflective coating on one side to
reflect images and light rays. We use two types of protective films (SIO
or Mgf2) as standard products.
Compared with Mgf2, Sio absorbs material in the ultraviolet region and its reflectance is slightly lower, but it is affordable because it can be deposited at low temperature.
Please use according to the reflectance etc. We also accept customized orders for materials, coats, and dimensions other than those listed in the catalog. |
|
 |
ĦApplication |
Optical declination operation of laser
Shooting system optical path relay |
| ĦSpecifications |
| Material |
Crown |
| Reflactive Index |
1.523/nd |
| Chamfering |
All circumferences or all ridge lines are chamfered |
| Design Wavelength |
400-700 nm |
|
| ĦTolerance |
| Diameter |
Round Shape: +0/-0.2(mm)
Square Shape 5x5 to 10x10: +0/-0.2(mm)
Square Shape 30x30 to 100x100: +0/-0.3(mm) |
| Thickness of Mirror |
+/-0.2(mm) |
| Parallelism |
Within 3 minutes(3') |
| Plate Surface Accuracy*3 |
3λ-λ/2(Effective range : Within 85% including center) |
| Reflection rateiAL+SIOj |
Around 85% |
| Reflection rateiAL+mgf2j |
Around 90% |
| Surface Quality |
MIL60-40 |
|
| |
 |
|

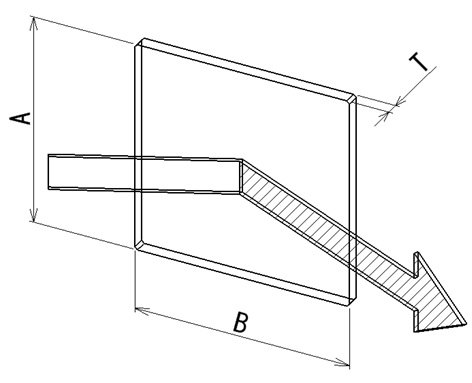

| P/N |
Size |
Coating |
TC |
Material |
Price
(without tax) |
Price w/tax |
Note |
| TS-0811R |
5x5 |
AL+SIO |
1.0 |
Float |
2,500 |
2,750 |
Grinded rear surface |
| TS-0812R |
10x10 |
AL+SIO |
1.0 |
Float |
2,000 |
2,200 |
-*2 |
| TS-0813R |
30x30 |
AL+SIO |
2.0 |
B270 |
3,400 |
3,740 |
-*2 |
| TS-0814R |
50x50 |
AL+SIO |
3.0 |
Float |
5,500 |
6,050 |
-*2 |
| TS-0815R |
100x100 |
AL+SIO |
3.0 |
Float |
19,800 |
21,780 |
-*2 |
| TS-0830R |
Dia.7 |
AL+SIO |
0.6 |
B270 |
3,000 |
3,300 |
Grinded rear surface |
| TS-0831R |
Dia.10 |
AL+SIO |
2.0 |
B270 |
2,000 |
2,200 |
-*2 |
| TS-0832R |
Dia.20 |
AL+SIO |
2.0 |
B270 |
2,000 |
2,200 |
-*2 |
| TS-0833R |
Dia.22 |
AL+SIO |
2.0 |
B270 |
3,000 |
3,300 |
Please ask*1 |
| TS-0834R |
Dia.26 |
AL+SIO |
2.5 |
B270 |
3,500 |
3,850 |
Please ask*1
Grinded rear surface
*4 |
| TS-0835R |
Dia.30 |
AL+SIO |
2.0 |
B270 |
3,500 |
3,850 |
-*2 |
| TS-0836R |
Dia.36 |
AL+SIO |
3.0 |
B270 |
5,000 |
5,500 |
Please ask*1
Grinded rear surface |
| TS-0837R |
Dia.40 |
AL+SIO |
3.0 |
B270 |
4,000 |
4,400 |
-*2 |
| TS-0838R |
Dia.50 |
AL+SIO |
7.0 |
B270 |
18,000 |
19,800 |
-*2 |
| TS-0840R |
Dia.76 |
AL+SIO |
8.0 |
B270 |
7,000 |
7,700 |
Please ask*1 *2 |
| TS-0847R |
30x30 |
AL+Mgf2 |
3.0 |
B270 |
6,000 |
6,600 |
Please ask*1
*2 |
| TS-0848R |
50x50 |
AL+Mgf2 |
3.0 |
B270 |
5,000 |
5,500 |
Please ask*1
*2 |
| TS-0849R |
100x100 |
AL+Mgf2 |
3.0 |
B270 |
19,800 |
21,780 |
Please ask*1
*2 |
| TS-0850R |
52.5x34 |
AL+Mgf2 |
2.0 |
B270 |
RFQ |
|
Please ask*1
*2 |
| TS-0851R |
72.3x46 |
AL+Mgf2 |
2.0 |
B270 |
RFQ |
|
Please ask*1
*2 |
| TS-0852R |
89.3x58 |
AL+Mgf2 |
2.0 |
B270 |
RFQ |
|
Please ask*1
*2 |
|
Q'ty of inventory for all the items are small, please ask for stock q'ty
at the time of ordering. The case there is no stock, max. lead time would
be 45 days.
*1 These product does not have large amount of stock. Please ask us for the availability when you request a quotation.
*2 The rear side of AL+Sio coated products are not grinded unless there
is any comment on the note column. If you need different rear surface,
please request us for the quotation.
*3We do not guarantee the surface quality after coating.
*4This part will be made-to-order once the stock will be over.
*5This part will be obsolete once the stock will be over.
|
|
