| Plano Concave Lens | |
|
 |
Plano-concave lenses have a negative focal length and are used for image reduction and divergence applications.
When combined with a convex lens, it is possible to arrange the optical
system, such as extending the working distance or expanding the LD beam.
The general usage is that the plano-concave lens is the same as the plano-convex
lens, and the parallel luminous flux is directed toward the concave side.
The products shown are uncoated, but we also accept custom orders for anti-reflection
coating and other coating. Please contact us for the coating simulation
data and the pricing.
|
|
 |
ĦApplications |
Autocollimator
Light Detection
Laser Collimation
Infinity corrected objective lens
|
| ĦSpecifications |
| Material |
BK-7 |
| Reflactive Index |
1.51680/nd |
| Design Wavelength |
587.6nm |
Chamfering
TChamfer*With Protective chamfering |
Dia.5 : 0.1mm
Dia.10 to Dia.100 : 0.2mm |
|
| ĦTolerance |
| Diameter |
+0mm/-0.1mm |
| Center Thickness |
+/-0.2mm |
| Focal Length |
+/-2% |
| Decentering |
Within 3 minutes(3') |
| Surface Quality |
MIL60-40 |
|
| |
|
| |
 |
|

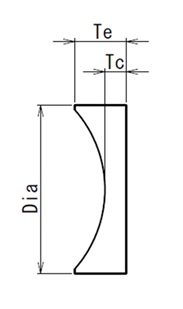

| P/N |
Dia. |
F.L. |
B.F.L. |
TC |
TE |
Material |
Price
(without tax) |
Price w/tax |
Note | | TS-0250S |
Dia.5 |
-10 |
-10.66 |
1.00 |
1.59 |
BK-7 |
2,400 |
2,640 |
Please ask | | TS-0251S |
Dia.5 |
-15 |
-15.67 |
1.00 |
1.38 |
BK-7 |
2,400 |
2,640 |
Please ask | | TS-0252S |
Dia.5 |
-20 |
-20.67 |
1.00 |
1.28 |
BK-7 |
2,400 |
2,640 |
Please ask | | TS-0252S1 |
Dia.5 |
-30 |
-30.67 |
1.00 |
1.19 |
BK-7 |
2,400 |
2,640 |
* | | TS-0252S2 |
Dia.5 |
-40 |
-40.67 |
1.00 |
1.14 |
BK-7 |
2,400 |
2,640 |
Please ask | | TS-0252S3 |
Dia.5 |
-50 |
-50.66 |
1.00 |
1.11 |
BK-7 |
2,400 |
2,640 |
Please ask |
| TS-0252S5 |
Dia.5 |
-70 |
-70.67 |
1.00 |
1.08 |
BK-7 |
3,780 |
4,158 |
Please ask |
| TS-0252S7 |
Dia.5 |
-90 |
-90.67 |
1.00 |
1.06 |
BK-7 |
2,400 |
2,640 |
* | | TS-0252S8 |
Dia.5 |
-100 |
-100.66 |
1.00 |
1.06 |
BK-7 |
2,400 |
2,640 |
Please ask | | TS-0253S |
Dia.10 |
-20 |
-20.65 |
1.00 |
2.23 |
BK-7 |
2,800 |
3,080 |
Please ask | | TS-0254S |
Dia.10 |
-30 |
-30.66 |
1.00 |
1.76 |
BK-7 |
2,500 |
2,750 |
Please ask | | TS-0254S1 |
Dia.10 |
-40 |
-40.66 |
1.00 |
1.59 |
BK-7 |
RFQ |
|
| | TS-0254S2 |
Dia.10 |
-50 |
-50.66 |
1.00 |
1.47 |
BK-7 |
2,500 |
2,750 |
Please ask | | TS-0254S3 |
Dia.10 |
-60 |
-60.66 |
1.00 |
1.39 |
BK-7 |
2,500 |
2,750 |
Please ask | | TS-0254S4 |
Dia.10 |
-70 |
-70.67 |
1.00 |
1.33 |
BK-7 |
4,800 |
5,280 |
Please ask | | TS-0254S5 |
Dia.10 |
-80 |
-80.67 |
1.00 |
1.29 |
BK-7 |
2,500 |
2,750 |
Please ask | | TS-0254S6 |
Dia.10 |
-90 |
-90.67 |
1.00 |
1.26 |
BK-7 |
2,500 |
2,750 |
* | | TS-0254S7 |
Dia.10 |
-100 |
-100.66 |
1.00 |
1.23 |
BK-7 |
2,500 |
2,750 |
Please ask | | TS-0254S17 |
Dia.20 |
-30 |
-30.66 |
1.00 |
4.49 |
BK-7 |
3,000 |
3,300 |
Please ask | | TS-0255S |
Dia.20 |
-40 |
-40.66 |
1.00 |
3.47 |
BK-7 |
3,000 |
3,300 |
Please ask | | TS-0256S |
Dia.20 |
-50 |
-50.66 |
1.00 |
2.93 |
BK-7 |
2,800 |
3,080 |
Please ask | | TS-0254S20 |
Dia.20 |
-60 |
-60.66 |
1.00 |
2.59 |
BK-7 |
2,800 |
3,080 |
Please ask | | TS-0254S21 |
Dia.20 |
-70 |
-70.67 |
1.00 |
2.35 |
BK-7 |
2,800 |
3,080 |
Please ask | | TS-0254S22 |
Dia.20 |
-80 |
-80.67 |
1.00 |
2.18 |
BK-7 |
2,800 |
3,080 |
Please ask | | TS-0254S23 |
Dia.20 |
-90 |
-90.67 |
1.00 |
2.04 |
BK-7 |
2,800 |
3,080 |
Please ask | | TS-0254S24 |
Dia.20 |
-100 |
-100.70 |
1.00 |
1.94 |
BK-7 |
2,800 |
3,080 |
Please ask | | TS-0254S25 |
Dia.30 |
-30 |
-31.33 |
2.00 |
10.83 |
BK-7 |
4,000 |
4,400 |
Please ask | | TS-0254S26 |
Dia.30 |
-40 |
-41.24 |
2.00 |
8.23 |
BK-7 |
4,000 |
4,400 |
Please ask | | TS-0254S27 |
Dia.30 |
-50 |
-51.32 |
2.00 |
6.66 |
BK-7 |
3,500 |
3,850 |
Please ask | | TS-0254S28 |
Dia.30 |
-60 |
-61.32 |
2.00 |
5.76 |
BK-7 |
3,500 |
3,850 |
Please ask | | TS-0254S29 |
Dia.30 |
-70 |
-71.33 |
2.00 |
5.17 |
BK-7 |
3,500 |
3,850 |
Please ask | | TS-0254S30 |
Dia.30 |
-80 |
-81.33 |
2.00 |
4.74 |
BK-7 |
3,550 |
3,905 |
Please ask | | TS-0254S31 |
Dia.30 |
-90 |
-91.33 |
2.00 |
4.42 |
BK-7 |
4,200 |
4,620 |
Please ask | | TS-0254S32 |
Dia.30 |
-100 |
-101.36 |
2.00 |
4.16 |
BK-7 |
3,550 |
3,905 |
Please ask | | TS-0254S33 |
Dia.30 |
-150 |
-151.34 |
2.00 |
3.43 |
BK-7 |
3,500 |
3,850 |
Please ask | | TS-0254S34 |
Dia.30 |
-200 |
-201.32 |
2.00 |
3.07 |
BK-7 |
3,500 |
3,850 |
Please ask | | TS-0254S35 |
Dia.30 |
-300 |
-301.34 |
2.00 |
2.71 |
BK-7 |
3,500 |
3,850 |
Please ask | | TS-0254S45 |
Dia.50 |
-70 |
-71.33 |
2.00 |
11.84 |
BK-7 |
5,700 |
6,270 |
Please ask | | TS-0254S46 |
Dia.50 |
-80 |
-81.33 |
2.00 |
10.26 |
BK-7 |
5,700 |
6,270 |
Please ask | | TS-0254S47 |
Dia.50 |
-90 |
-91.33 |
2.00 |
9.16 |
BK-7 |
5,700 |
6,270 |
Please ask | | TS-0254S48 |
Dia.50 |
-100 |
-101.36 |
2.00 |
8.34 |
BK-7 |
5,600 |
6,160 |
Please ask | | TS-0254S49 |
Dia.50 |
-150 |
-151.36 |
2.00 |
6.07 |
BK-7 |
5,550 |
6,105 |
Please ask | | TS-0254S50 |
Dia.50 |
-200 |
-201.32 |
2.00 |
5.02 |
BK-7 |
5,600 |
6,160 |
Please ask | | TS-0254S51 |
Dia.50 |
-300 |
-301.34 |
2.00 |
4.00 |
BK-7 |
6,000 |
6,600 |
Please ask |
| Q'ty of inventory for all the items are small, please ask for stock q'ty
at the time of ordering. The case there is no stock, max. lead time would
be 45 days.
*This part will be made-to-order once the stock will be over.
**This part will be obsolete once the stock will be over. |
|
