Achromatic Lens |
|
 |
An achromatic lens is a lens that corrects chromatic and spherical aberrations
by combining two convex and concave lenses with different refractive indices.
Depending on the conditions, it is also possible to satisfy the Marechal
criterion (less than 0.07λ RMS ≒ no aberration).
Our achromatic lenses have a lineup of two types of anti-reflection coatings.
If you require different design wavelength or outer diameter, please contact
us. For the coating simulation data and the price, please contact us.
|
|
 |
■Application |
Telescope
Binoculars
Lasers
Cameras
Relay lens
Teleconverter
Wide converter
Eyepiece lens
Astronomical telescope objective lens
Collimation of semiconductor lasers etc
|
| ■Specifications |
| Design Wavelength |
587.6nm |
Chamfering
TChamfer*With Protective chamfering |
Dia.3 to 5 : 0.1mm
Dia.10 to 100 : 0.2mm |
| Surface Quality |
MIL60-40 |
| Coating |
Multi Layer Coating : 400 to 700nm
Magenta Coating : 540nm |
|
| ■Tolerance |
| Diameter |
+0mm/-0.1mm |
| Center Thickness |
+/-0.2mm |
| Focal Length |
+/-2% |
| Decentering |
Within 3 minutes(3') |
| Surface Quality |
MIL60-40 |
|
| |
|
| |
 |
|
| ■Multi Layer Coating (400-700nm) |

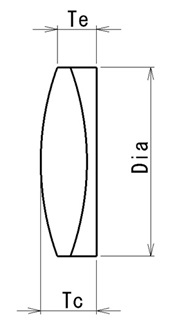

| P/N |
Dia. |
F.L. |
B.F.L. |
TC |
TE |
Price
（JPYT） |
Price incl/tax
(JPY) |
Note |
| TS-0362A1 |
Dia.15 |
30 |
23.20 |
12.8 |
10.92 |
7,500 |
8,250 |
|
| TS-0362A2 |
Dia.15 |
40 |
34.90 |
9.3 |
7.93 |
7,500 |
8,250 |
|
| TS-0362A3 |
Dia.15 |
50 |
45.30 |
8.3 |
7.21 |
7,500 |
8,250 |
|
| TS-0362A4 |
Dia.15 |
60 |
55.50 |
7.8 |
6.90 |
7,500 |
8,250 |
|
| TS-0362A5 |
Dia.15 |
70 |
64.80 |
7.8 |
7.02 |
7,500 |
8,250 |
|
| TS-0362A6 |
Dia.15 |
80 |
73.60 |
7.1 |
6.37 |
7,500 |
8,250 |
|
| TS-0362A7 |
Dia.15 |
90 |
86.00 |
6.5 |
5.69 |
7,500 |
8,250 |
|
| TS-0362A8 |
Dia.15 |
100 |
95.50 |
6.5 |
5.75 |
7,500 |
8,250 |
|
| TS-0362A9 |
Dia.15 |
150 |
145.30 |
6.5 |
5.94 |
7,500 |
8,250 |
|
| TS-0362A10 |
Dia.15 |
200 |
197.35 |
5.0 |
4.53 |
7,500 |
8,250 |
|
| TS-0380A |
Dia.20 |
30 |
23.17 |
12.8 |
9.08 |
9,000 |
9,900 |
|
| TS-0381A |
Dia.20 |
40 |
34.87 |
9.3 |
6.86 |
8,000 |
8,800 |
|
| TS-0382A |
Dia.20 |
50 |
45.32 |
8.3 |
6.37 |
8,000 |
8,800 |
|
| TS-0383A |
Dia.20 |
60 |
55.51 |
7.8 |
6.20 |
8,000 |
8,800 |
|
| TS-0384A |
Dia.20 |
70 |
64.89 |
7.8 |
6.43 |
8,000 |
8,800 |
|
| TS-0385A |
Dia.20 |
80 |
73.60 |
7.1 |
5.90 |
8,000 |
8,800 |
|
| TS-0386A |
Dia.20 |
90 |
86.04 |
6.5 |
5.22 |
8,000 |
8,800 |
|
| TS-0387A |
Dia.20 |
100 |
95.49 |
6.5 |
5.53 |
8,000 |
8,800 |
|
| TS-0388A |
Dia.20 |
150 |
145.3 |
6.5 |
5.66 |
8,000 |
8,800 |
|
| TS-0389A |
Dia.20 |
200 |
197.35 |
5.0 |
4.32 |
8,000 |
8,800 |
|
|
The case there is no stock, we need max. lead time of 45 days after receive
order.
|
| ■Mgf2 (Magenta) Single Layer coat |
| P/N |
Dia. |
F.L. |
B.F.L. |
TC |
TE |
Price
(JPY) |
Price incl/tax
(JPY) |
Note |
| TS-0349A1 |
Dia.5 |
10 |
7.6 |
4.4 |
3.96 |
6,000 |
6,600 |
|
| TS-0349A2 |
Dia.5 |
12 |
9.4 |
4.9 |
4.53 |
6,000 |
6,600 |
|
| TS-0349A3 |
Dia.5 |
16 |
13.4 |
4.9 |
4.54 |
6,000 |
6,600 |
|
| TS-0349A4 |
Dia.5 |
20 |
17 |
5.6 |
5.30 |
6,000 |
6,600 |
|
| TS-0349A5 |
Dia.5 |
25 |
22.6 |
5.1 |
4.90 |
6,000 |
6,600 |
|
| TS-0349A6 |
Dia.5 |
30 |
27.6 |
4.5 |
4.32 |
6,000 |
6,600 |
* |
| TS-0350A |
Dia.8 |
12 |
9.4 |
4.9 |
3.89 |
7,000 |
7,700 |
|
| TS-0350A1 |
Dia.8 |
16 |
13.327 |
4.9 |
4.10 |
6,000 |
6,600 |
|
| TS-0350A2 |
Dia.8 |
20 |
18.24 |
3.7 |
2.89 |
5,000 |
5,500 |
|
| TS-0350A3 |
Dia.8 |
25 |
22.6 |
5.1 |
4.50 |
5,000 |
5,500 |
|
| TS-0350A4 |
Dia.8 |
30 |
27.033 |
4.5 |
4.00 |
5,000 |
5,500 |
|
| TS-0350A5 |
Dia.8 |
35 |
32.08 |
4.5 |
4.07 |
5,000 |
5,500 |
|
| TS-0350A6 |
Dia.8 |
40 |
37.082 |
4.5 |
4.13 |
5,000 |
5,500 |
|
| TS-0350A7 |
Dia.8 |
50 |
47.105 |
4.5 |
4.20 |
5,000 |
5,500 |
|
| TS-0350A8 |
Dia.8 |
60 |
57.428 |
4.0 |
3.75 |
5,000 |
5,500 |
|
| TS-0350A9 |
Dia.8 |
70 |
67.426 |
4.0 |
3.79 |
5,000 |
5,500 |
|
| TS-0350A10 |
Dia.8 |
75 |
72.475 |
4.0 |
3.80 |
5,000 |
5,500 |
|
| TS-0350A11 |
Dia.8 |
80 |
77.459 |
4.0 |
3.81 |
5,000 |
5,500 |
|
| TS-0350A12 |
Dia.8 |
90 |
87.417 |
4.0 |
3.83 |
5,000 |
5,500 |
* |
| TS-0350A13 |
Dia.8 |
100 |
97.372 |
4.0 |
3.85 |
5,000 |
5,500 |
|
| TS-0351A |
Dia.10 |
25 |
22.6 |
5.1 |
4.18 |
5,500 |
6,050 |
|
| TS-0351A1 |
Dia.10 |
30 |
27.033 |
4.5 |
3.79 |
5,500 |
6,050 |
|
| TS-0351A2 |
Dia.10 |
35 |
32.08 |
4.5 |
3.89 |
5,500 |
6,050 |
|
| TS-0351A3 |
Dia.10 |
40 |
37.082 |
4.5 |
3.97 |
5,500 |
6,050 |
|
| TS-0351A4 |
Dia.10 |
50 |
47.105 |
4.5 |
4.08 |
5,500 |
6,050 |
|
| TS-0351A5 |
Dia.10 |
60 |
57.428 |
4.0 |
3.65 |
5,500 |
6,050 |
|
| TS-0351A6 |
Dia.10 |
70 |
67.426 |
4.0 |
3.70 |
5,500 |
6,050 |
|
| TS-0351A7 |
Dia.10 |
75 |
72.475 |
4.0 |
3.72 |
5,500 |
6,050 |
* |
| TS-0351A8 |
Dia.10 |
80 |
77.459 |
4.0 |
3.74 |
5,500 |
6,050 |
|
| TS-0351A9 |
Dia.10 |
90 |
87.417 |
4.0 |
3.77 |
5,500 |
6,050 |
|
| TS-0351A10 |
Dia.10 |
100 |
97.372 |
4.0 |
3.79 |
5,500 |
6,050 |
* |
| TS-0368A1 |
Dia.30 |
50 |
42.5 |
13.0 |
8.26 |
8,500 |
9,350 |
|
| TS-0368A2 |
Dia.30 |
60 |
54.6 |
10.8 |
6.87 |
8,500 |
9,350 |
|
| TS-0368A3 |
Dia.30 |
70 |
65.2 |
9.5 |
6.27 |
8,500 |
9,350 |
|
| TS-0368A4 |
Dia.30 |
80 |
75.4 |
8.6 |
5.79 |
8,500 |
9,350 |
|
| TS-0368A5 |
Dia.30 |
90 |
86.1 |
7.9 |
5.41 |
8,500 |
9,350 |
|
| TS-0368A6 |
Dia.30 |
100 |
96.2 |
7.5 |
5.27 |
8,500 |
9,350 |
|
| TS-0368A7 |
Dia.30 |
130 |
125 |
9.2 |
7.34 |
8,500 |
9,350 |
|
| TS-0368A8 |
Dia.30 |
150 |
147 |
5.9 |
4.43 |
8,500 |
9,350 |
|
| TS-0368A9 |
Dia.30 |
200 |
197.51 |
5.2 |
4.10 |
8,500 |
9,350 |
|
| TS-0368A10 |
Dia.30 |
300 |
298 |
4.5 |
3.77 |
8,500 |
9,350 |
* |
| TS-0368A11 |
Dia.30 |
400 |
397.9 |
4.2 |
3.65 |
8,500 |
9,350 |
* |
| TS-0368A12 |
Dia.30 |
500 |
498.1 |
4.7 |
3.55 |
11,000 |
12,100 |
Please ask |
| TS-0369A |
Dia.40 |
150 |
143.8 |
11.5 |
8.47 |
9,500 |
10,450 |
Please ask |
| TS-0371A |
Dia.40 |
60 |
50.5 |
18.8 |
11.60 |
9,500 |
10,450 |
Please ask |
| TS-0371A1 |
Dia.40 |
70 |
62.6 |
15.4 |
9.41 |
9,500 |
10,450 |
* |
| TS-0371A2 |
Dia.40 |
80 |
73 |
13.5 |
8.32 |
22,000 |
24,200 |
* |
| TS-0371A3 |
Dia.40 |
90 |
83.6 |
12.1 |
7.53 |
|
|
RFQ |
| TS-0371A4 |
Dia.40 |
100 |
94.3 |
11.1 |
7.03 |
9,500 |
10,450 |
Please ask |
| TS-0371A5 |
Dia.40 |
200 |
196 |
7.1 |
5.10 |
13,000 |
14,300 |
Please ask |
| TS-0371A6 |
Dia.40 |
300 |
296.1 |
5.8 |
4.47 |
15,000 |
16,500 |
Please ask |
| TS-0371A7 |
Dia.40 |
400 |
397.4 |
5.2 |
4.23 |
9,500 |
10,450 |
Please ask |
| TS-0371A8 |
Dia.40 |
500 |
498.1 |
4.8 |
4.01 |
9,500 |
10,450 |
Please ask |
| TS-0371A10 |
Dia.40 |
250 |
247.18 |
6.3 |
4.71 |
18,000 |
19,800 |
Please ask |
| TS-0371A9 |
Dia.50 |
80 |
69.2 |
20.6 |
12.19 |
12,000 |
13,200 |
Please ask |
| TS-0372A1 |
Dia.50 |
90 |
80.7 |
18.1 |
10.74 |
12,000 |
13,200 |
Please ask |
| TS-0372A2 |
Dia.50 |
100 |
90.7 |
17.0 |
10.44 |
18,000 |
19,800 |
* |
| TS-0372A4 |
Dia.50 |
180 |
174.98 |
10.1 |
6.58 |
12,000 |
13,200 |
Please ask |
| TS-0372A5 |
Dia.50 |
190 |
186.06 |
13.5 |
9.75 |
12,000 |
13,200 |
* |
| TS-0372A6 |
Dia.50 |
200 |
192.8 |
13.5 |
10.22 |
16,700 |
18,370 |
Please ask |
| TS-0372A7 |
Dia.50 |
250 |
241.8 |
14.0 |
11.47 |
12,000 |
13,200 |
Please ask |
| TS-0372A8 |
Dia.50 |
300 |
296.18 |
7.4 |
5.30 |
20,000 |
22,000 |
Please ask |
| TS-0372A9 |
Dia.50 |
400 |
397.14 |
6.4 |
4.82 |
12,000 |
13,200 |
* |
| TS-0372A10 |
Dia.50 |
500 |
497.6 |
5.9 |
4.64 |
12,000 |
13,200 |
Please ask |
| TS-0372A11 |
Dia.50 |
800 |
797.9 |
5.0 |
4.22 |
15,000 |
16,500 |
Please ask |
| TS-0372A12 |
Dia.50 |
1000 |
997.8 |
4.7 |
4.07 |
12,000 |
13,200 |
* |
| TS-0376A |
Dia.63 |
250 |
240.7 |
17.0 |
12.42 |
- |
|
RFQ |
| TS-0377A |
Dia.63 |
300 |
291 |
18.0 |
14.27 |
- |
|
RFQ |
| TS-0377A1 |
Dia.73 |
300 |
291 |
18.0 |
12.88 |
- |
|
RFQ |
| TS-0378A |
Dia.83 |
400 |
390 |
19.0 |
13.92 |
- |
|
RFQ |
| TS-0378A1 |
Dia.83 |
300 |
289.27 |
20.0 |
13.48 |
- |
|
RFQ |
|
The case there is no stock, we need max. lead time of 45 days after receive
order.
*This part will be made-to-order once the stock will be over.
**This part will be obsolete once the stock will be over. |
|
