Plano Convex Lens |
|
|
 |
Plano-convex lenses have a positive focal length and are used for image
enlargement, focusing, and collimating.
This lens is suitable for infinite systems. The general usage is to inject
a parallel light flux (or a distant light source) from the convex side
to minimize the amount of spherical aberration, and the light flux emitted
from the flat side is focused.
The products shown are uncoated, but we also accept custom orders for anti-reflection
coating and other coating. Please contact us for the coating simulation
data and the pricing.
|
|
 |
ĦApplication |
Enlarge image
Collimation
Focusing application
|
| ĦSpecifications |
| Material |
B270 |
BK-7 |
F2 |
| Reflactive Index (Nd) |
1.5230/Nd |
1.51680/Nd |
1.62004/Nd |
| Reflactive Index (Ne) |
1.5251/Ne |
1.51872/Ne |
1.62408/Ne |
| Design Wavelength |
587.6nm |
Chamfering
Chamfer*With Protective chamfering |
Dia.3 to Dia.5 : 0.1mm
Dia.10 to Dia.100 : 0.2mm |
|
| ĦTolerance |
| Diameter |
+0mm/-0.1mm |
| Center Thickness |
+/-0.2mm |
| Focal Length |
+/-2% |
| Decentering |
Within 3 minutes(3') |
| Surface Quality |
MIL60-40 |
|
|
|
| |
 |
|

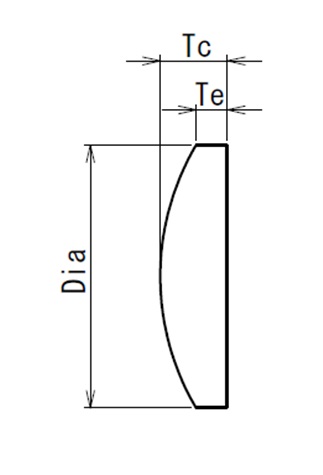

| P/N |
Dia. |
F.L. |
B.F.L. |
Tc |
Te |
Material |
Price
(without tax) |
Price w/tax |
Note |
| TS-0259S |
Dia.3 |
10 |
8.80 |
2.00 |
1.81 |
B270 |
2,400 |
2,640 |
|
| TS-0260S |
Dia.3 |
20 |
18.80 |
2.00 |
1.91 |
B270 |
2,400 |
2,640 |
|
| TS-0261S |
Dia.5 |
10 |
8.80 |
2.00 |
1.43 |
B270 |
2300 |
2,530 |
|
| TS-0262S |
Dia.5 |
20 |
18.80 |
2.00 |
1.72 |
B270 |
2300 |
2,530 |
|
| TS-0263S |
Dia.10 |
20 |
18.40 |
2.50 |
1.34 |
B270 |
2300 |
2,530 |
|
| TS-0264S |
Dia.10 |
30 |
28.40 |
2.50 |
1.73 |
B270 |
2300 |
2,530 |
|
| TS-0265S |
Dia.10 |
30 |
28.40 |
2.50 |
1.74 |
BK-7 |
2,400 |
2,640 |
|
| TS-0266S |
Dia.10 |
40 |
38.40 |
2.50 |
1.94 |
BK-7 |
2,400 |
2,640 |
|
| TS-0267S |
Dia.10 |
50 |
48.80 |
1.90 |
1.45 |
BK-7 |
2,400 |
2,640 |
|
| TS-0268S |
Dia.10 |
60 |
58.70 |
1.90 |
1.53 |
BK-7 |
2,400 |
2,640 |
|
| TS-0269S |
Dia.10 |
70 |
68.90 |
1.80 |
1.48 |
BK-7 |
2,400 |
2,640 |
|
| TS-0270S |
Dia.10 |
80 |
78.80 |
1.80 |
1.52 |
BK-7 |
2,400 |
2,640 |
|
| TS-0271S |
Dia.10 |
90 |
88.80 |
1.80 |
1.55 |
BK-7 |
2,400 |
2,640 |
|
| TS-0272S |
Dia.10 |
100 |
98.80 |
1.80 |
1.58 |
BK-7 |
2,400 |
2,640 |
|
| TS-0273S |
Dia.15 |
30 |
27.80 |
3.50 |
1.68 |
BK-7 |
2,400 |
2,640 |
|
| TS-0274S |
Dia.15 |
40 |
38.10 |
3.00 |
1.67 |
BK-7 |
2,400 |
2,640 |
|
| TS-0275S |
Dia.15 |
50 |
48.20 |
2.80 |
1.75 |
BK-7 |
2,400 |
2,640 |
|
| TS-0276S |
Dia.15 |
60 |
58.30 |
2.50 |
1.63 |
BK-7 |
2,400 |
2,640 |
|
| TS-0277S |
Dia.15 |
70 |
68.40 |
2.50 |
1.76 |
BK-7 |
2,400 |
2,640 |
|
| TS-0278S |
Dia.15 |
80 |
78.40 |
2.50 |
1.85 |
BK-7 |
2,400 |
2,640 |
|
| TS-0279S |
Dia.15 |
90 |
88.50 |
2.30 |
1.72 |
BK-7 |
2,400 |
2,640 |
|
| TS-0280S |
Dia.15 |
100 |
98.50 |
2.30 |
1.78 |
BK-7 |
2,400 |
2,640 |
|
| TS-0281S |
Dia.15 |
150 |
148.60 |
2.20 |
1.86 |
BK-7 |
2,400 |
2,640 |
|
| TS-0282S |
Dia.15 |
200 |
198.80 |
2.00 |
1.74 |
BK-7 |
2,400 |
2,640 |
|
| TS-0283S |
Dia.20 |
30 |
26.30 |
5.70 |
2.22 |
BK-7 |
2,450 |
2,695 |
|
| TS-0284S |
Dia.20 |
40 |
37.00 |
4.60 |
2.13 |
BK-7 |
2,450 |
2,695 |
|
| TS-0285S |
Dia.20 |
50 |
47.40 |
4.00 |
2.07 |
BK-7 |
2,450 |
2,695 |
|
| TS-0286S |
Dia.20 |
60 |
57.50 |
3.70 |
2.11 |
BK-7 |
2,450 |
2,695 |
|
| TS-0287S |
Dia.20 |
70 |
67.70 |
3.50 |
2.15 |
BK-7 |
2,450 |
2,695 |
|
| TS-0288S |
Dia.20 |
80 |
77.80 |
3.30 |
2.12 |
BK-7 |
2,450 |
2,695 |
|
| TS-0289S |
Dia.20 |
90 |
88.00 |
3.10 |
2.06 |
BK-7 |
2,450 |
2,695 |
|
| TS-0290S |
Dia.20 |
100 |
98.10 |
3.00 |
2.06 |
BK-7 |
2,450 |
2,695 |
|
| TS-0291S |
Dia.20 |
150 |
148.10 |
3.00 |
2.38 |
BK-7 |
2,700 |
2,970 |
|
| TS-0292S |
Dia.20 |
200 |
198.40 |
2.50 |
2.03 |
BK-7 |
2,450 |
2,695 |
|
| TS-0293S |
Dia.20 |
300 |
298.40 |
2.50 |
2.19 |
BK-7 |
2,700 |
2,970 |
|
| TS-0294S |
Dia.30 |
30 |
23.80 |
10.00 |
2.67 |
F2 |
2,800 |
3,080 |
|
| TS-0295S |
Dia.30 |
40 |
34.50 |
8.50 |
2.27 |
BK-7 |
3,100 |
3,410 |
|
| TS-0296S |
Dia.30 |
50 |
45.70 |
7.00 |
2.34 |
BK-7 |
2,800 |
3,080 |
|
| TS-0297S |
Dia.30 |
60 |
56.00 |
6.00 |
2.24 |
BK-7 |
2,800 |
3,080 |
|
| TS-0298S |
Dia.30 |
70 |
66.40 |
5.50 |
2.34 |
BK-7 |
2,800 |
3,080 |
|
| TS-0299S |
Dia.30 |
80 |
76.70 |
5.00 |
2.26 |
BK-7 |
2,800 |
3,080 |
|
| TS-0300S |
Dia.30 |
90 |
87.10 |
4.50 |
2.08 |
BK-7 |
3,000 |
3,300 |
|
| TS-0301S |
Dia.30 |
100 |
96.70 |
5.00 |
2.84 |
BK-7 |
2,900 |
3,190 |
|
| TS-0302S |
Dia.30 |
150 |
147.80 |
3.50 |
2.07 |
BK-7 |
2,900 |
3,190 |
|
| TS-0303S |
Dia.30 |
200 |
198.10 |
3.00 |
1.94 |
BK-7 |
2,900 |
3,190 |
|
| TS-0304S |
Dia.30 |
300 |
297.60 |
3.50 |
2.79 |
BK-7 |
3,500 |
3,850 |
|
| TS-0305S |
Dia.40 |
46.4 |
38.20 |
12.50 |
2.06 |
BK-7 |
3,300 |
3,630 |
|
| TS-0306S |
Dia.40 |
50 |
42.40 |
11.50 |
2.27 |
BK-7 |
3,700 |
4,070 |
|
| TS-0307S |
Dia.40 |
53.23 |
46.6 |
10.00 |
1.80 |
BK-7 |
3,200 |
3,520 |
|
| TS-0308S |
Dia.40 |
60 |
53.40 |
10.00 |
2.85 |
BK-7 |
3,200 |
3,520 |
|
| TS-0309S |
Dia.40 |
70 |
64.80 |
8.00 |
2.11 |
BK-7 |
3,200 |
3,520 |
|
| TS-0310S |
Dia.40 |
80 |
75.20 |
7.20 |
2.15 |
BK-7 |
4,400 |
4,840 |
|
| TS-0311S |
Dia.40 |
90 |
85.20 |
7.00 |
2.58 |
BK-7 |
3,780 |
4,158 |
|
| TS-0312S |
Dia.40 |
100 |
96.00 |
6.20 |
2.26 |
BK-7 |
3,700 |
4,070 |
|
| TS-0313S |
Dia.40 |
150 |
146.80 |
5.00 |
2.43 |
BK-7 |
4,600 |
5,060 |
*
|
| TS-0314S |
Dia.40 |
200 |
197.40 |
4.00 |
2.09 |
BK-7 |
3,200 |
3,520 |
|
| TS-0316S |
Dia.50 |
60 |
49.60 |
15.80 |
3.53 |
BK-7 |
5,300 |
5,830 |
|
| TS-0317S |
Dia.50 |
70 |
61.30 |
13.20 |
3.46 |
BK-7 |
6,000 |
6,600 |
|
| TS-0318S |
Dia.50 |
80 |
72.30 |
11.70 |
3.51 |
BK-7 |
5,000 |
5,500 |
|
| TS-0319S |
Dia.50 |
90 |
83.00 |
10.60 |
3.47 |
BK-7 |
4,300 |
4,730 |
|
| TS-0420S |
Dia.50 |
100 |
93.50 |
9.80 |
3.52 |
BK-7 |
RFQ |
|
|
| TS-0421S |
Dia.50 |
150 |
145.20 |
7.50 |
3.46 |
BK-7 |
4,300 |
4,730 |
|
| TS-0422S |
Dia.50 |
200 |
195.70 |
6.50 |
3.50 |
BK-7 |
4,700 |
5,170 |
|
| TS-0423S |
Dia.50 |
300 |
296.40 |
5.40 |
3.42 |
BK-7 |
4,300 |
4,730 |
|
| TS-0425S |
Dia.80 |
100 |
85.40 |
22.20 |
3.50 |
BK-7 |
14,500 |
15,950 |
|
| TS-0426S |
Dia.80 |
150 |
140.40 |
14.60 |
3.61 |
BK-7 |
14,000 |
15,400 |
|
| TS-0427S |
Dia.80 |
200 |
192.30 |
11.60 |
3.63 |
BK-7 |
14,500 |
15,950 |
|
| TS-0428S |
Dia.80 |
250 |
243.50 |
9.90 |
3.62 |
BK-7 |
14,000 |
15,400 |
|
| TS-0429S |
Dia.80 |
300 |
294.20 |
8.80 |
3.60 |
BK-7 |
RFQ |
|
|
| TS-0431S |
Dia.100 |
300 |
292.24 |
11.80 |
3.62 |
BK-7 |
16,000 |
17,600 |
Please ask
|
| TS-0432S |
Dia.100 |
400 |
393.60 |
9.70 |
3.64 |
BK-7 |
16,650 |
18,315 |
Please ask
|
| TS-0436S |
Dia.100 |
1000 |
996.04 |
6.00 |
3.60 |
BK-7 |
18,500 |
20,350 |
Please ask
|
*This part will be made-to-order once the stock will be over.
**This part will be obsolete once the stock will be over.
|
|
