Wedge Prism |
|
 |
A wedge prism can deviate incident light from a parallel plane by rotating
the prism. This depends on the angle of the exit face, and by using two
of the same angle, the effect can be doubled. It will be an uncoated product. |
|
 |
■Application |
| To adjust the laser beam irradiation direction |
| ■Specifications |
| Material |
BK-7 |
| Reflactive Index |
1.51680/nd |
| Design Wavelength |
587.6nm |
|
| ■Tolerance |
| Diameter |
+/-0.2(mm) |
| Angle |
+/-3' |
| Surface Parallelism |
+/-3' |
| Surface Flantness |
λ |
| Surface Quality |
MIL60-40 |
|
| |
 |
|

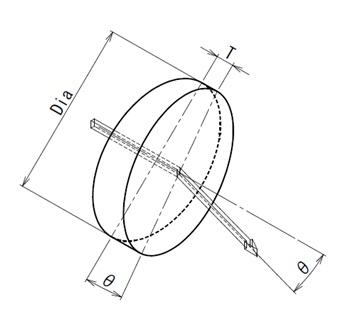

| P/N |
Dia |
θ
Wedge Angle
|
θ°
Beam Declination |
Size T |
Material |
JPY Price
(without tax) |
Note |
| TS-0741P |
Dia.20 |
1° |
0.52° |
3 |
BK-7 |
As soon as stock sold out, this becomes special order item |
Please ask |
| TS-0742P |
Dia.20 |
2° |
1.03° |
3 |
BK-7 |
Please ask |
| TS-0743P |
Dia.20 |
3° |
1.55° |
1 |
BK-7 |
Please ask |
| TS-0744P |
Dia.20 |
8° |
4.19° |
2 |
BK-7 |
Please ask |
|
| Q'ty of inventory for all the items are small, please ask for stock q'ty
at the time of ordering. The case there is no stock, max. lead time would
be 45 days. |
|
