Schmidt Prism |
|
 |

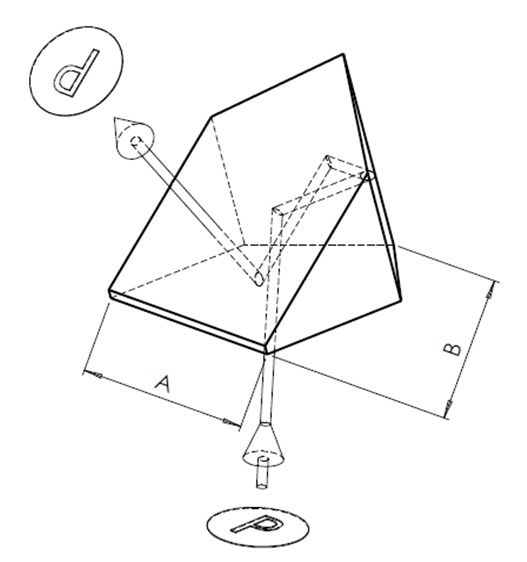

The Schmidt prism uses two surfaces of the roof to reflect the incident
light and image a total of four times, creating a deflection angle of 45
with respect to the back optically polished surface.
The image emitted from the back side is inverted and horizontally reversed.
The roof surface has an aluminum reflective coat and black paint to increase
image reflection.
It is also possible to incorporate it into the lens barrel and secure the image. |
|
 |
ĦApplication |
| Microscope eyepiece optics |
| ĦSpecifications |
| Material |
BK-7 |
| Reflactive Index |
1.51680/nd |
|
| ĦTolerance |
| Diameter |
+/-0.2(mm) |
| Angle |
+/-3' |
| Pyramid error |
+/-3' |
| Surface Flantness |
λ |
| Surface Quality |
MIL60-40 |
|
| |
 |
|
| P/N |
Size A |
Size B |
Material |
Price w/o tax |
Price w/tax |
Note |
| TS-0758P |
11mm |
16 |
BK-7 |
18,000 |
19,800 |
*Please ask |
| TS-0759P |
17mm |
25mm |
BK-7 |
20,000 |
22,000 |
*Please ask |
| TS-0760P |
20mm |
29mm |
BK-7 |
22,000 |
24,200 |
*Please ask |
|
Q'ty of inventory for all the items are small, please ask for stock q'ty
at the time of ordering. The case there is no stock, max. lead time would
be 45 days.
* The above products will be made-to-order once all our stock will be gone. |
|
