| TS-1-7/TS-1-10A/TS-1-15 |
|
|
| Small and light weight with wider angle of View loupe with scale "Pocket
Micrometer" |
TS-1-7 TS-1-10A TS-1-15 |
| ■ |
Small and light-weight with wider angle of view loupe with scale "Pocket
Micrometer" |
|
This scale built in loupe has wider angle of view allows users easier inspection
at the production site. |
| ■ |
Diopter is installed to change focus |
|
Useful as a means to change focus on one eyepiece so as to correct for
any difference in vision between your eye. |
| ■ |
Achromatic lens with AR coating |
|
Since the glass lens has an anti-reflection coating, it is gentle on the
eyes and does not tire the eyes even when working for a long time. |
| ■ |
Bright up to Peripheral Part |
|
By Acrylic Lighting Tube, you can get blight image up to Peripheral Part |
| ■ |
Scale is installed in the product |
|
TS-1-7 and TS-1-10A has TS-M1-100 scale, also TS-1-15 has scale TS-M2-1
installed as a standard set. |
| ■ |
Various types of scales are available |
|
We have 11 types of Scale to TS-1-7 and TS-1-10A, and two types of Scale
for TS-1-15. You can pick the best scale that suit your application. |
|
| |
Please download the catalog from here  |
|
|
|
|
|
| P/N |
Description |
Mag. |
Outer Dia. |
Length |
F.V. |
W.D |
Lens construction |
Weight |
Price w/o tax (JPY) |
Price w/tax (JPY) |
| TS-1-7 |
Pocket Micrometer 7x |
7x |
43mm |
53 to 60mm |
32mm |
25mm |
2G3E |
70g |
9,980* |
10,978 |
| TS-1-10A |
Pocket Micrometer 10x |
10x |
43mm |
48 to 55mm |
32mm |
25mm |
3E |
65g |
8,800 |
9,680 |
| TS-1-15 |
Pocket Micrometer 15x |
15x |
38mm |
25 to 30mm |
24mm |
7.52mm |
3G4E |
40g |
obsolete |
|
* This product will be obsolete once stock will be over. |
|
|

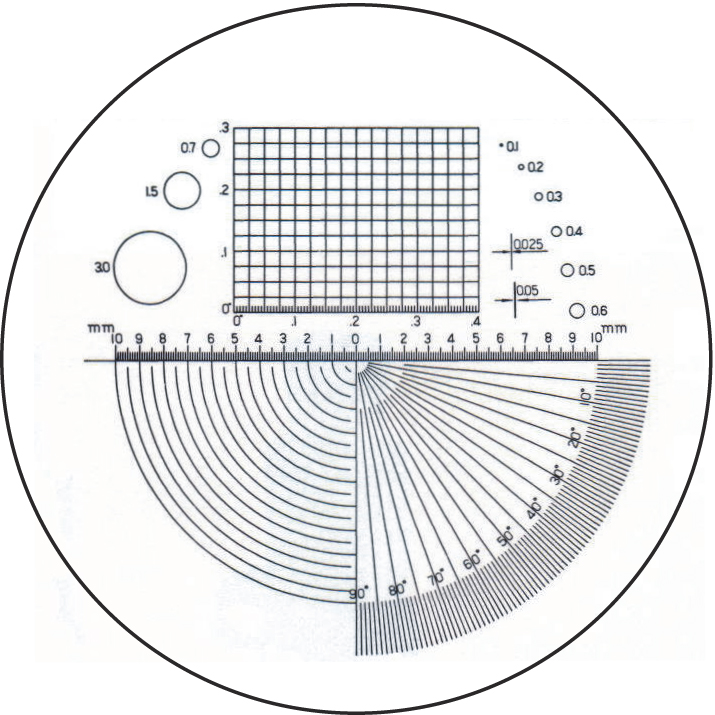

Dia., Graph, Angle & Radius
For TS-1-7/TS-1-10
Price : 1,500(w/o tax)
1,650(w/tax)
(only for oversea client) |
*

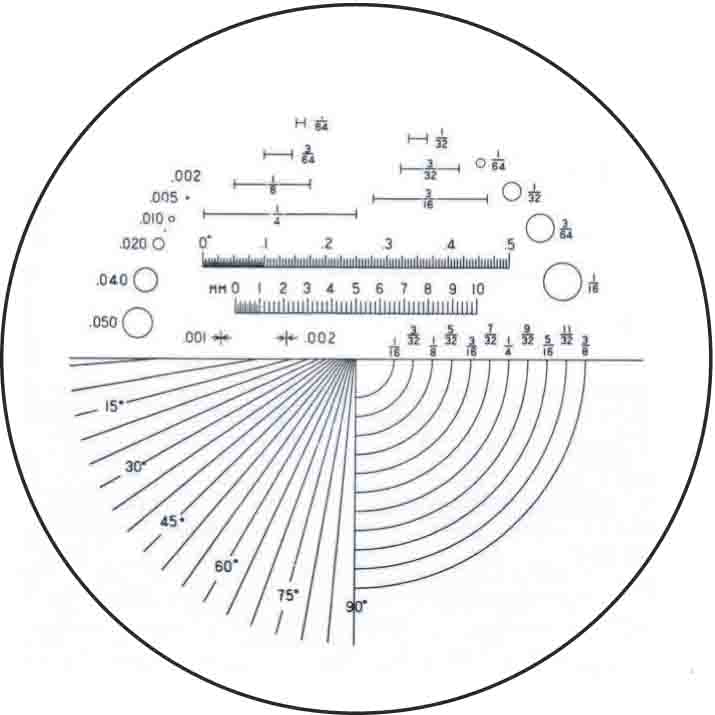

Dia., Scale, Angle & Radius
For TS-1-7/TS-1-10
Price : 1,500(w/o tax)
1,650(w/tax)
(only for oversea client) |
*

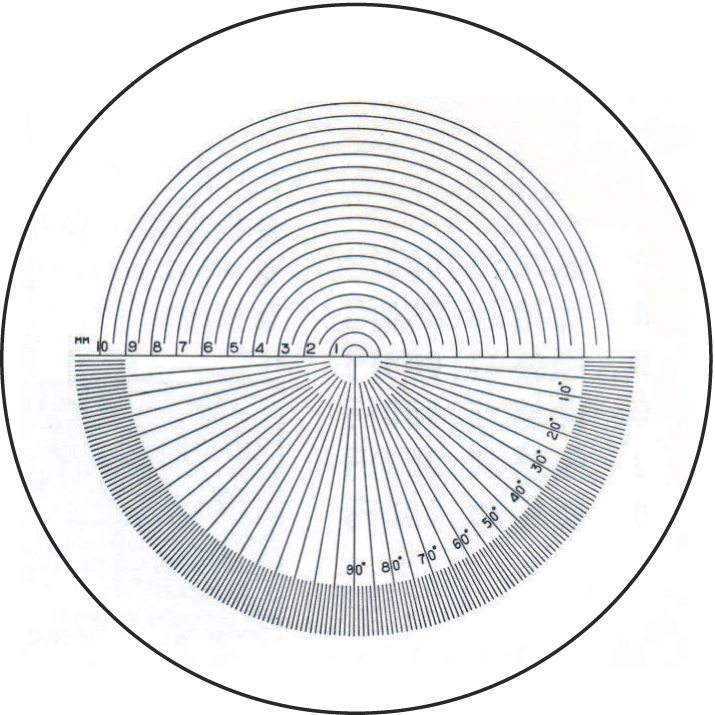

180°, Scale, Angle & Radius
For TS-1-7/TS-1-10
Price : 1,500(w/o tax)
1,650(w/tax)
|

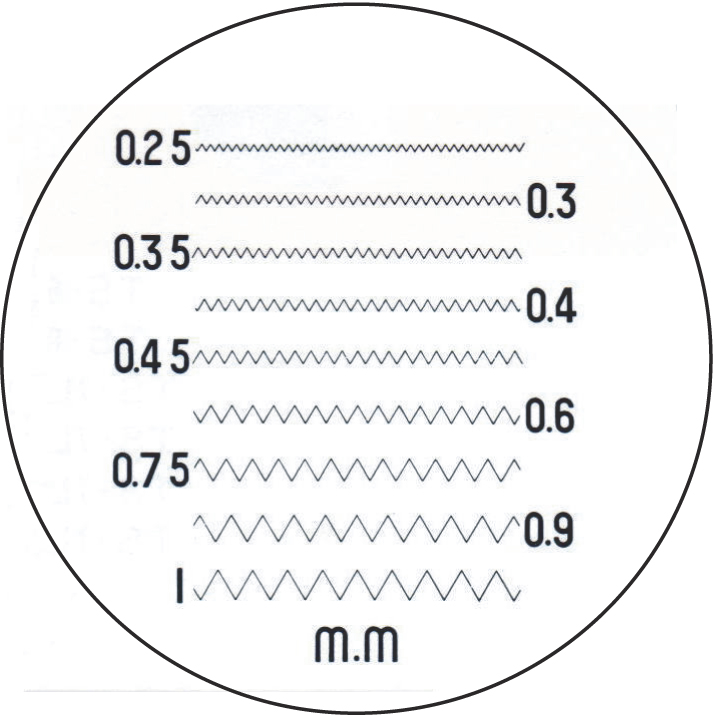

Screw Ridge (mm)
For TS-1-7/TS-1-10
Price : 1,500(w/o tax)
1,650(w/tax)
|
*

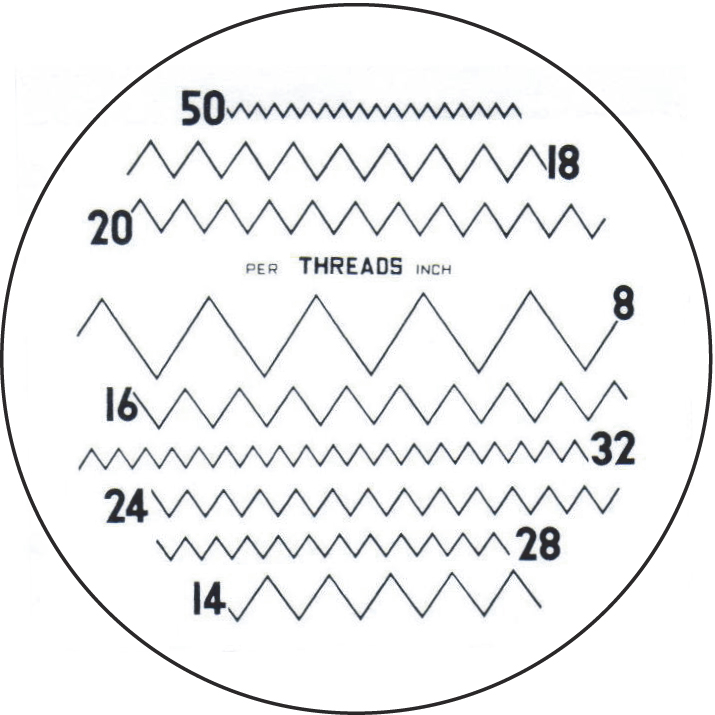

8 Inch Ridge - 50 mm Ridge
For TS-1-7/TS-1-10
Price : 1,500(w/o tax)
1,650(w/tax)
(only for oversea client) |
*

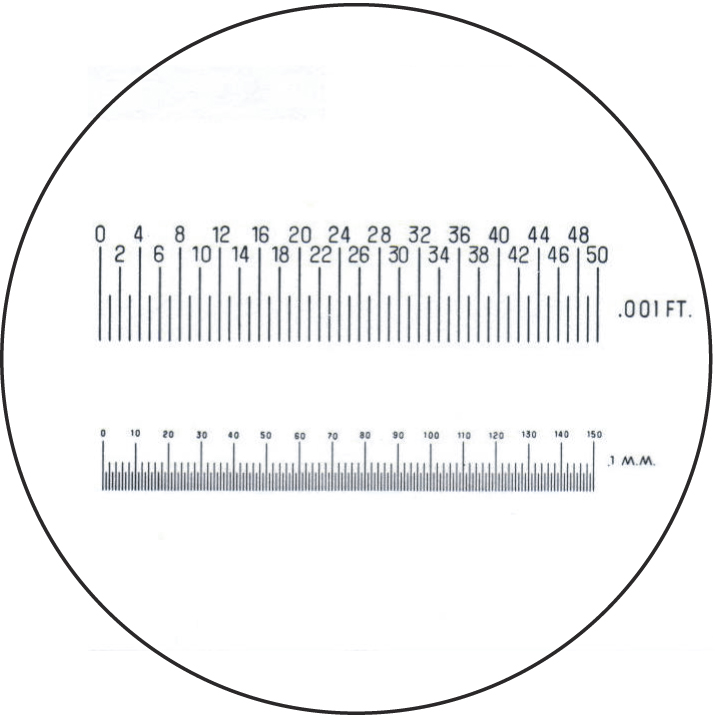

Scale. 0.1mm & 0.001ft
For TS-1-7/TS-1-10
Price : 1,500(w/o tax)
1,650(w/tax)
(only for oversea client) |
*

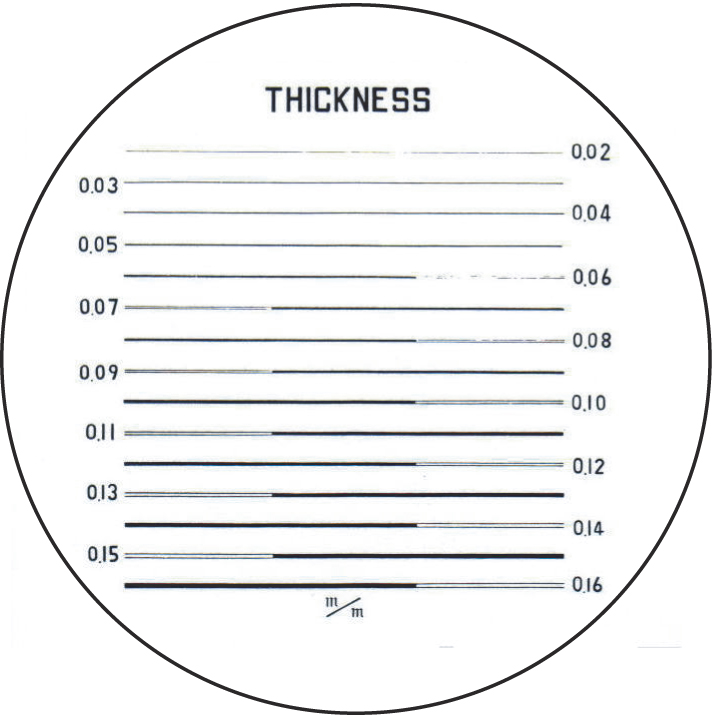

Thickness 0.02 - 0.16mm
For TS-1-7/TS-1-10
Price : 1,500(w/o tax)
1,650(w/tax)
|
*

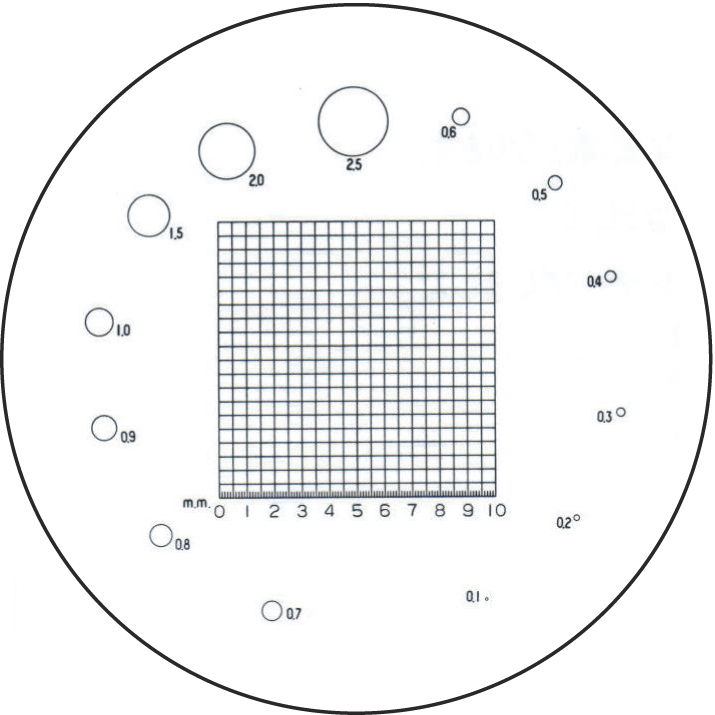

1mm Unit Square (10mm),
Circle Dia.0.1 -2.5mm
For TS-1-7/TS-1-10
Price : 1,500(w/o tax)
1,650(w/tax)
|
*

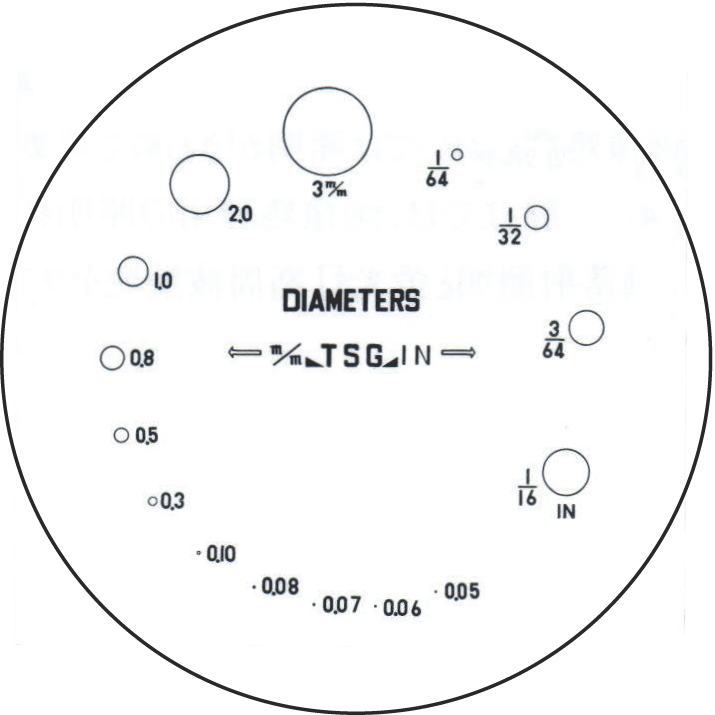

Circle Dia. 0.05 - 3.0mm
1/64" to 1/16"
For TS-1-7/TS-1-10
Price : 1,500(w/o tax)
1,650(w/tax)
(only for oversea client) |
*

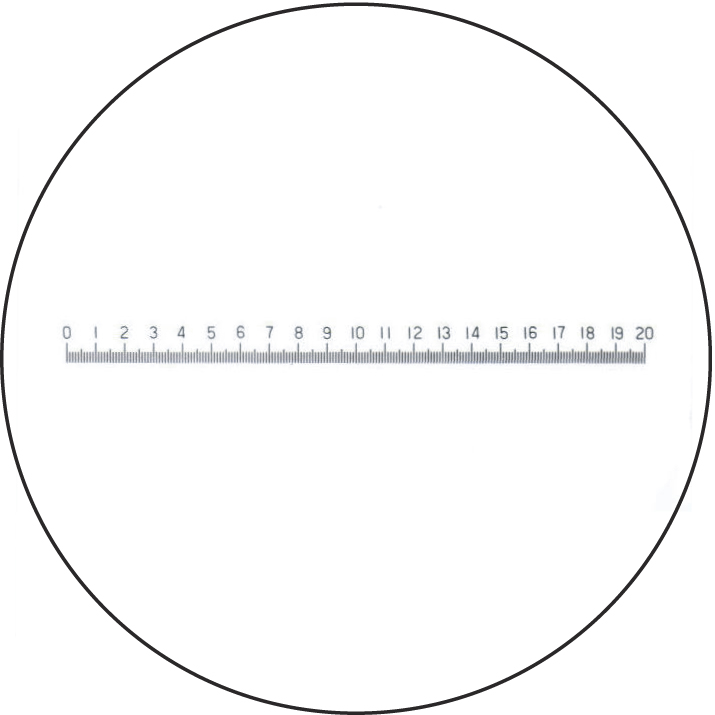

Scale 20mm
For TS-1-7/TS-1-10
Price : 1,500(w/o tax)
1,650(w/tax)
 |
*
Cross Scale
For TS-1-7/TS-1-10
Price : 1,200(w/o tax)
1,320(w/tax)
 |
*

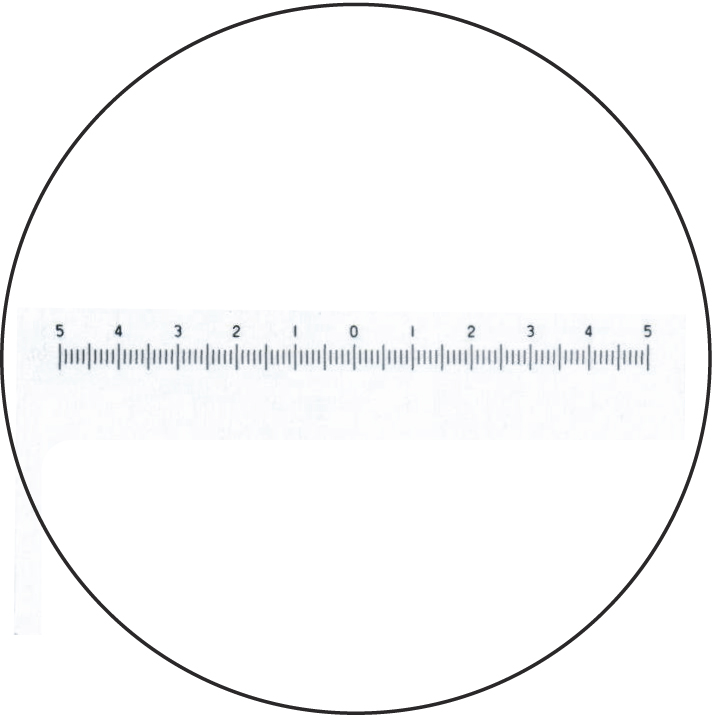

0.1mm interval Scare
*
0.05mm interval Scare
For TS-1-15
Price : 1,200(w/o tax)
1,320(w/tax)
will be obsolete once stock will be over |
Products marked with an asterisk (*) will be discontinued once current
stock is depleted. After discontinuation, scales will be available on a
made-to-order (custom) basis only.
|
|
