Accessories for Optical Lenses (C-Mount Series)
C-Mount size series
■TS-0189H
■TS-0190H		 Objective Lenses Revolver Holder (C-Mount)

 On Objective Lenses Barrel and Eyepieces Lenses Barrel, you can mount 3 or 4 kinds of different magnification Object Lenses (JIS Mount Size) and rotate those by Revolver Method. As connection point to other devices is C-Mount Size, it's possible to connect to various kind of mechanics.
P/N Description Number of Objective Lens to hold Connection Tap size(mm) Price w/o tax (JPY) Price w/tax
（JPY）
TS-0189H 3 holes revolver 3pcs M20.32 9,000  9,900
TS-0190H 4 holes revolver 4pcs M20.32 12,000  13,200

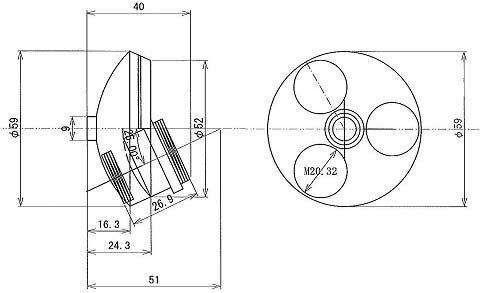

TS-0189H

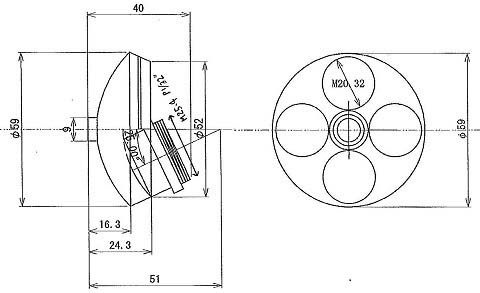

TS-0190H
