C-Mount size series |
|
|
|
By mounting Mirror Attachment Frame/Half Mirror Attachment Frame on Box Frame, you can reflect and transmit (Half Mirror only) Incident Rays/Real Image. By connecting C-Mount size Holder, you can prevent Dispersed light. We also have C-Mount size Cover. |
| P/N |
Description |
Outer dimension
(mm) |
Specification |
Weight
(g) |
Price w/o tax (JPY) |
Price w/tax
（JPY） |
| TS-0139H |
C-mount Box Frame |
35 x 35 x 35 |
Box Frame + Clasp |
50 |
12,000 |
13,200 |
| TS-0134H |
Half Mirror Attachment Frame |
22 x 22 x 22 |
With Half Mirror |
15 |
5,500 |
6,050 |
| TS-0135H |
Mirror Attachment Frame |
22 x 22 x 22 |
With Mirror |
15 |
5,500 |
6,050 |
| TS-0123H |
Cover for C-Mount |
Dia.28 x 1(4) |
Cap for C-Mount Size Window |
8 |
2,000 |
2,200 |
|
| ■Installation Drawing
|
■Mirror Installation Drawing

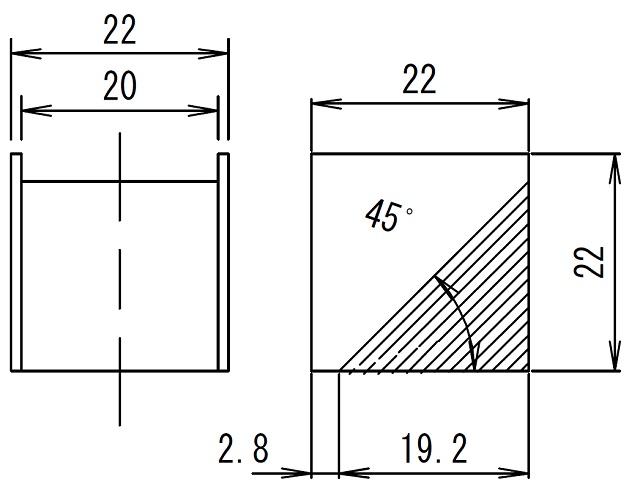

Install the mirror (18 x 28 x 21 mm) at a 45° of angle.
|
■Half Mirror Installation Drawing

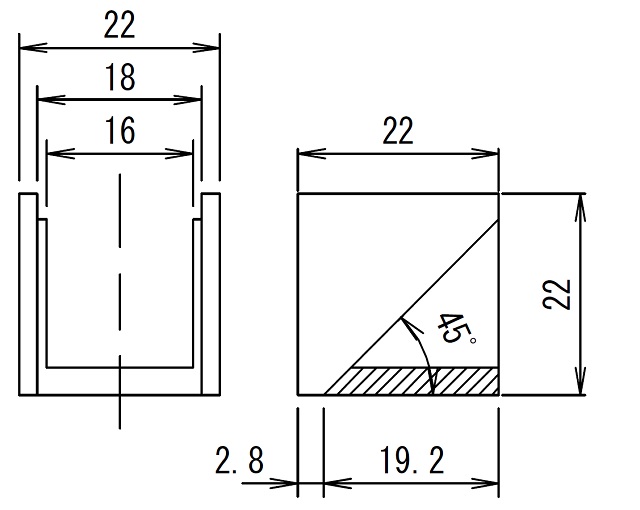

Install the half mirror （19×27×21mm） at a 45° of angle.
|

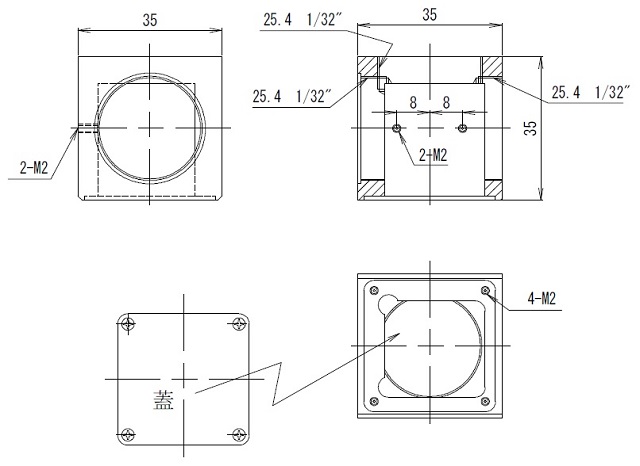

TS-0139H
TS-0134H
TS-0135H

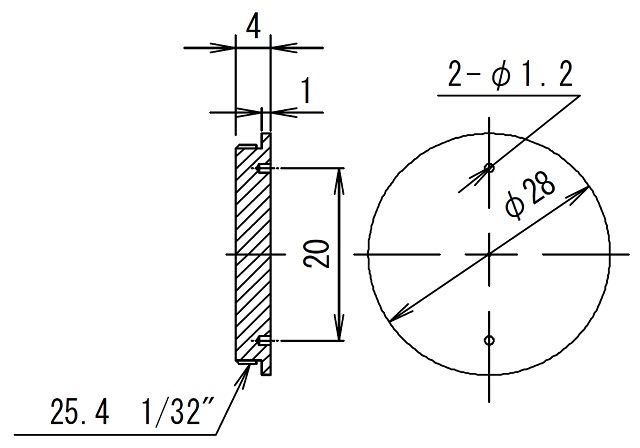

TS-0123H
|
