Accessories for Optical Lenses (C-Mount Series)
C-Mount size series
■TS-0130H
■TS-0129H
■TS-0128H		 Lens Holder for Thicker Lens  Lens Diameter: Dia.10/ Dia.15/ Dia.20mm

 Lens Holder for Thicker Lens is a Device to hold Lenses , Filters etc. After put in Lens etc., fix it up firmly by Screw Ring. There are 3 kinds of Inner Dia. by 10/15/20mm. Thickness of Lens can be accepted from 5.0mm to 10.0mm.
P/N Description Insert Lens Outer Dia.(mm) Outer Dia.
(mm)		 Length
(mm)		 Inner Dia.
(mm)		 Weight
(g)		 Price w/o tax (JPY) Price w/tax （JPY）
TS-0130H Lens Holder Dia.10 Dia.10 Dia.29
（Dia.30）		 14
（18）		 Dia.9.0 20.2 3,500  3,850
TS-0129H Lens Holder Dia.15 Dia.15 Dia.29
（Dia.30）		 14
（18）		 Dia.13.5 16.6 3,500  3,850
TS-0128H Lens Holder Dia.20 Dia.20 Dia.29
（Dia.30）		 14
（18）		 Dia.18.5 21.2 3,500  3,850

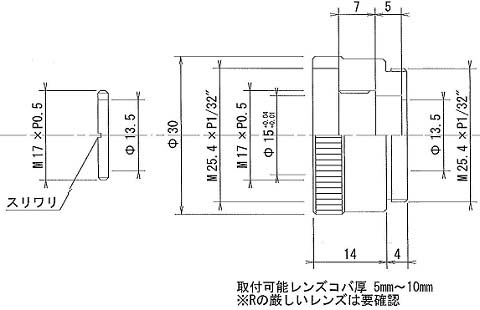

TS-0129H
