| SHOPD12 Series |
|
|
Large size Inclination Stand for industrial use, customizable from one
set !
|
 |
|

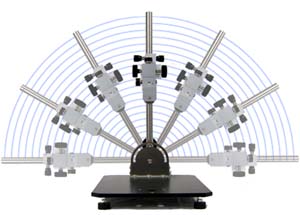

As Pole will incline 180 degree for left and right side,
you can observe from various angles.
 |

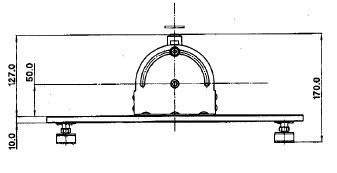

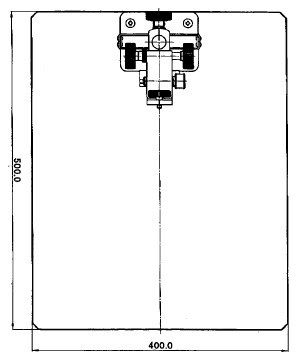

■ Stand Base (Pedestal) : W300 x D450 x H10(+Pedestal H30)
Material : Iron
■ Weight : 14.37kg
(when using XYZ Type & Pole length of 450mm)
 |
Selectable from 4 kinds of Rack & Pinion
(Camera mounting machinery)
| Rack & Pinion Variety |
写真 |
①Standard Type
Z axis movement (up and down): 43.1mm |
 |
②XYZ Type
Z axis (up and down):37.6mm
X axis (left and right):36.0mm
Y axis (back and forth):36.0mm |
 |
③XYZ Type(Y axis long distance movement)
Z axis (up and Down):37.6mm
X axis (right and left):36.0mm
Y axis (back and forth):86.0mm |
 |
④Z axis long distance moving Type
Z axis movement (up and down) : 70.0mm |
 |
|
|
|
|
You can choose from 3 kinds of Pole Length according to necessary W.D.
|
|
 |
■ Length of Pole ( from surface of Stand Base)
①300mm
②350mm
③450mm
■ Diameter of Pole : 22mm |
|
|
|
| P/N |
Pole |
Stand Base |
Rack & Pinion |
Price
(without tax) |
| Diameter |
Length |
Material |
Size |
No. |
Moving |
| SHOPD12-FA1-30 |
Dia.22mm |
300mm |
Iron |
W300xD450xH10mm
(+ Pedestal H30mm) |
① |
Z axis(up & down):43.1mm |
Yen98,000 |
| SHOPD12-FA1-35 |
350mm |
Yen100,400 |
| SHOPD12-FA1-45 |
450mm |
Yen102.800 |
| SHOPD12-FA2-30 |
Dia.22mm |
300mm |
Iron |
W300xD450xH10mm
(+ Pedestal H30mm) |
② |
Z axis(up & down):37.6mm
X axis(left & right):36.0mm
Y axis(back & force):36.0mm |
Yen120,000 |
| SHOPD12-FA2-35 |
350mm |
Yen122,400 |
| SHOPD12-FA2-45 |
450mm |
Yen124,800 |
| SHOPD12-FA3-30 |
Dia.22mm |
300mm |
Iron |
W300xD450xH10mm
(+ Pedestal H30mm) |
③ |
Z axis(up & down):37.6mm
X axis(left & right):36.0mm
Y axis(back & force):86.0mm |
Yen144,000 |
| SHOPD12-FA3-35 |
350mm |
Yen146,400円 |
| SHOPD12-FA3-45 |
450mm |
Yen148,800 |
| SHOPD12-FA4-30 |
Dia.22mm |
300mm |
Iron |
W300xD450xH10mm
(+ Pedestal H30mm) |
④ |
Z axis(up & down):70.0mm |
Yen102,000 |
| SHOPD12-FA4-35 |
350mm |
Yen104,400 |
| SHOPD12-FA4-45 |
450mm |
Yen106,800 |
|
 |
|
|
|
