TS-93001VS
Optical Mag.0.133 to 0.4x, WD200mm, C-Mount, supporting 1/2 inch to 1/4 inch sensor size
3x Zoom Ratio  Optical Magnification 0.133x to 0.4x  WD=200mm
We achieved low Mag. Macro system which enables from wide range shooting to zoom up.
Small size/Light weight/High versatility
The length is only 67.5mm so that it can be easily installed in the devices. With it's simple barrel by small and light weight, this macro zoom lens is high versatility.
By Front Converter, magnification will be controlled (option)
By adding Front Converter, magnification is able to goes up. (WD becomes shorter)
Substantial Peripheral Devices
We prepared substantial peripherals of Cameras, Illuminations, Auxiliary Lenses, Stands
Lenz specification
P/N TS-93001VS
Magnification range 0.133x - 0.4x
Zoom ratio 3.0x
WD 200mm (from edge of the Lens to object : 195.2mm+/-5%)
Mount C-Mount
Supporting CCD sensor size 1/2", 1/3", 1/4"
Optical magnification 0.133x 0.4x
Depth of field(mm) 16.9 1.9
Resolution at object side (TVL/mm) 8TVL 28TVL
Weight 55g

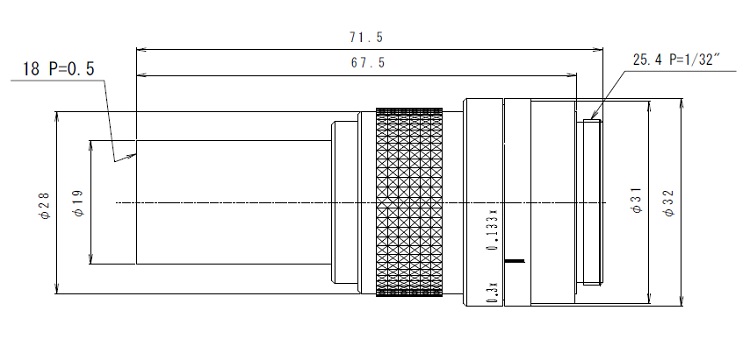

External dimension Dia.32 x 67.5+/-0.5mm
Price *Prices will be revised from April 1st, 2024  Yen70,000 -> Yen80,000*(w/o tax)
Yen77,000 -> Yen88,000*(w/ tax)

Magnification
Optical magnification 1/2" CCD/CMOS 1/3" CCD/CMOS 1/4" CCD/CMOS
Monitor Magnification Field of view Monitor Magnification Field of view Monitor Magnification Field of view
0.133x 6.33x 36.54mm x 48.72.mm 8.45x 27.40mm x 36.54mm 11.26x 20.55mm x 27.4mm
0.2x 9.53x 24.30mm x 32.40mm 12.7x 18.22mm x 24.30mm 16.93x 13.67mm x 18.22mm
0.3x 14.29x 16.20mm x 14.29mm 19.05x 12.15mm x 16.20mm 25.4x 9.11mm x 12.15mm
0.4x 19.05x 12.15mm x 16.20mm 25.4x 9.11mm x 12.15mm 33.87x 6.83mm x 9.11mm
Front converter (option)
P/N TS-FC1-2X TS-FC1-3X TS-FC1-4X TS-FC1-6X
Magnification 2x 3x 4x 6x
WD 95mm 55mm 35mm 23mm
Zoom ratio 0.26 to 0.8x 0.40 to 1.2x 0.64 to 1.61x 0.81 to 2.43x
Size Dia.19 x 7.5mm Dia.19 x 15.0mm Dia.19 x 15.0mm Dia.19 x 15.0mm
Mount size M25.4 P1/32 inch M25.4 P1/32 inch M25.4 P1/32 inch M25.4 P1/32 inch
Price Yen10,000(w/o tax)
Yen11,000 (w / tax)
Yen10,000(w/o tax)
Yen11,000 (w / tax)
Yen10,000(w/o tax)
Yen11,000 (w / tax)
Yen12,000(w/o tax)
Yen13,200 (w / tax)

Extender Lens (option)
Able to adjust magnification without changing W.D.(brightness will change) put at back side of (C-Mount) lens
P/N TS-EX-15 TS-EX-20 TS-EX-30 TS-EX-50
Description 1.5x Extender 2.0x Extender 3.0x Extender 5.0x Extender
Price Yen11,000(w/o tax)
Yen12,100 (w/tax)
Yen12,000(w/o tax)
Yen13,200 (w/tax)
Yen20,000(w/o tax)
Yen22,000 (w/tax)
Yen27,000(w/o tax)
Yen 29,700 (w/tax)
 Protect Filter (Optional)
TS-PF-01 18 P0.5 Protect Filter
This protect filter will be helpful to protect the lens from cust, dirt, chemicals etc. This protect filter is attachable for TS-93001VS as well as TS-93003NI or other products that have Dia.18 P0.5 mount sizes.
Product No. Description Coating Mount Weight
(g)
Price Price w/tax
TS-PF-01 18 P0.5 Protect Filter Multi-layer AR coating both surfaces 18 P0.5 Yen9,800  Yen10,780

  In-Line illumination barrel (Optional)
TS-93001-CU   In-Line illumination barrel for TS-93001VS
 In-Line Illumination will reflect Illumination light (Glass Fiber, LED, Tungsten Lamp etc.) which come from side direction of Barrel by Half Mirror, and Irradiate through Object Lens.
Can be use as Simplified In-Line Illumination Barrel for Macro Zoom Lens TS-93001VS
Product No. Description Price Price w/tax
TS-93001-CII In-Line illumination barrel for TS-93001VS OPEN

LED Illumination Set (option)
TS-LA-P8 Set(LED Illumination set dedicated to TS-930001VS/TS93003NI)

Price : Yen25,000(w/o tax) / Yen27,500 (w/ tax)

TS-LA-P8 LED Illumination dedicated to TS-930001VS/TS93003NI
TS-SP-LCC Battery Box with light controller dedicated to use for TS-LA-8P
