TS-P20XYZ/TS-P20Z/TS-P20ZZ/TS-P22Z/TS-0144NH/TS-0147NH/TS-0151NH/TS-0170NHe
Height of Pole : 330mm (from the surface of stand base)/
Diameter of Pole : 20mm
Stand Base : W 145mm x D 185mm x H 25
Movement System : Rack & Pinion
X axis stroke : Right and left +/-17mm, Y axis : 12mm forward/18mm backward, Z axis : 23mm upward/12mm downward
Adapting fall prevention ring
Base Plate : Supporting Dia.100mm, black and white color circular plate

Price : Yen64,900(without tax)
Height of Pole : 330mm (from the surface of stand base)/
Diameter of Pole : 20mm
Stand Base : W 145mm x D 185mm x H 25
Movement System : Rack & Pinion
Z axis stroke : 23mm upward/12mm downward
Adapting fall prevention ring
Base Plate : Supporting Dia.100mm, black and white color circular plate

Price : Yen40,900(without tax)
Height of Pole : 330mm (from the surface of stand base)/
Diameter of Pole : 20mm
Stand Base : W 145mm x D 185mm x H 25
Movement System : Rack & Pinion
Z axis coarse movement : 23mm upward12mm downward, Z axis fine movement : 3.3mm per rotation
Adapting fall prevention ring
Base Plate : Supporting Dia.100mm, black and white color circular plate

Price : Yen64,900(without tax)
Height of Pole : 300mm (from the surface of stand base)/
Diameter of Pole : 22mm
Stand Base : W 200mm x D 213mm x H 20
Movement System : Rack & Pinion
Z axis stroke : 41.6mm upward/1.5mm downward
Adapting fall prevention ring
Base Plate : Supporting Dia.80mm circular plate
Price : Yen28,000(without tax)
Height of Pole : 340mm (from the surface of stand base)/
Diameter of Pole : 20mm
Stand Base : W 140mm x D 200mm
Weight : 3.26kg
Movement System : Mounting Z axis Rack & Pinion (Fine and Coarse type) TS-RP-6(S)
Adapting fall prevention ring
Base Plate : Supporting Dia.100mm
Price : Yen69,000(without tax)
will be obsolete once stock will be over
Height of Pole : 250mm (from the surface of stand base)/
Diameter of Pole : 20mm
Stand Base : W 178mm x D 135mm
Weight : 1.6kg
Movement System : Mounting Z axis Standard Rack & Pinion TS-RP-8
Adapting fall prevention ring
Base Plate : Supporting Dia.100mm
Price : Obsolete

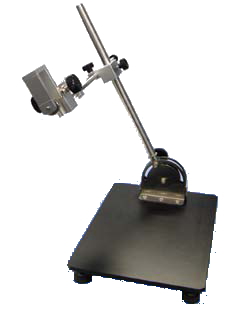

H‹Æ—pŒXŽÎƒJƒƒ‰ƒXƒ^ƒ“ƒh
Length of Pole : ‡@300mm@‡A350mm@‡B450mm (from surface of Stand Base)/Diameter of Pole : 22mm
Stand Base (Pedestal) : W300 x D450 x H10(+Leg H30) Material : Iron
Weight (when using XYZ Type & Pole length 450) : Around 14.37kg
Rack and Pinion Moving Method(mm)
@@‡@Standard Type
@@@  Z axis movement (up and down): 43.1
@@‡AXYZ Type
@@@@Z axis (up and Down):37.6/X axis(right and left):36.0/Y axis(back and forth):36.0
@@‡BXYZ Type(Y axis long distance movement)@
@@@@Z axis (up and Down):37.6/X axis(right and left):36.0/Y axis(back and forth):86.0
@@‡CZ axis long distance moving Type
@@@@Z axis movement (up and down) : 70.0

Able to customize according to customer's requirements.
Height of Pole : 340mm (from the surface of stand base)/
Diameter of Pole : 20mm
Stand Base : W 153mm x D 233mm
Weight : 4.86kg
Movement System : Mounting Z axis Rack & Pinion(Fine and Coarse type) TS-RP-X
Adapting fall prevention ring
Base Plate : Supporting Dia.100mm
Adapting transmitted illumination (Halogen)
obsolete
Height of Pole : 500mm (from the surface of stand base)/
Diameter of Pole : 26mm
Stand Base : W 210mm x D 300mm
Weight : 14.6kg
Movement System : Mounting Z axis Rack & Pinion(Fine and Coarse type) TS-RP-X(L)
Adapting Vibration Proof Base
obsolete ¨ Made to order (please contact us)
Length of Vertical Pole : 500mm (from the surface of stand base)/
Diameter of Pole : 26mm
Length of Horizontal Pole : 200mm (from the surface of stand base)/Diameter of Pole : 20mm
Stand Base : W 178mm x D 450mm
Weight : 12.5kg
Movement System : Mounting Z axis Rack & Pinion(Fine and Coarse type) TS-RP-6(S)
Adapting XY Stage TS-XY-300
obsolete ¨ Made to order (please contact us)
